AST 5100 Coilovers - BMW E90 / E92 M3
AST 5100 Coilovers - BMW E90 / E92 M3

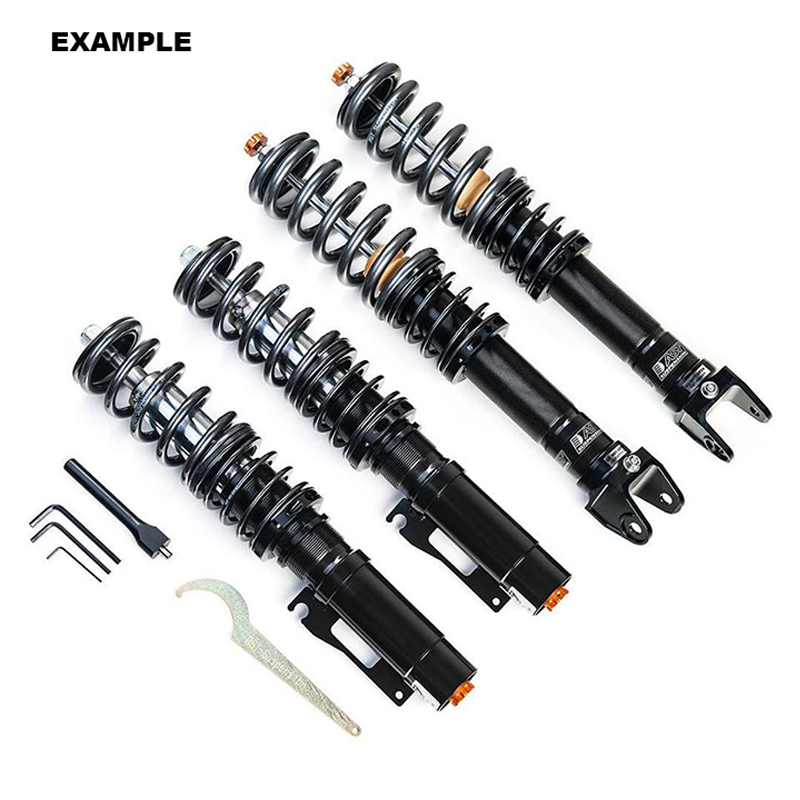

AST 5100 Coilovers - BMW E90 / E92 M3 are a vehicle-specific 1.5-way adjustable suspension package for the E9X M3 platform. Compression and rebound characteristics are controlled together through a single 12-position adjuster, with an inverted monotube design for consistent fast-road and track performance.
Key features
- 1.5-way combined compression and rebound adjustment

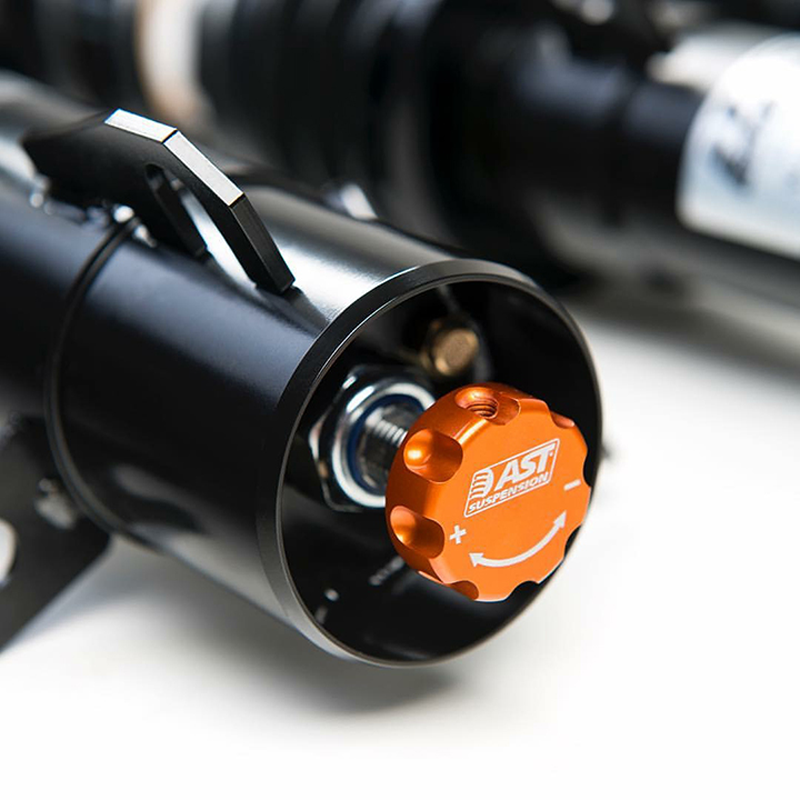

- 12-position damper adjustment
- Gas-pressurised monotube construction
- Inverted strut design

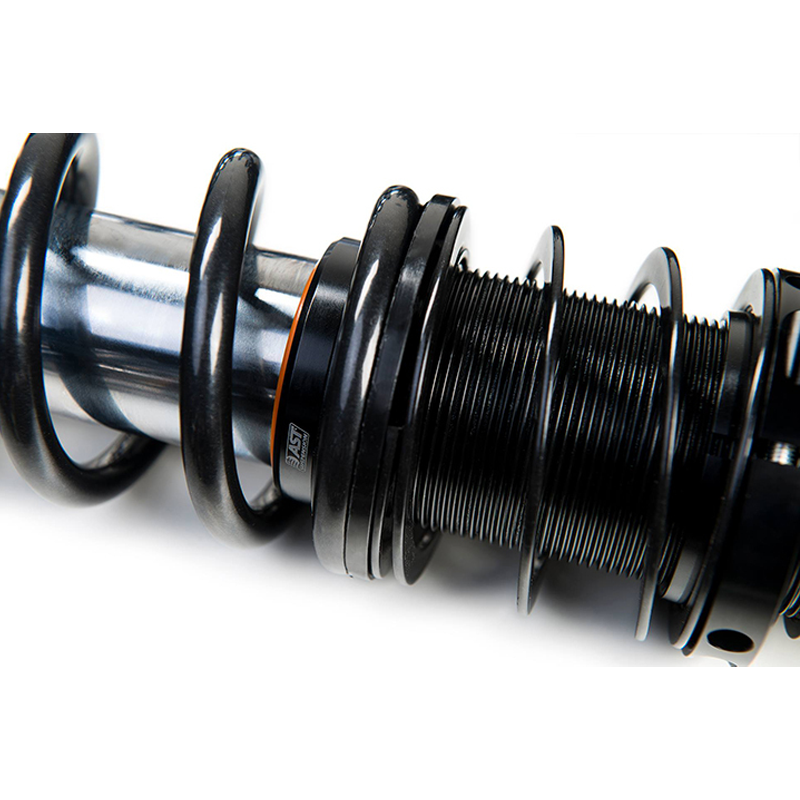

- Fully ride-height adjustable
- Springs included
- OEM top-mount, adjustable front top-mount and front/rear top-mount configurations available
Fitment: BMW E90 M3 Sedan and BMW E92 M3 Coupe.
EDC: Cars fitted with BMW Electronic Damper Control require the EDC-cancellation-kit configuration.
Lead time: Made to order — allow 3–5 weeks.
Professional installation, ride-height setup and a performance wheel alignment are recommended.
Supplier
AST
Product System
- Suspension & Brakes
Vehicle Fitment
- BMW 3 Series E90 chassis
- BMW 3 Series E92 chassis
Confirm chassis, engine, drivetrain and production-year compatibility before ordering.
Available Options
Kit Configuration
- AST 5100
- AST 5100 with KW EDC Cancellation Kit
- AST 5100 with Adjustable Front Top Mounts
- AST 5100 with Adjustable Front Top Mounts and KW EDC Cancellation Kit
- AST 5100 with Front and Rear Top Mounts
- AST 5100 with Front and Rear Top Mounts and KW EDC Cancellation Kit
Supplier Part Numbers
AST-E9X-5100, AST-E9X-5100-EDC, AST-E9X-5100-FTM, AST-E9X-5100-FTM-EDC, AST-E9X-5100-FRTM, AST-E9X-5100-FRTM-EDC
Built by Boost & Tune Support
BBT can assist with fitment review, installation, supporting modifications, configuration and calibration requirements where applicable.
