AST 5300 Coilovers - BMW F80 M3 / F82 M4
AST 5300 Coilovers - BMW F80 M3 / F82 M4

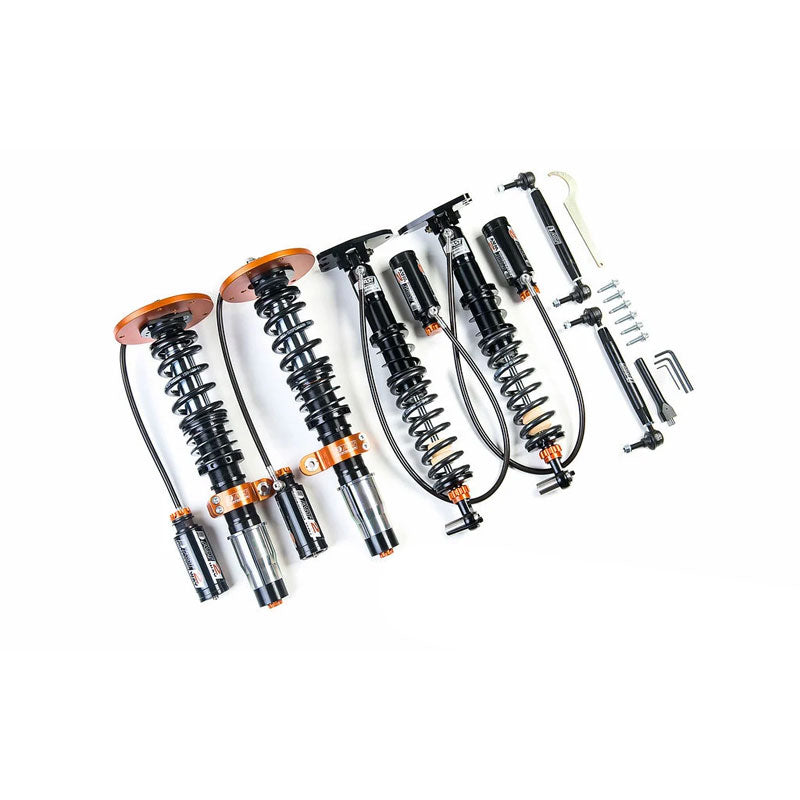

AST 5300 Coilovers - BMW F80 M3 / F82 M4 is a vehicle-specific AST 5300 competition-oriented suspension package for BMW F80 M3 and BMW F82 M4. The 5300 provides independent rebound, low-speed compression and high-speed compression adjustment for detailed chassis tuning.
Key features
- 3-way independently adjustable damping
- 12-position rebound adjustment
- 14-position low-speed compression adjustment
- 12-position high-speed compression adjustment
- Remote reservoirs for heat control and increased fluid capacity
- Inverted strut design and high-strength damper architecture
- AST motorsport top mounts for camber control
- True rear coilover configuration on applicable M-car kits
- Fully ride-height adjustable, serviceable and rebuildable
Configuration: Select standard or KW EDC-cancellation configuration, then Pre-LCI or LCI.
Vehicle fitment: BMW F80 M3 and BMW F82 M4.
EDC note: Vehicles fitted with BMW Electronic Damper Control require the appropriate cancellation-kit option where offered.
Lead time: Made to order — allow 3–5 weeks.
Professional installation, corner weighting and a performance wheel alignment are recommended.
Supplier
AST
Product System
- Suspension & Brakes
Available Options
Kit Configuration
- AST 5300
- AST 5300 with KW EDC Cancellation Kit
Model
- Pre-LCI
- LCI
Supplier Part Numbers
AST-F8X-5300-PRE, AST-F8X-5300-LCI, AST-F8X-5300-EDC-PRE, AST-F8X-5300-EDC-LCI
Built by Boost & Tune Support
BBT can assist with fitment review, installation, supporting modifications, configuration and calibration requirements where applicable.
