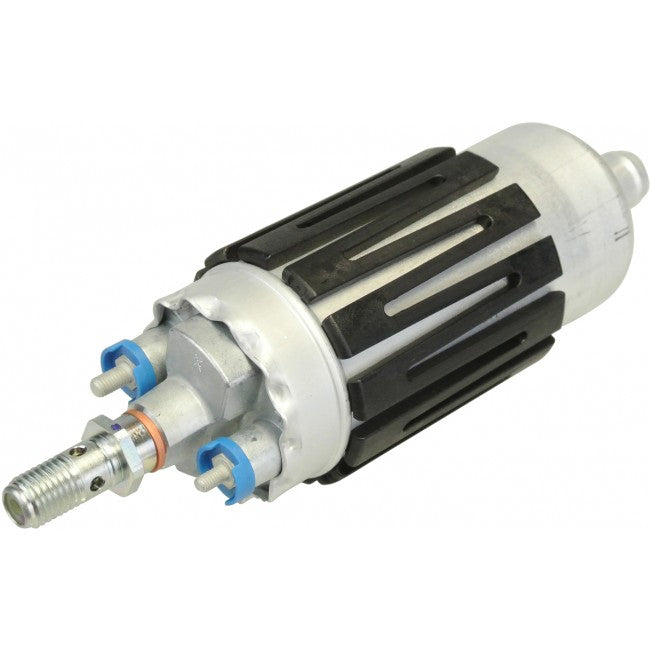

Bosch 0 580 254 910 External Fuel Pump
$188.65
Bosch 0 580 254 910 External Fuel Pump
External Bosch EFI fuel pump suited to pressure-fed fuel-system installations.
Specifications
- Flow: approximately 130 L/h at 5 bar
- Length: 203 mm
- Maximum diameter: 60 mm
- Electrical connection: M4/M5 terminals
- Outlet: M12 × 1.5
- Check valve fitted at outlet
Installation note
If the factory outlet check valve is removed for a direct adaptor, install an appropriate external check valve to retain line pressure.
Fuel-system design
Fuel-pump flow changes substantially with system pressure and voltage. Size the pump using the actual base pressure, boost-referenced pressure where applicable, fuel type and expected engine demand rather than free-flow numbers alone.
Installation requirements
Verify wiring/current capacity, hose and seal fuel compatibility, filtration, pickup arrangement, regulator capacity and tank/external mounting requirements before installation.
