Carrillo Alloy Nissan RB30 Conrods - Special

Please Note: These conrods use a 22mm pin

• CARRILLO ALLOY RODS
• Features Included:
• Rods Available off the shelf
• Fully Machined Forgings
• Rods come standard with H7AL-1 Bolts
• Floating bolt washers to achieve consistent bolt stretch
• Pocketed to reduce weight

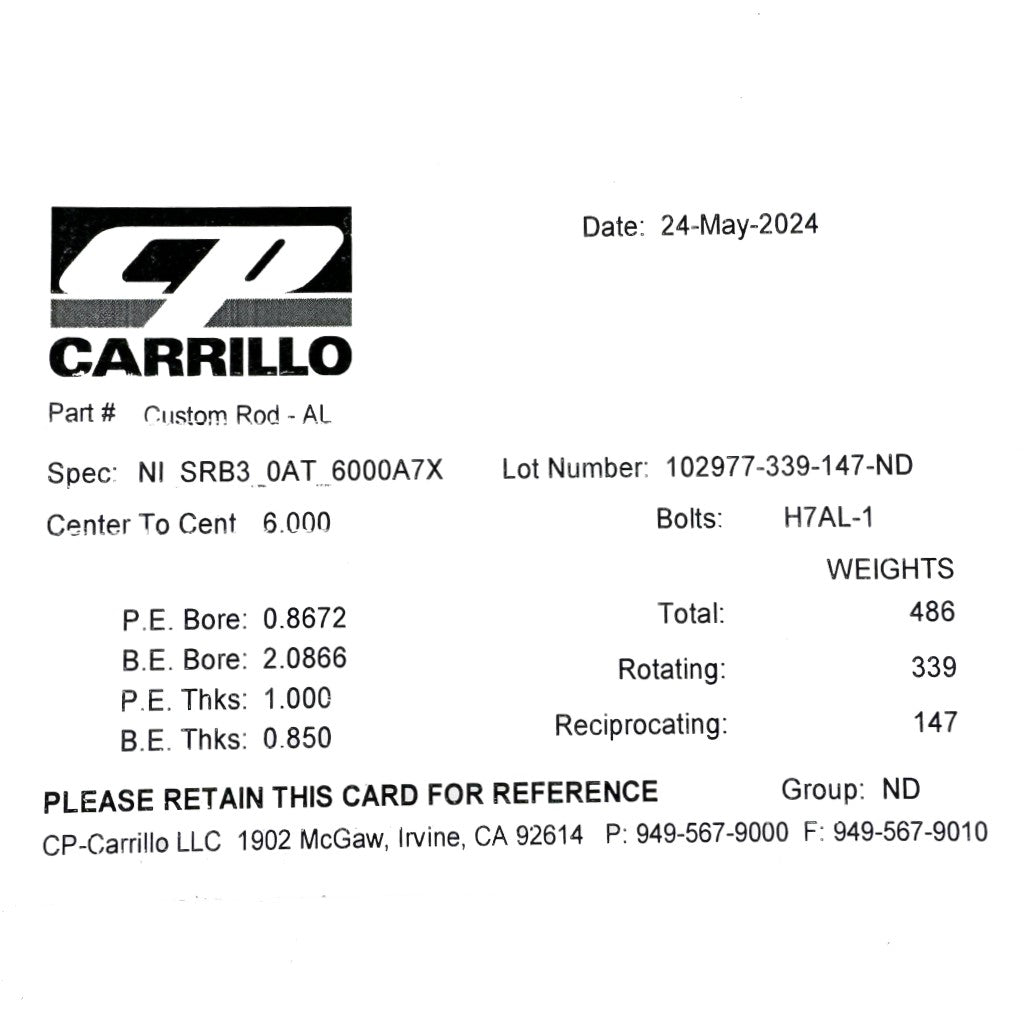

• Total Weight 486 grams
• Rotating Weight 339 grams
• Reciprocating Weight 147 grams
• Centre to Centre 6.000"  152.4mm
• PE Bore 0.8672"   22mm
• BE Bore 2.0866"   53mm
• PE Thks 1.000"     25.4mm
• BE Thks 0.850"     21.59mm
• USA made

These conrods are from a cancelled order. We had 4 sets available. Once sold thye will not be available again at this price and will take 16 weeks to get made.

Available options

• ACL Race Conrod Bearings: No ACL Bearings; HX-STD (Adds 0.001” Extra Clearance); STD; +0.025mm; +0.25mm; +0.50mm

Engine build fitment

RB30. Match the selected dimensions, engine generation and rotating assembly specification before machining or assembly.

Installation and BBT workshop support

Confirm centre-to-centre length, journal dimensions, pin diameter and bolt clearance. Use the fastener manufacturer’s instructions for lubricant, tightening and stretch measurements.

Built by Boost & Tune is an authorised Spool Imports dealer and can assist with component selection, engine assembly and tuning requirements for your build.
