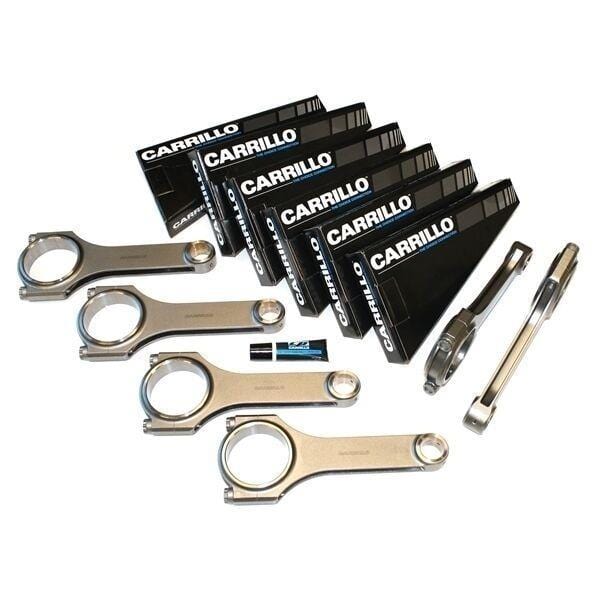

Carrillo Conrods for 10 cyl Lamborghini Gallardo & Huracan / Audi R8 5.2L V10 ( LM-5.2V10<-8M6063S )
Carrillo Conrods for 10 cyl Lamborghini Gallardo & Huracan / Audi R8 5.2L V10 ( LM-5.2V10<-8M6063S )
|
Make |
Lamborghini |
|
Model Engine Code |
5.2L |
|
New Part Number |
SCR7509 |
|
Old Part Number |
LM-5.2v10<-8M6063 |
|
Centre to Centre (in) |
6.063 |
|
Centre to Centre (mm) |
154 |
|
Style |
PRO-H |
|
Bolt Size |
8mm |
|
Bolt Type |
CARR |
|
Pin Width (in) |
0.756 |
|
Pin Width (mm) |
19.2 |
|
Big End Width (in) |
0.854 |
|
Bigh End Width (mm) |
19.15 |
|
Big End Bore (in) |
2.2362 |
|
Big End Bore (mm) |
56.799 |
|
Pin Bore |
20mm |
|
Total/Rotate/Receip (grams) |
520 / 355 / 165 |
|
FN |
S |
|
Cylinders |
10 |
Manufactured from USA made oversized proprietary steel forgings to enable proper grain flow and guarantee removal of any surface inclusions, CP-Carrillo ensures strength and durability of each Carrillo rod. Consistent and reliable from the first point of precision manufacturing all the way to extreme uses in racing world, exclusive Carrillo H beam and Pro (S)A designs offer the highest strength-to-weight ratio; Custom designed fasteners; 100 traceability; multi-step final inspection; CP-Carrillo moly based fastener lubrication included.
Engine build fitment
R8 / S6 5.2L [C6]|Gallardo / Huracan 5.2L. Match the selected dimensions, engine generation and rotating assembly specification before machining or assembly.
Installation and BBT workshop support
Confirm centre-to-centre length, journal dimensions, pin diameter and bolt clearance. Use the fastener manufacturer’s instructions for lubricant, tightening and stretch measurements.
Built by Boost & Tune is an authorised Spool Imports dealer and can assist with component selection, engine assembly and tuning requirements for your build.
