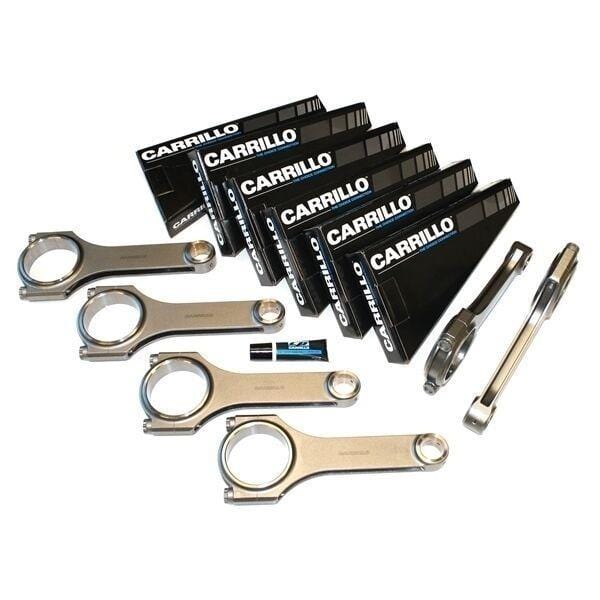

Carrillo Conrods for 4 cyl GM 2.0L Ecotec LSJ Pro-H 3/8 (GM-LSJ>-65728S )
Carrillo Conrods for 4 cyl GM 2.0L Ecotec LSJ Pro-H 3/8 (GM-LSJ>-65728S )
|
Make |
GM |
|
Model Engine Code |
Ecotec 2.0 Super Charged (LSJ) '04-09 |
|
New Part Number |
SCR5361 |
|
Old Part Number |
GM-LSJ>-65728S |
|
Centre to Centre (in) |
5.728 |
|
Centre to Centre (mm) |
145.5 |
|
Style |
PRO-H |
|
Bolt Size |
3/8 |
|
Bolt Type |
CARR |
|
Pin Width (in) |
0.945 |
|
Pin Width (mm) |
24 |
|
Big End Width (in) |
0.945 |
|
Bigh End Width (mm) |
24 |
|
Big End Bore (in) |
2.0522 |
|
Big End Bore (mm) |
52.125 |
|
Pin Bore |
23mm |
|
Total/Rotate/Receip (grams) |
553 / 386 / 167 |
|
FN |
S |
|
Cylinders |
4 |
Manufactured from USA made oversized proprietary steel forgings to enable proper grain flow and guarantee removal of any surface inclusions, CP-Carrillo ensures strength and durability of each Carrillo rod. Consistent and reliable from the first point of precision manufacturing all the way to extreme uses in racing world, exclusive Carrillo H beam and Pro (S)A designs offer the highest strength-to-weight ratio; Custom designed fasteners; 100 traceability; multi-step final inspection; CP-Carrillo moly based fastener lubrication included.
Engine build fitment
Ecotec 2.0 Super Charge [LSJ]. Match the selected dimensions, engine generation and rotating assembly specification before machining or assembly.
Installation and BBT workshop support
Confirm centre-to-centre length, journal dimensions, pin diameter and bolt clearance. Use the fastener manufacturer’s instructions for lubricant, tightening and stretch measurements.
Built by Boost & Tune is an authorised Spool Imports dealer and can assist with component selection, engine assembly and tuning requirements for your build.
