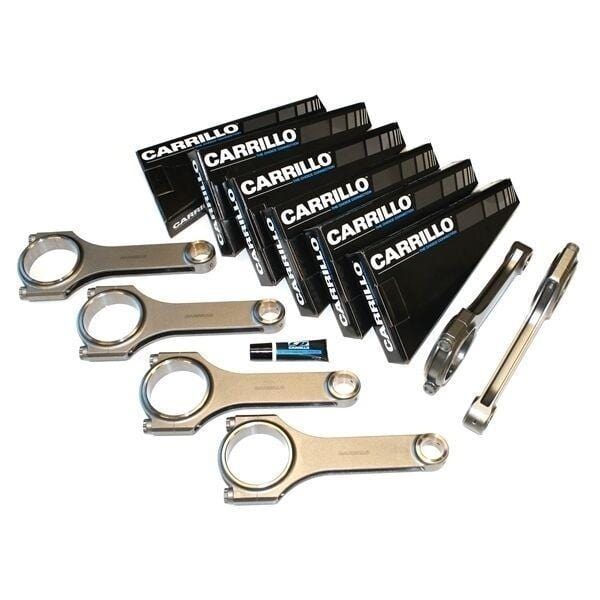

Carrillo Conrods for 6 cyl BMW M52 / M54 Pro-H 3/8 ( BM-M52>-65709H )
Carrillo Conrods for 6 cyl BMW M52 / M54 Pro-H 3/8 ( BM-M52>-65709H )
|
Make |
BMW |
|
Model Engine Code |
M52 / M54 |
|
New Part Number |
SCR5152 |
|
Old Part Number |
BM-M52>-65709H |
|
Centre to Centre (in) |
5.709 |
|
Centre to Centre (mm) |
145 |
|
Style |
PRO-H |
|
Bolt Size |
3/8 |
|
Bolt Type |
WMC |
|
Pin Width (in) |
0.862 |
|
Pin Width (mm) |
21.89 |
|
Big End Width (in) |
0.862 |
|
Bigh End Width (mm) |
21.89 |
|
Big End Bore (in) |
1.8898 |
|
Big End Bore (mm) |
48.001 |
|
Pin Bore |
22mm |
|
Total/Rotate/Receip (grams) |
511 / 352 / 159 |
|
FN |
H |
|
Cylinders |
6 |
Manufactured from USA made oversized proprietary steel forgings to enable proper grain flow and guarantee removal of any surface inclusions, CP-Carrillo ensures strength and durability of each Carrillo rod. Consistent and reliable from the first point of precision manufacturing all the way to extreme uses in racing world, exclusive Carrillo H beam and Pro (S)A designs offer the highest strength-to-weight ratio; Custom designed fasteners; 100 traceability; multi-step final inspection; CP-Carrillo moly based fastener lubrication included.
Engine build fitment
M52B32 - S52B32 |M54B30 - S52B30. Match the selected dimensions, engine generation and rotating assembly specification before machining or assembly.
Installation and BBT workshop support
Confirm centre-to-centre length, journal dimensions, pin diameter and bolt clearance. Use the fastener manufacturer’s instructions for lubricant, tightening and stretch measurements.
Built by Boost & Tune is an authorised Spool Imports dealer and can assist with component selection, engine assembly and tuning requirements for your build.
