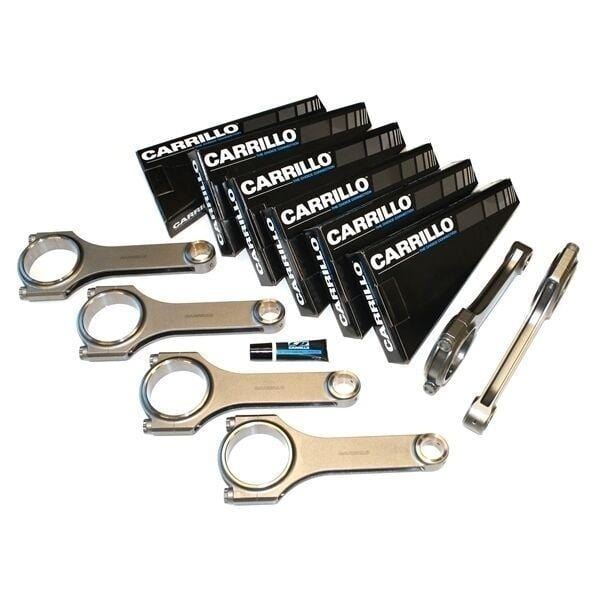

Carrillo Conrods for 6 cyl BMW S54B32 Pro-H 3/8 ( BM-S54>-65472S )
Carrillo Conrods for 6 cyl BMW S54B32 Pro-H 3/8 ( BM-S54>-65472S )
|
Make |
BMW |
|
Model Engine Code |
S54B32 |
|
New Part Number |
SCR5163 |
|
Old Part Number |
BM-S54>-65472S |
|
Centre to Centre (in) |
5.472 |
|
Centre to Centre (mm) |
139 |
|
Style |
PRO-H |
|
Bolt Size |
3/8 |
|
Bolt Type |
CARR |
|
Pin Width (in) |
0.784 |
|
Pin Width (mm) |
19.91 |
|
Big End Width (in) |
0.784 |
|
Bigh End Width (mm) |
19.91 |
|
Big End Bore (in) |
2.0866 |
|
Big End Bore (mm) |
53 |
|
Pin Bore |
21mm |
|
Total/Rotate/Receip (grams) |
499 / 351 / 148 |
|
FN |
S |
|
Cylinders |
6 |
Manufactured from USA made oversized proprietary steel forgings to enable proper grain flow and guarantee removal of any surface inclusions, CP-Carrillo ensures strength and durability of each Carrillo rod. Consistent and reliable from the first point of precision manufacturing all the way to extreme uses in racing world, exclusive Carrillo H beam and Pro (S)A designs offer the highest strength-to-weight ratio; Custom designed fasteners; 100 traceability; multi-step final inspection; CP-Carrillo moly based fastener lubrication included.
Engine build fitment
S54B32. Match the selected dimensions, engine generation and rotating assembly specification before machining or assembly.
Installation and BBT workshop support
Confirm centre-to-centre length, journal dimensions, pin diameter and bolt clearance. Use the fastener manufacturer’s instructions for lubricant, tightening and stretch measurements.
Built by Boost & Tune is an authorised Spool Imports dealer and can assist with component selection, engine assembly and tuning requirements for your build.
