JDY Performance Street Dominator Full Frame Turbo Kit for Audi

JDY Performance Street Dominator Full Frame Turbo Kit for Audi 2.5TFSI - DAZ/DNW, RS3 8V/8Y, TTRS 8S, RSQ3 F3

$11,200.00

Race Proven Worldwide!

JDY Performance Street Dominator 1000hp Full-Frame Turbo Kit is capable of making big power on your RS3/TTRS/RSQ3.

Precision T3 sized turbos offers the highest performance with fast response, it's the best for street/daily applications ! it will maaximize the power when the car is used also for daily when spool is IMPORTANT!

Our kit utilizes only the best quality components to ensure your engine makes reliable power all day every day.
Control boost with a Precision 46mm External Wastegate including all springs so you can tailor it to your setup!

Our Turbo kit includes everything you need to get your car up and running with no additional hardware or fabrication required!

This kit fits both Left Hand-Drive and Right-Hand Drive vehicles.

NEW features:

Stainless steel manifold heat shield

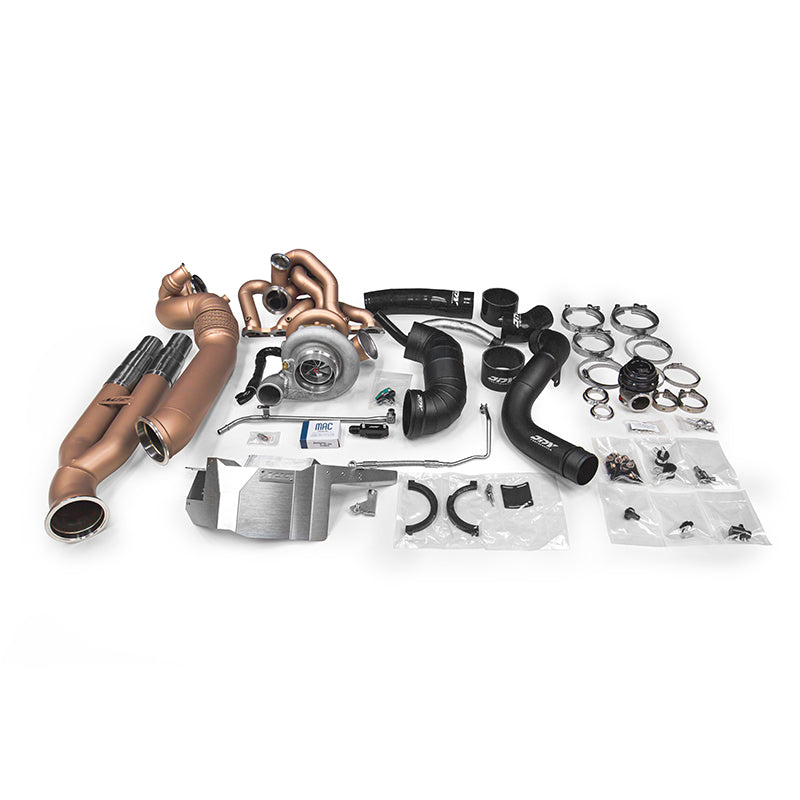

Kit Includes:

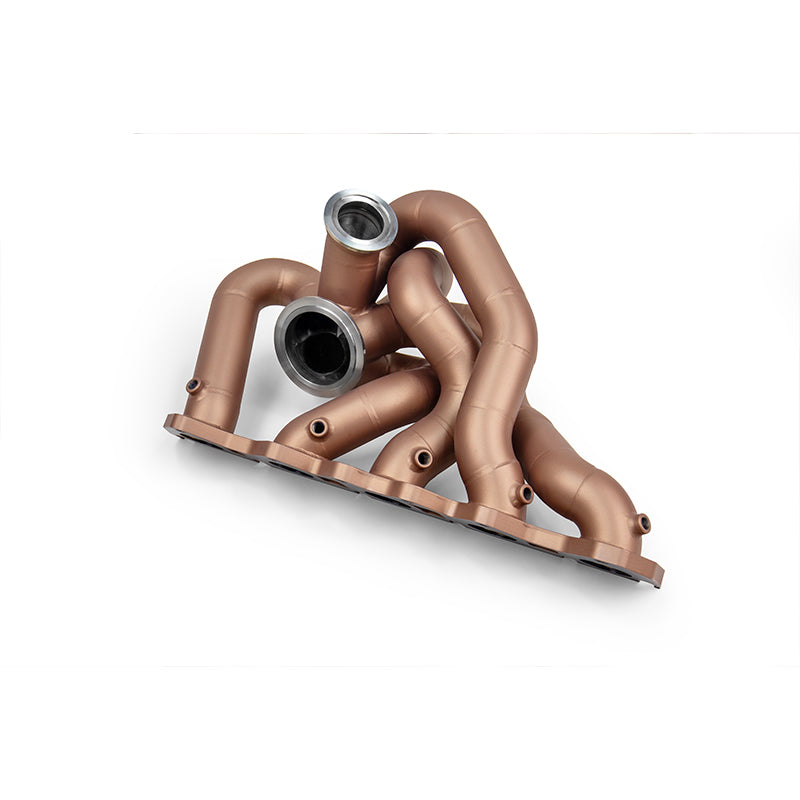

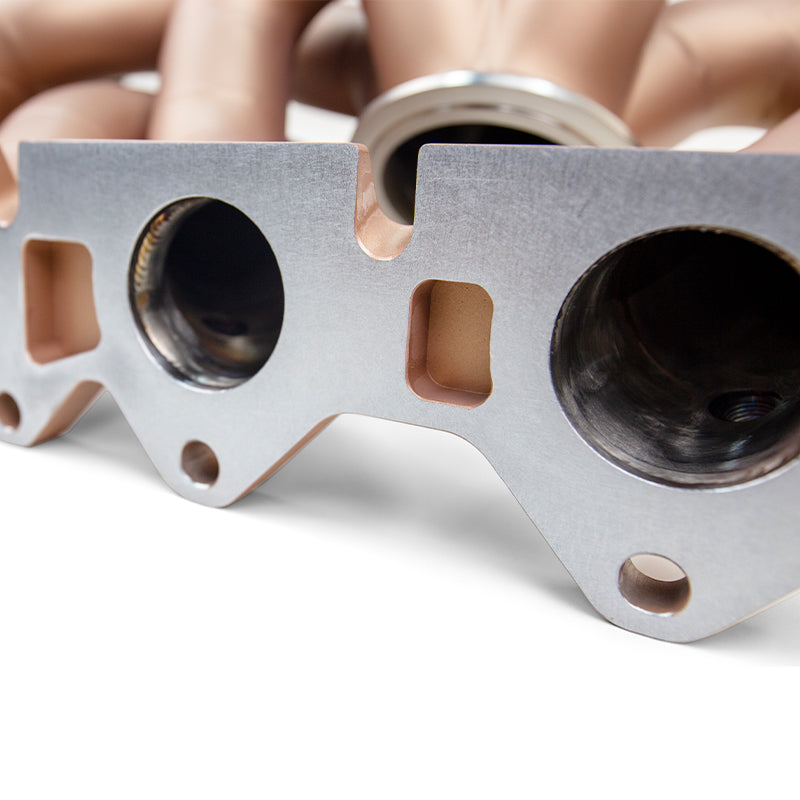

JDY V-Band Heat Shielded Turbo Manifold.

Built-in House
EGT Ports are added per cylinder for data acquisition and the best tune
46mm External Wastegate Provision
Inconel Heat Shielding

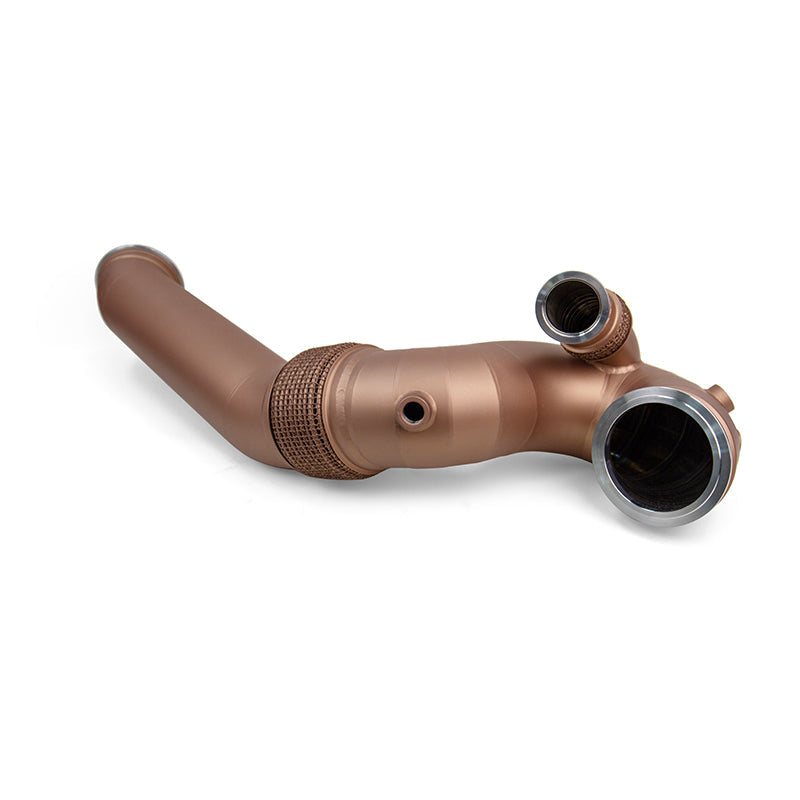

JDY V-Band Recirculated Downpipe

3.5" Diameter
Inconel Heat Shielding
Wastegate Dump Recirculated
Flex Bellow for stress relief

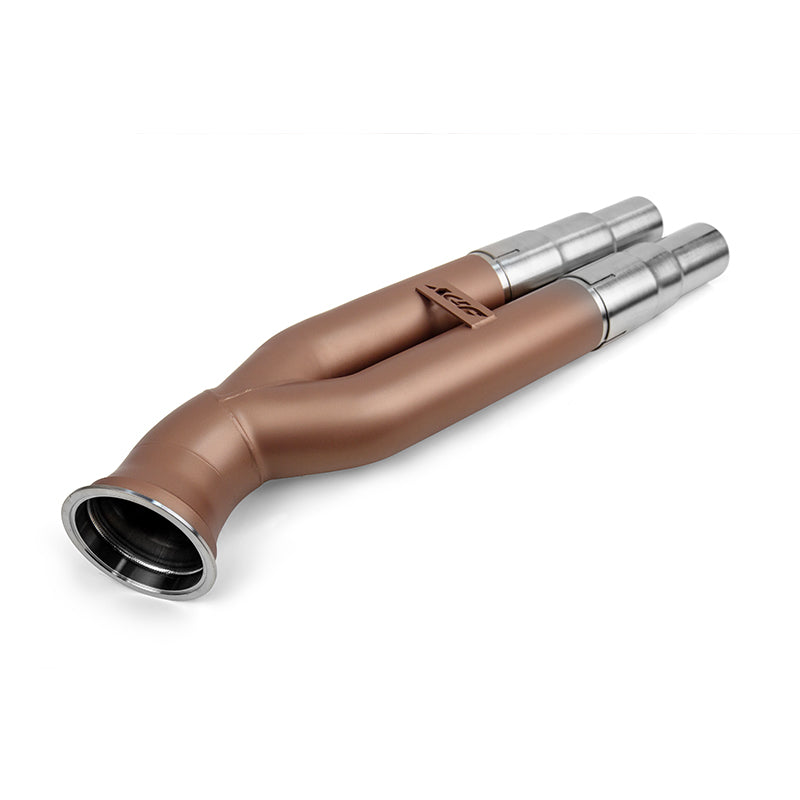

JDY Midpipe

3.5" Diameter
Inconel Heat Shielding
Mates up to OEM Midpipes

JDY Installation Hardware

JDY Turbo Inlet Pipe
JDY Turbo Discharge pipe
Includes Turbo Oil Fittings

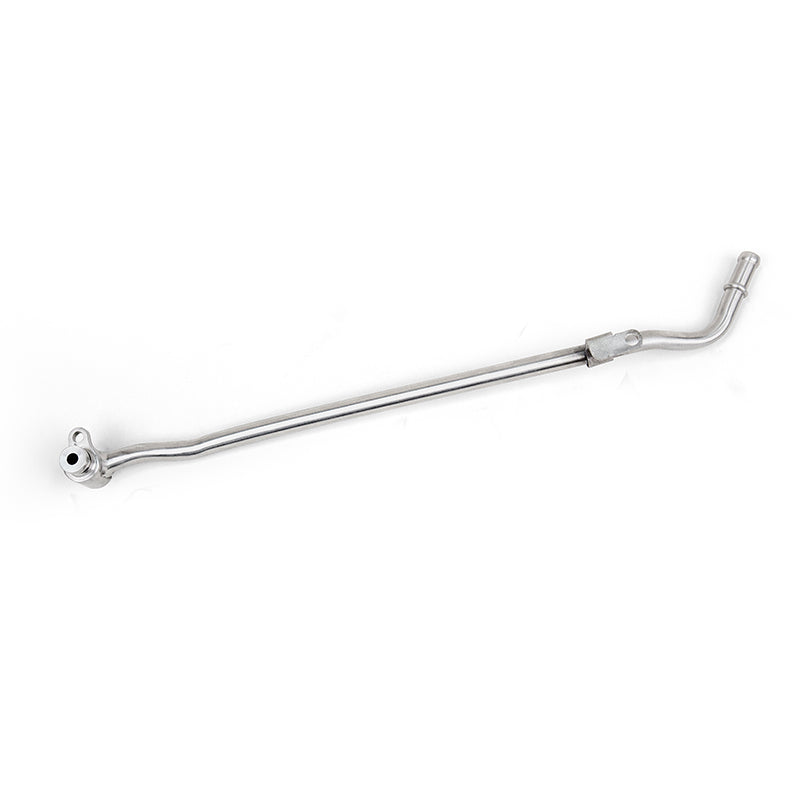

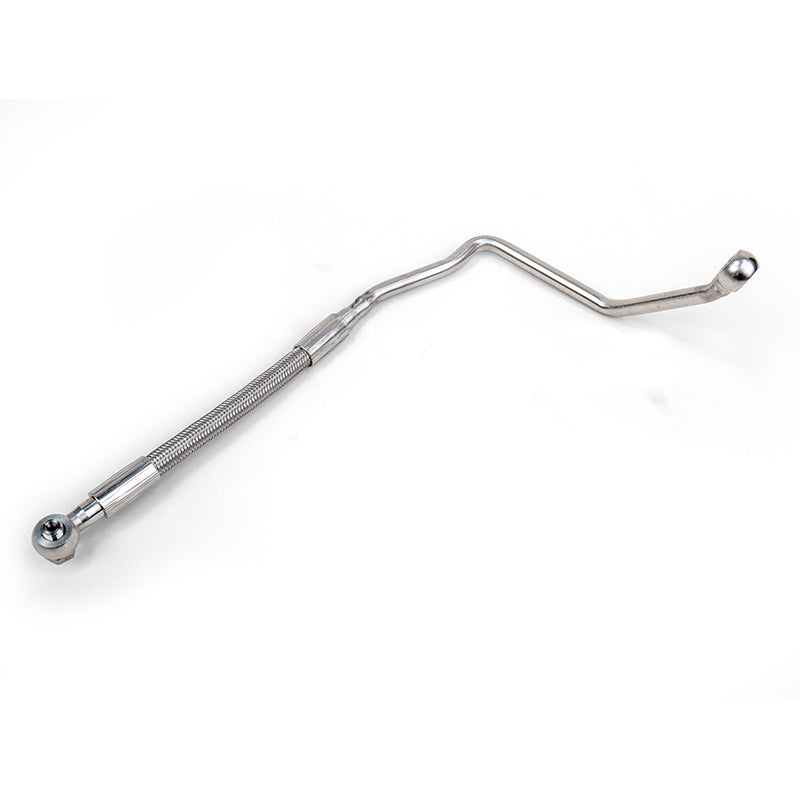

Oil Feed and Return Line
Coolant Delete / Crossover pipe to loop the OE Water Lines
V-Band Clamps
Intake Clamps
Turbo Manifold Studs + Nuts

Precision 46mm Wastegate

Includes All Springs for the perfect boost control

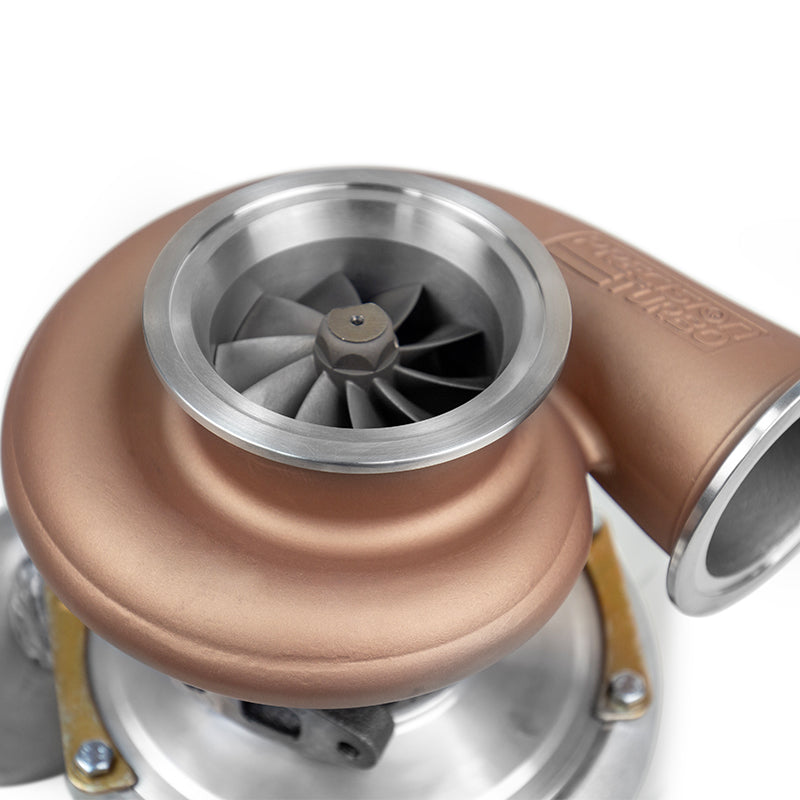

Next Gen CEA Turbocharger

Exclusive Next Gen CEA
(Competition Engineered Aerodynamics) compressor wheel machined from a 2618 aluminium forging
Air-cooled, dual ceramic ball-bearing centre housing rotating assembly (CHRA)
Higher efficiency and faster transient response for maximum power and performance

Pick any of the following depending on your power goals

Next Gen 6466(0.81/0.96/1.05AR)

Rated upto 1000hp
Ported S Compressor Cover. 4" Inlet, 3.0" Discharge
0.81/0.96/1.05A/R V-Band 310 Stainless Steel Turbine Housing
Welded Elbow for Plug 'n Play Use with our JDY KIT

Instruction Manual:

MAC Valve Installation Diagram:

Technical documentation is available from BBT on request.

Current Selectable Options

Turbocharger: Next Gen PT 6466 STAINLESS V-BAND
3 Ports MAC Valve: Yes MAC Valve
Turbine housing AR: 0.81, 0.96, 1.05

Choose only combinations shown as available in the selectors; unavailable combinations cannot be added to cart.

Ordering & Fitment

This listing is for JDY Performance Street Dominator Full Frame Turbo Kit for Audi 2.5TFSI - DAZ/DNW, RS3 8V/8Y, TTRS 8S, RSQ3 F3. Confirm the vehicle, engine, dimensions and supporting components against your application before ordering where fitment is application-specific. If you require a configuration that is not shown, contact Built by Boost & Tune before purchase.
