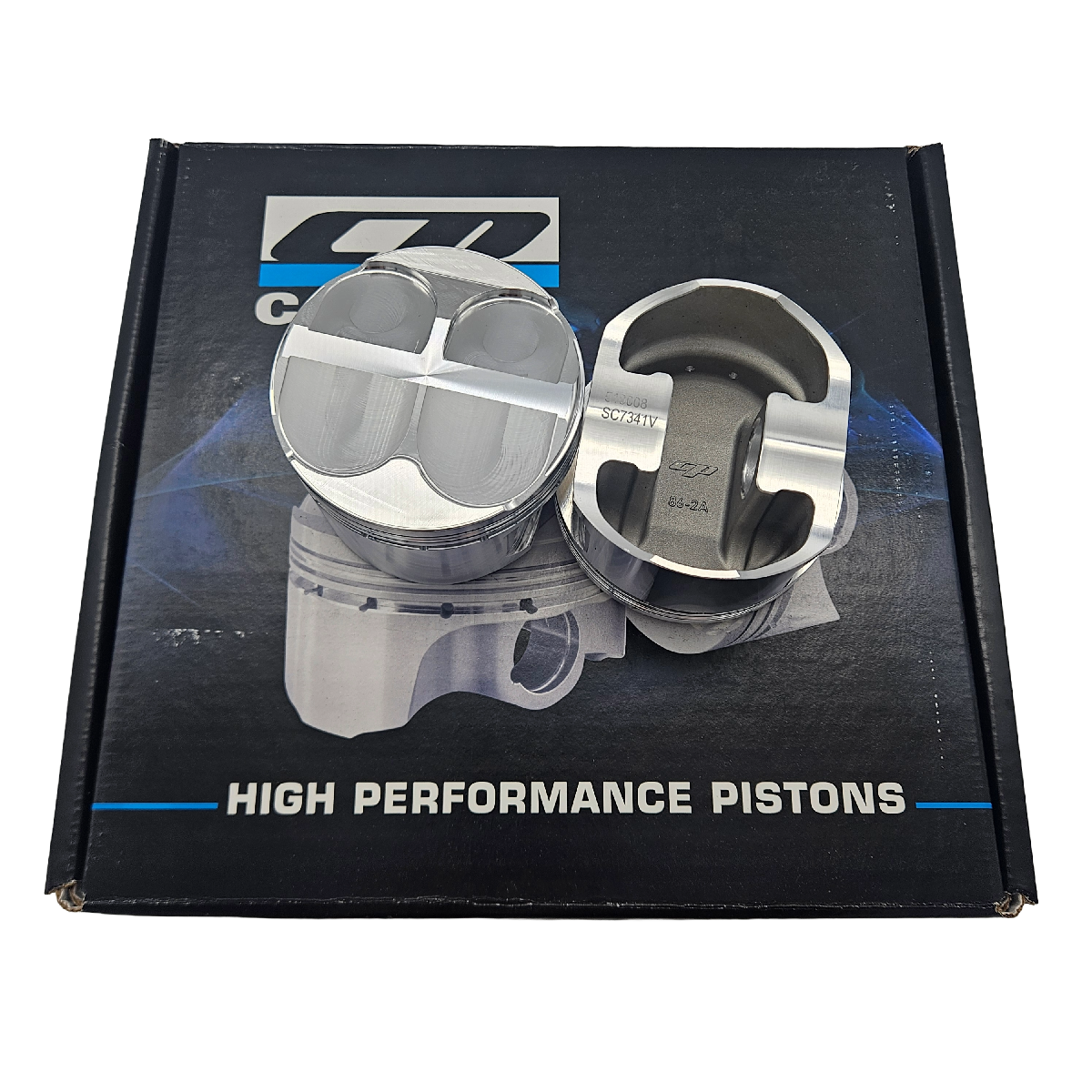

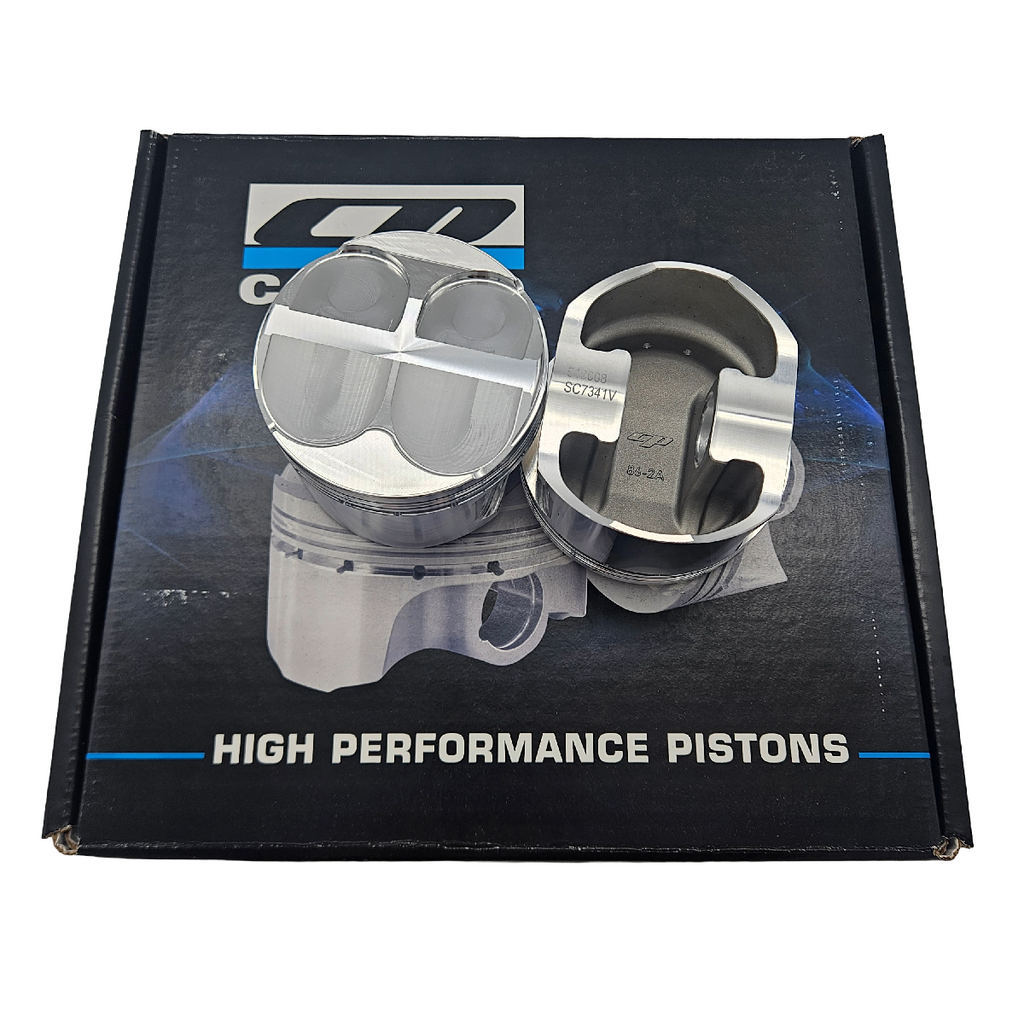

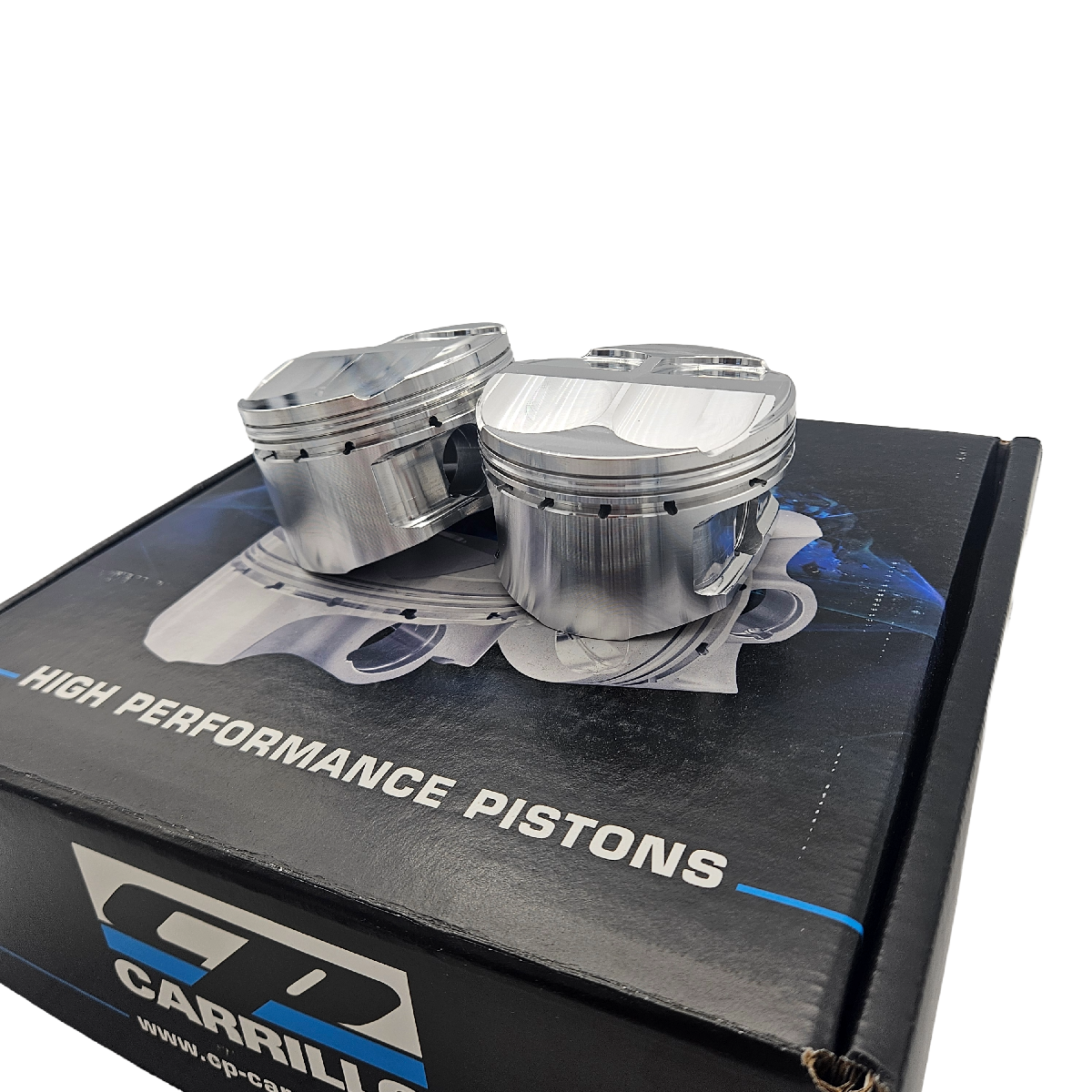

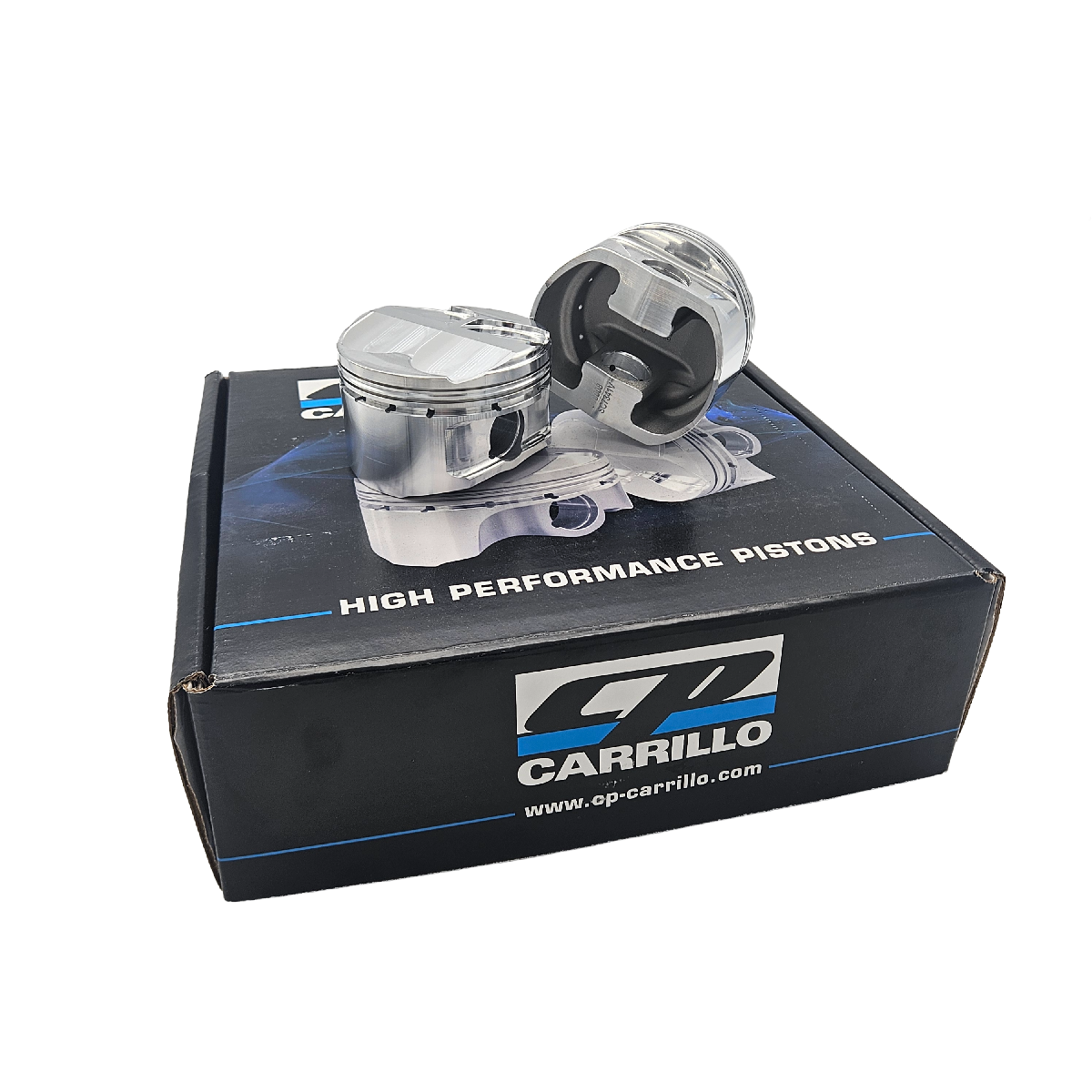

CP Pistons SR20VE/VET

CP Pistons for SR20VE/VET Engines

Available in:

• Bore: 86mm (STD) / Comp: 9.0:1 - Part#: SC7324V
• Bore: 86.5mm (+0.5mm) / Comp: 9.0:1 - Part#: SC7325V
• Bore: 87mm (+1mm) / Comp: 9.0:1 - Part#: SC7326V
• Bore: 88mm (+2mm) / Comp: 9.0:1 - Part#: SC73261V
• Bore: 89.5mm (+3.5mm) / Comp: 9.0:1 - Part#: SC73264V
• Bore: 90mm (+4mm) / Comp: 9.0:1 - Part#: SC7329V (347g)
• Bore: 90mm (+4mm) / Comp: 9.0:1 - Part#: SC7329VS (333g)
• Bore: 86mm (STD) / Comp: 12.5:1 - Part#: SC7340V
• Bore: 86.5mm (+0.5mm) / Comp: 12.5:1 - Part#: SC7341V
• Bore: 87mm (+1mm) / Comp: 12.5:1 - Part#: SC7342V
• Bore: 89.5mm (+3.5mm) / Comp: 12.5:1 - Part#: SC7343V
• Bore: 90mm (+4mm) / Comp: 12.5:1 - Part#: SC7344V

Available options

• Piston Pin Upgrades: No Pin Upgrade; 9310 0.200" Pins; 9310 0.250" Pins
• Piston Options: 86mm (STD) / 9.0:1 - SC7324V (special order); 86.5mm (+0.5mm) / 9.0:1 - SC7325V; 87mm (+1mm) / 9.0:1 - SC7326V; 88mm (+2mm) / 9.0:1 - SC73261V (special order); 89.5mm (+3.5mm) / 9.0:1 - SC73264V (special order); 90mm (+4mm) / 9.0:1 - SC7329V (347g) (special order); 90mm (+4mm) / 9.0:1 - SC7329VS (333g) (special order); 86mm (STD) / 12.5:1 - SC7340V (special order); 86.5mm (+0.5mm) / 12.5:1 - SC7341V (speicial order); 87mm (+1mm) / 12.5:1 - SC7342V (special order); 89.5mm (+3.5mm) / 12.5:1 - SC7343V (special order); 90mm (+4mm) / 12.5:1 - SC7344V (special order)

Engine build fitment

SR20VE/VET. Match the selected dimensions, engine generation and rotating assembly specification before machining or assembly.

Installation and BBT workshop support

Confirm finished bore size, piston-to-wall clearance, compression height, pin specification, ring gaps and valve clearance against the supplied piston documentation.

Built by Boost & Tune is an authorised Spool Imports dealer and can assist with component selection, engine assembly and tuning requirements for your build.
