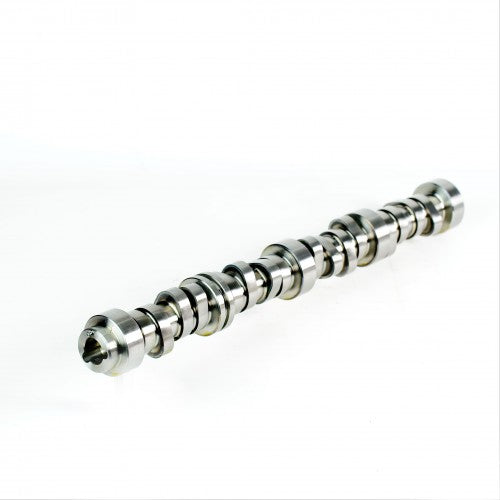

Crow Cams Genuine GM LS3 Single-Bolt Standard Replacement Camshaft

LS3 Single-Bolt Standard Replacement Camshaft is a factory-style replacement camshaft for its specified engine and cam-drive configuration. It is intended to retain the appropriate original valvetrain arrangement rather than automatically requiring performance hardware.

Product specifications

Application and fitment

LS3 engines with a matching single-bolt camshaft drive. Not a direct replacement for a three-bolt application.

Supplied contents

One camshaft for the specified position/profile. Matching camshafts, lifters, springs, retainers and installation hardware are not included unless explicitly stated for this SKU.

Installation and configuration

• Confirm the camshaft part number, engine generation, camshaft drive, trigger arrangement and cylinder-head compatibility before installation.
• Degree the camshaft where required and measure piston-to-valve, valve-to-valve, spring coil-bind and retainer-to-seal clearances on the actual engine.
• Check lifter type, hydraulic preload or mechanical lash, rocker geometry, pushrod length where applicable and the required spring/retainer package.
• An active-AFM/DOD engine requires the correct mechanical conversion before a non-AFM camshaft is fitted; update the ECU calibration as required.

Recommended associated products

Only purchase components required for your actual engine configuration. Included kit components are already accounted for; separately listed alternatives must not be added cumulatively.

• Recommended: Crow Cams Genuine GM LS Cam Retaining Plate Kit — Recommended cam-retaining-plate and fastener kit when the existing plate or fasteners require replacement.
• Recommended: Crow Cams Genuine GM LS Timing Cover Gasket Kit — Recommended front-cover gasket and seal service components during camshaft installation.
• Optional: Crow Cams LS Single Bolt Timing Set — Timing-drive service option only where the actual camshaft bolt pattern, trigger and engine configuration match.
• Optional: Crow Cams Genuine GM LS High-Pressure Oil Pump Kit — Supplier-listed related component. Confirm the exact engine, configuration and installation requirements; purchase separately only if not already included.

Alternative packages — choose one

These are optional alternatives, not additional required purchases. Select the version that matches the intended engine, existing components and complete package contents.

• Recommended: Crow Cams Genuine GM LS3/L98 Lifter Overhaul Kit — Select the overhaul package matching the actual engine and early/late head-bolt arrangement. Use one appropriate overhaul kit, not several.

BBT product selection and workshop support

Built by Boost & Tune is an authorised Crow Cams dealer and performance engine workshop. We can assist with the correct camshaft profile, compatible valve-train hardware, engine preparation, installation and calibration. Provide the exact engine code, intended use and existing components so the complete package can be checked before ordering.

Vehicle Fitment

• Chevrolet Camaro 5Th Gen Ls3
• Chevrolet Corvette C6 Ls3
• Holden Commodore Ve Ls3
• Holden Commodore Vf Vfii Ls3

Confirm chassis, engine, drivetrain and production-year compatibility before ordering.

Built by Boost & Tune Support

BBT can assist with fitment review, installation, supporting modifications, configuration and calibration requirements where applicable.
