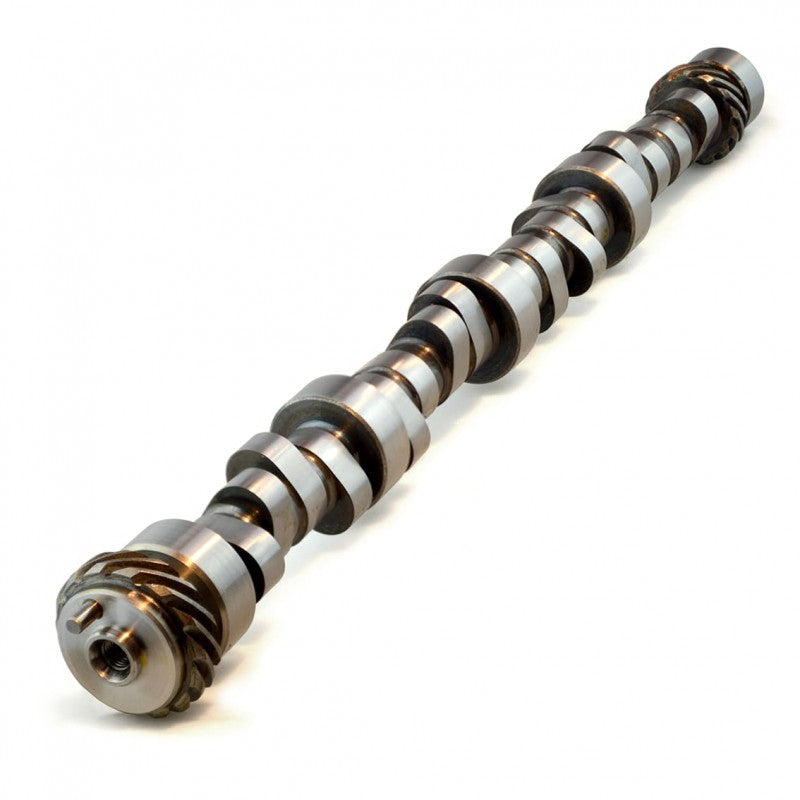

Holden V8 304/355 EFI Hydraulic Roller — 4002
A standard replacement roller profile. Its reduced base circle can require longer pushrods to obtain the correct lifter preload.
Camshaft specifications
| Supplier part number | 4002 |
|---|---|
| Engine / head family | Holden V8 with VN–VT-style cylinder heads |
| Operating range | 1700 - 5500 rpm |
| Advertised duration — inlet / exhaust | 270° / 266° |
| Duration at 0.050 inch — inlet / exhaust | 202° / 203° |
| Valve lift at 1.65 rocker ratio — inlet / exhaust | .427'' / .425'' |
| Lobe separation angle | 117° |
| Hot lash — inlet / exhaust | HYD / HYD |
Supplied contents
One camshaft. Lifters, springs, retainers, locks, seals and drive hardware are separate unless expressly included in an agreed package.
Profile-specific fitting requirements
The reduced base circle may need longer-than-standard pushrods to establish the correct hydraulic preload.
Companion parts listed for this profile
These are separate supporting components and may include alternative spring or hardware choices. BBT can check which combination is required; do not order every listed option as one package.
- 5208HR — Johnson Holden V8 Hydraulic Roller Lifters 2616HNR-16
- 4833-16 — Performance Single Valve Springs with Damper - Set of 16
- 11717-16 — Holden V8 Chrome Moly retainers for single spring - Set of 16
- 4133-16 — Square Groove Std Height Machined Valve Locks - Set of 16 pairs
- CS8308 — Holden V8 Timing Chain Set
- DG4 — Holden V8 Oil Pump Gear
- DG8 — Holden V8 Distributor Gear
- CRHL8167 — Holden V8 Roller Rockers
Contact BBT for any companion part without a product link.
Installation and BBT support
Confirm the actual engine capacity, cylinder-head design and induction system before ordering. The installer must check cam timing, piston-to-valve clearance, spring installed height, coil bind, retainer-to-seal clearance, pushrod length and rocker geometry. Hydraulic preload or mechanical lash must match the selected profile. BBT can help assemble the engine-specific package and arrange installation and calibration.
Product System
- Engine Parts
Vehicle Fitment
- Holden Commodore Vn Vr 5 0 Efi V8
- Holden Commodore Vs 5 0 Efi V8
Confirm chassis, engine, drivetrain and production-year compatibility before ordering.
