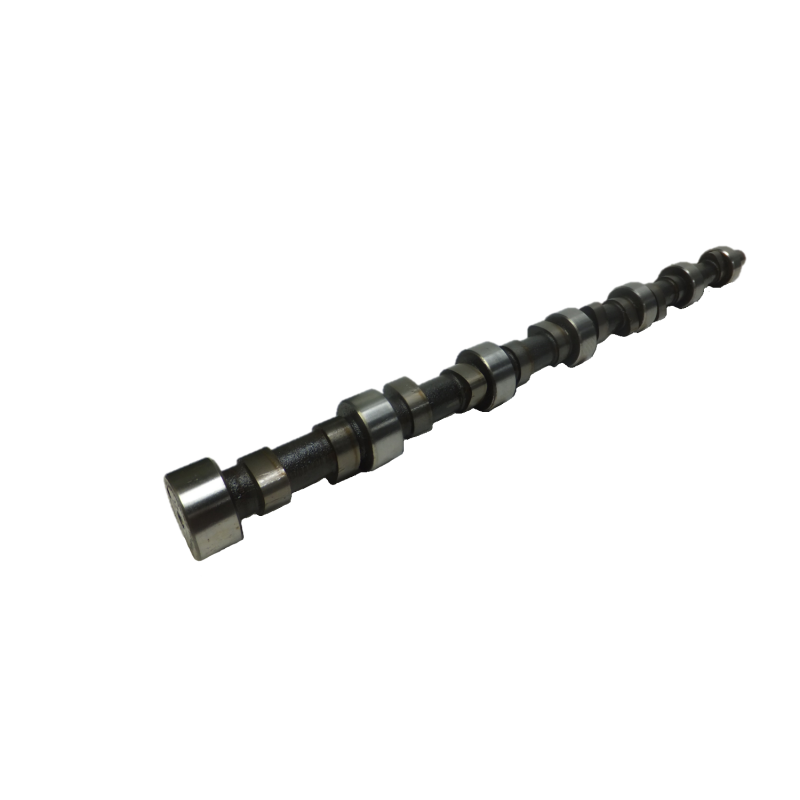

Nissan Patrol TB42/TB45 6cyl — 442846-13
A mild towing profile designed for EFI applications, with 113-degree lobe separation.
Camshaft specifications
| Supplier part number | 442846-13 |
|---|---|
| Supplied position | Single camshaft — inlet and exhaust lobes |
| Operating range | 2200 - 4000 rpm |
| Advertised duration — inlet / exhaust | 267° / 281° |
| Duration at 0.050 inch — inlet / exhaust | 218° / 225° |
| Valve lift — inlet / exhaust | 0.409" / 0.412" |
| Hot valve lash — inlet / exhaust | .016" / .018" |
| Rocker ratio used for listed valve lift | 1.5:1 |
| Lobe separation angle | 113° |
Supplied contents
One camshaft. Springs, retainers, installation hardware are separate.
Application and fitting
Replacement or upgraded springs are available. Crow lists 5840-12 springs for the TB42/TB45 family; confirm the pressure and installed height required by the chosen profile.
Supporting parts
The following are separate supplier-listed components. BBT can check which are required for your installation.
- 5840-12 — Dual Valve Springs - Nissan 6cyl
- ZDDP-2 — Dura Cam ZDDP Oil Additive - 2 pack
Contact BBT for parts without a product link.
BBT installation support
Have the installer verify cam timing, piston-to-valve clearance, spring installed height, coil-bind and retainer-to-seal clearance on the actual engine. Confirm the lash or preload procedure for the supplied cam and follow its lubrication and run-in instructions. BBT can assist with part selection, installation and calibration.
Product System
- Engine Parts
Vehicle Fitment
- Nissan Patrol Gq Y60 Tb42
- Nissan Patrol Gq Y60 Tb45
- Nissan Patrol Gu Y61 Tb45
Confirm chassis, engine, drivetrain and production-year compatibility before ordering.
