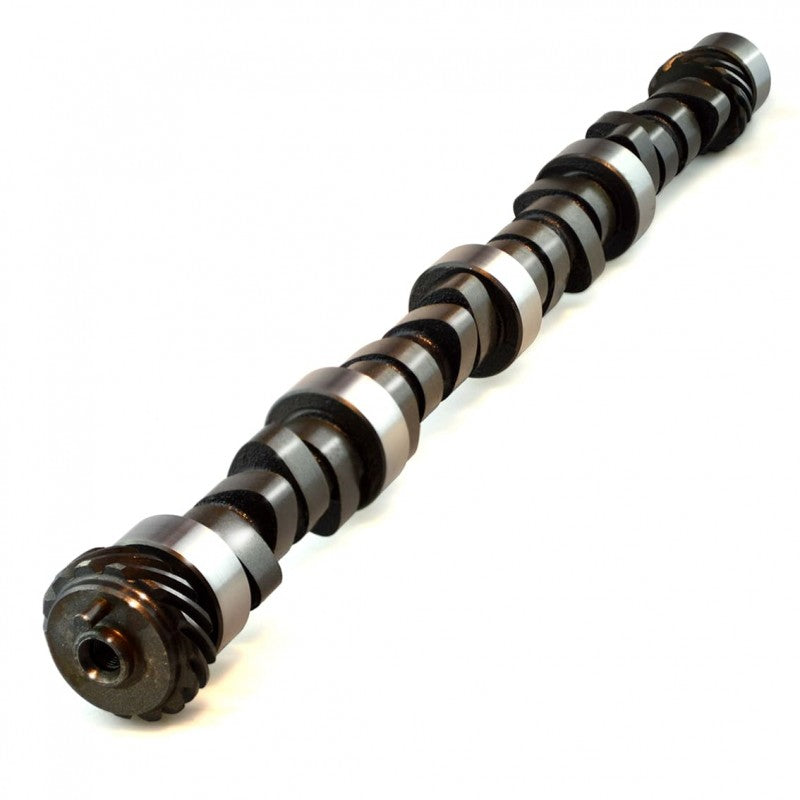

Holden V8 304/355 EFI Hydraulic — 4666
Designed for increased mid range with a smooth idle and dual pattern suited for LPG
Camshaft specifications
| Supplier part number | 4666 |
|---|---|
| Engine / head family | Holden V8 with VN–VT-style cylinder heads |
| Operating range | 1700 - 4700 rpm |
| Advertised duration — inlet / exhaust | 268° / 288° |
| Duration at 0.050 inch — inlet / exhaust | 204° / 214° |
| Valve lift at 1.65 rocker ratio — inlet / exhaust | .459'' / .486'' |
| Lobe separation angle | 112° |
| Hot lash — inlet / exhaust | HYD / HYD |
Supplied contents
One camshaft. Lifters, springs, retainers, locks, seals and drive hardware are separate unless expressly included in an agreed package.
Profile-specific fitting requirements
Performance valve springs are required. Performance spring retainers are required. For flat-tappet installation, Crow recommends two bottles of ZDDP additive: one for run-in and one for the first oil change. Follow Crow’s current run-in procedure and the product dosing instructions.
Companion parts listed for this profile
These are separate supporting components and may include alternative spring or hardware choices. BBT can check which combination is required; do not order every listed option as one package.
- CRHL8167 — Holden V8 Roller Rockers
- 11701-16 — Square Groove 7deg Hardened Locks - Set of 16
- 4833-16 — Performance Single Valve Springs with Damper - Set of 16
- GP304 — Holden EFI V8 Guide Plates
- CS8308 — Holden V8 Timing Chain Set
- 11707-16 — Holden V8 & SBC Chrome Moly Retainers - Set of 16
- CST100940 — Rocker Studs 7/16" Heads to 7/16" Rocker
- ZDDP-2 — Dura Cam ZDDP Oil Additive - 2 pack
- KG819V-16 — Holden Viton O-Ring Valve Stem Seals
- DG4 — Holden V8 Oil Pump Gear
- DG8 — Holden V8 Distributor Gear
Contact BBT for any companion part without a product link.
Installation and BBT support
Confirm the actual engine capacity, cylinder-head design and induction system before ordering. The installer must check cam timing, piston-to-valve clearance, spring installed height, coil bind, retainer-to-seal clearance, pushrod length and rocker geometry. Hydraulic preload or mechanical lash must match the selected profile. BBT can help assemble the engine-specific package and arrange installation and calibration.
Product System
- Engine Parts
Vehicle Fitment
- Holden Commodore Vn Vr 5 0 Efi V8
- Holden Commodore Vs 5 0 Efi V8
Confirm chassis, engine, drivetrain and production-year compatibility before ordering.
