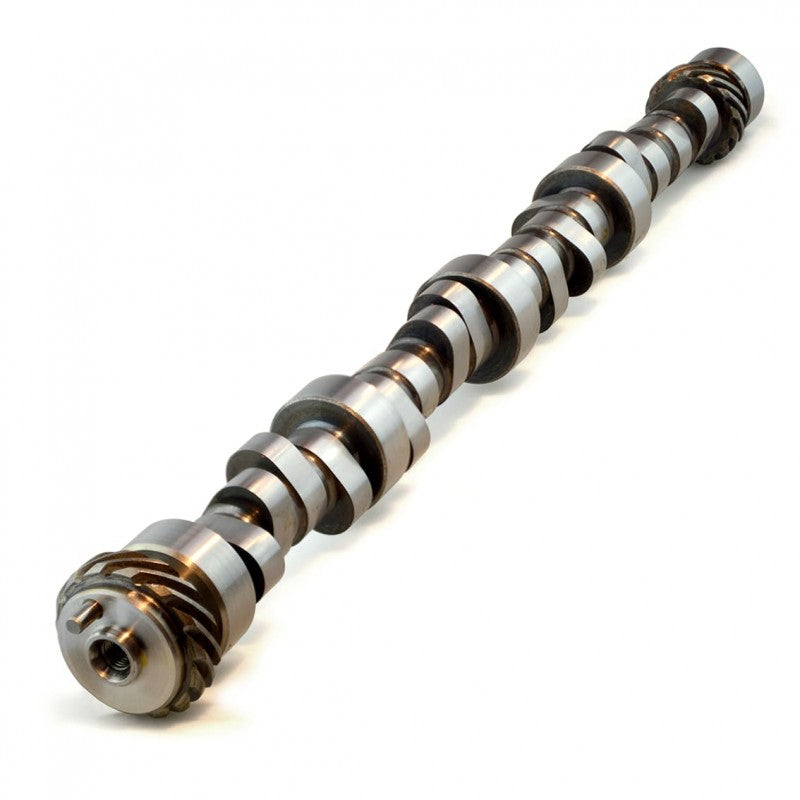

Crow Cams Holden V8 304/355 Carby Solid Roller — 4754
Crow Cams Holden V8 304/355 Carby Solid Roller — 4754
Holden V8 304/355 Carby Solid Roller — 4754
Street/strip application, will need all serious engine mods to get the best out of this cam
Camshaft specifications
| Supplier part number | 4754 |
|---|---|
| Engine / head family | Holden V8 with VN–VT-style cylinder heads |
| Operating range | 3800 - 7200 rpm |
| Advertised duration — inlet / exhaust | 288° / 293° |
| Duration at 0.050 inch — inlet / exhaust | 257° / 262° |
| Valve lift at 1.65 rocker ratio — inlet / exhaust | .658" / .677" |
| Lobe separation angle | 106° |
| Hot lash — inlet / exhaust | .016" / .016" |
Supplied contents
One camshaft. Lifters, springs, retainers, locks, seals and drive hardware are separate unless expressly included in an agreed package.
Profile-specific fitting requirements
Performance valve springs are required. Performance spring retainers are required. Fitting the specified hardware requires machining. Use the specified performance valve seals. For an automatic transmission, Crow specifies converter stall at or above the lower end of the cam’s operating range.
Companion parts listed for this profile
These are separate supporting components and may include alternative spring or hardware choices. BBT can check which combination is required; do not order every listed option as one package.
- 4920-16 — PAC Endurance Dual Spring - Set of 16
- 5208R — Johnson Holden V8 Solid Roller Lifters 3616HNR-16
- TR405-16 — Titanium Retainers - Set of 16
- CS8308 — Holden V8 Timing Chain Set
- VSV530-16 — Blue Viton Valve Stem Seal .530" x .342" (11/32") - Set of 16
- DG4 — Holden V8 Oil Pump Gear
- DG8 — Holden V8 Distributor Gear
- 11102-16 — Square Groove 10 Deg -.050" Machined Locks - Set of 16 pairs
- 11101-16 — Square Groove 10deg Machined Locks - set of 16 pairs
- 11103-16 — Square Groove 10 Deg +.050" Locks - 16 pairs
Contact BBT for any companion part without a product link.
Installation and BBT support
Confirm the actual engine capacity, cylinder-head design and induction system before ordering. The installer must check cam timing, piston-to-valve clearance, spring installed height, coil bind, retainer-to-seal clearance, pushrod length and rocker geometry. Hydraulic preload or mechanical lash must match the selected profile. BBT can help assemble the engine-specific package and arrange installation and calibration.
Product System
- Engine Parts
Vehicle Fitment
- Holden Commodore Vn Vr 5 0 Efi V8
- Holden Commodore Vs 5 0 Efi V8
Confirm chassis, engine, drivetrain and production-year compatibility before ordering.
