Name: Crow Cams Holden V8 304/355 EFI Hydraulic Roller — 49032
Brand: Crow Cams
SKU: '49032
Price: 945.81 AUD
Availability: InStock

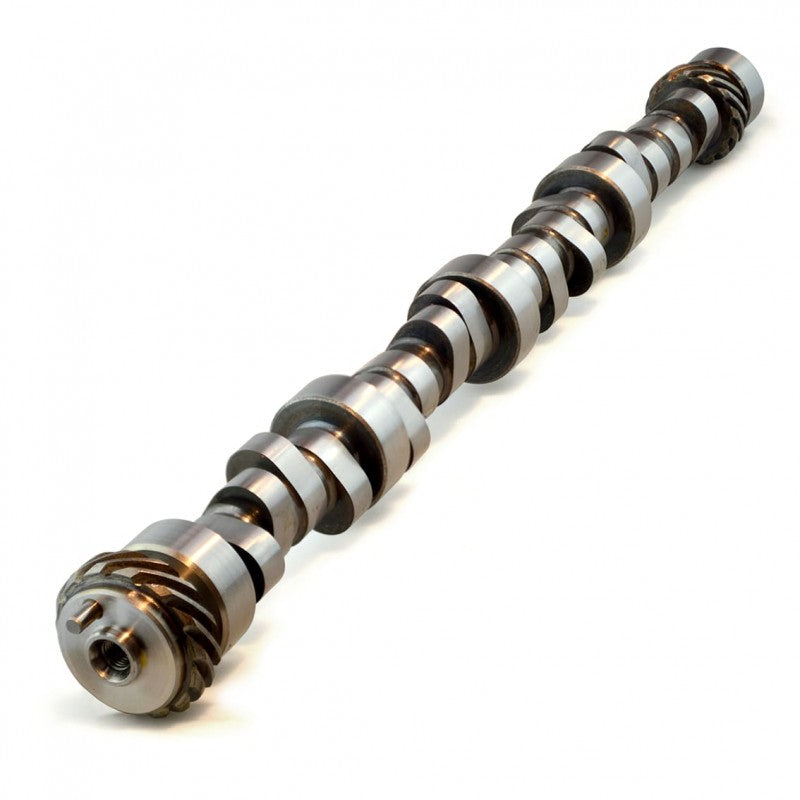

Holden V8 304/355 EFI Hydraulic Roller — Crow Cams 49032

Crow Cams Holden V8 304/355 EFI Hydraulic Roller — 49032

$945.81

Holden V8 304/355 EFI Hydraulic Roller — 49032

A mild performance roller profile with low-to-mid-range emphasis and a choppy idle.

Camshaft specifications

Supplier part number	49032
Engine / head family	Holden V8 with VN–VT-style cylinder heads
Operating range	1600 - 5000 rpm
Advertised duration — inlet / exhaust	270° / 276°
Duration at 0.050 inch — inlet / exhaust	218° / 224°
Valve lift at 1.65 rocker ratio — inlet / exhaust	.530" / .535"
Lobe separation angle	108°
Hot lash — inlet / exhaust	HYD / HYD

Supplied contents

One camshaft. Lifters, springs, retainers, locks, seals and drive hardware are separate unless expressly included in an agreed package.

Profile-specific fitting requirements

Performance valve springs are required. Performance spring retainers are required. For an automatic transmission, Crow specifies converter stall at or above the lower end of the cam’s operating range. Fit the DG4 oil-pump gear.

Companion parts listed for this profile

These are separate supporting components and may include alternative spring or hardware choices. BBT can check which combination is required; do not order every listed option as one package.

CRHL8167 — Holden V8 Roller Rockers
4845-16 — Single Valve Springs with Damper - Set of 16
GP304 — Holden EFI V8 Guide Plates
5208HR — Johnson Holden V8 Hydraulic Roller Lifters 2616HNR-16
4133-16 — Square Groove Std Height Machined Valve Locks - Set of 16 pairs
DG4 — Holden V8 Oil Pump Gear
DG8 — Holden V8 Distributor Gear
VSV530-16 — Blue Viton Valve Stem Seal .530" x .342" (11/32") - Set of 16
CST100940 — Rocker Studs 7/16" Heads to 7/16" Rocker

Contact BBT for any companion part without a product link.

Installation and BBT support

Confirm the actual engine capacity, cylinder-head design and induction system before ordering. The installer must check cam timing, piston-to-valve clearance, spring installed height, coil bind, retainer-to-seal clearance, pushrod length and rocker geometry. Hydraulic preload or mechanical lash must match the selected profile. BBT can help assemble the engine-specific package and arrange installation and calibration.
