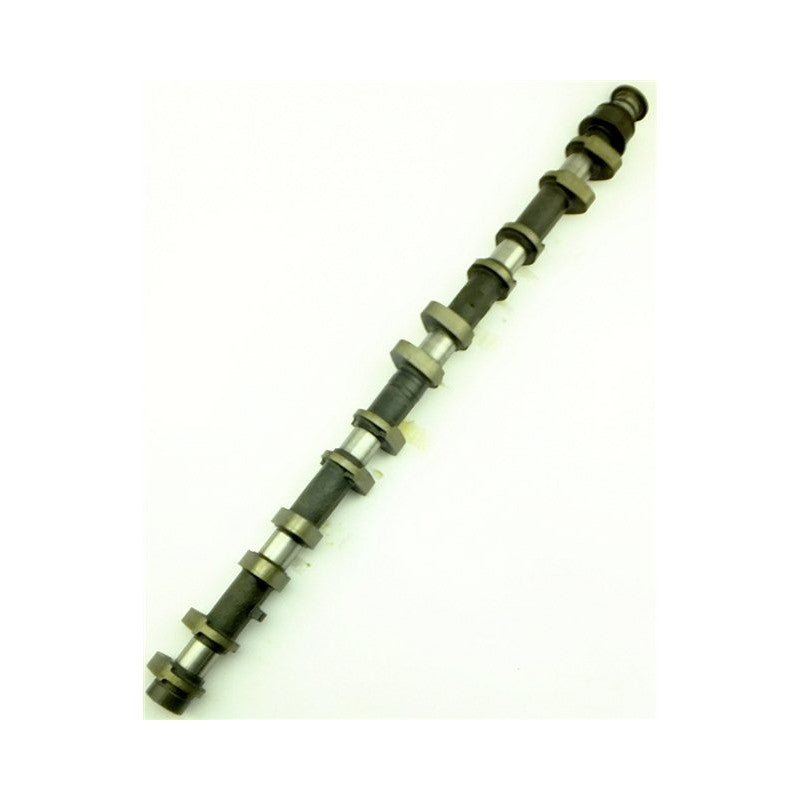

Toyota 1FZ-FE 6cyl Mild Performance Inlet — 5281841
A mild 1FZ-FE inlet upgrade with an emphasis on torque and mid-range response.
Camshaft specifications
| Supplier part number | 5281841 |
|---|---|
| Supplied position | Inlet |
| Operating range | 2000 - 5000 rpm |
| Advertised duration | 292° |
| Valve lift | .401" |
| Hot valve lash | .012" |
Supplied contents
One inlet camshaft. Springs, retainers, installation hardware and the opposite-position camshaft are separate.
Application and fitting
The cam is ground for the factory timing position. Use the factory timing marks unless a different setting has been agreed; changing phasing requires suitable vernier gears and accurate degreeing.
Corresponding camshaft
Crow Cams Toyota 1FZ-FE 6cyl Mild Performance Exhaust. Sold separately; BBT can confirm the paired combination for your engine.
Supporting parts
The following are separate supplier-listed components. BBT can check which are required for your installation.
- ZDDP-2 — Dura Cam ZDDP Oil Additive - 2 pack
Contact BBT for parts without a product link.
BBT installation support
Have the installer verify cam timing, piston-to-valve clearance, spring installed height, coil-bind and retainer-to-seal clearance on the actual engine. Confirm the lash or preload procedure for the supplied cam and follow its lubrication and run-in instructions. BBT can assist with part selection, installation and calibration.
Product System
- Engine Parts
Vehicle Fitment
- Toyota Landcruiser 80 Series 1Fz Fe
Confirm chassis, engine, drivetrain and production-year compatibility before ordering.
