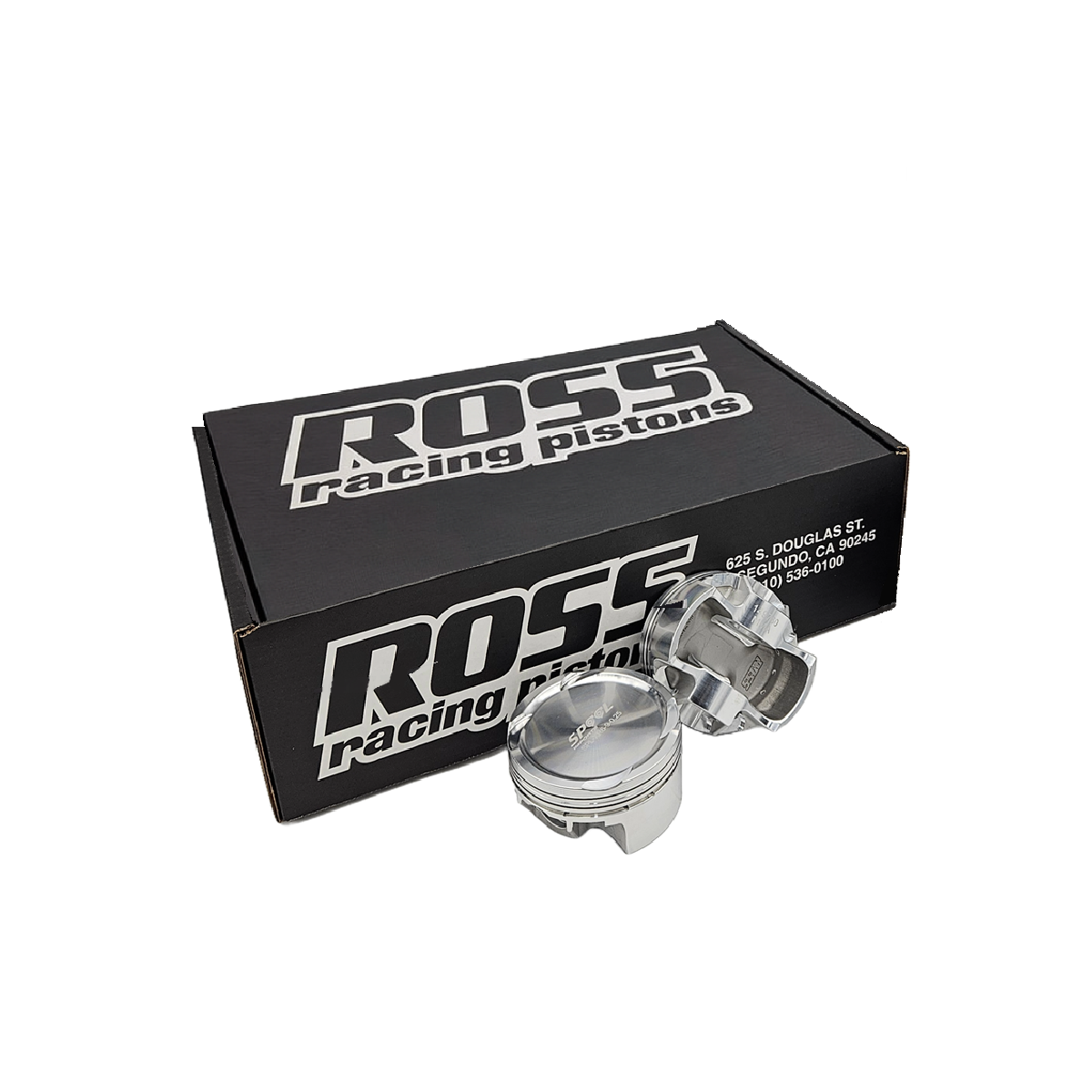

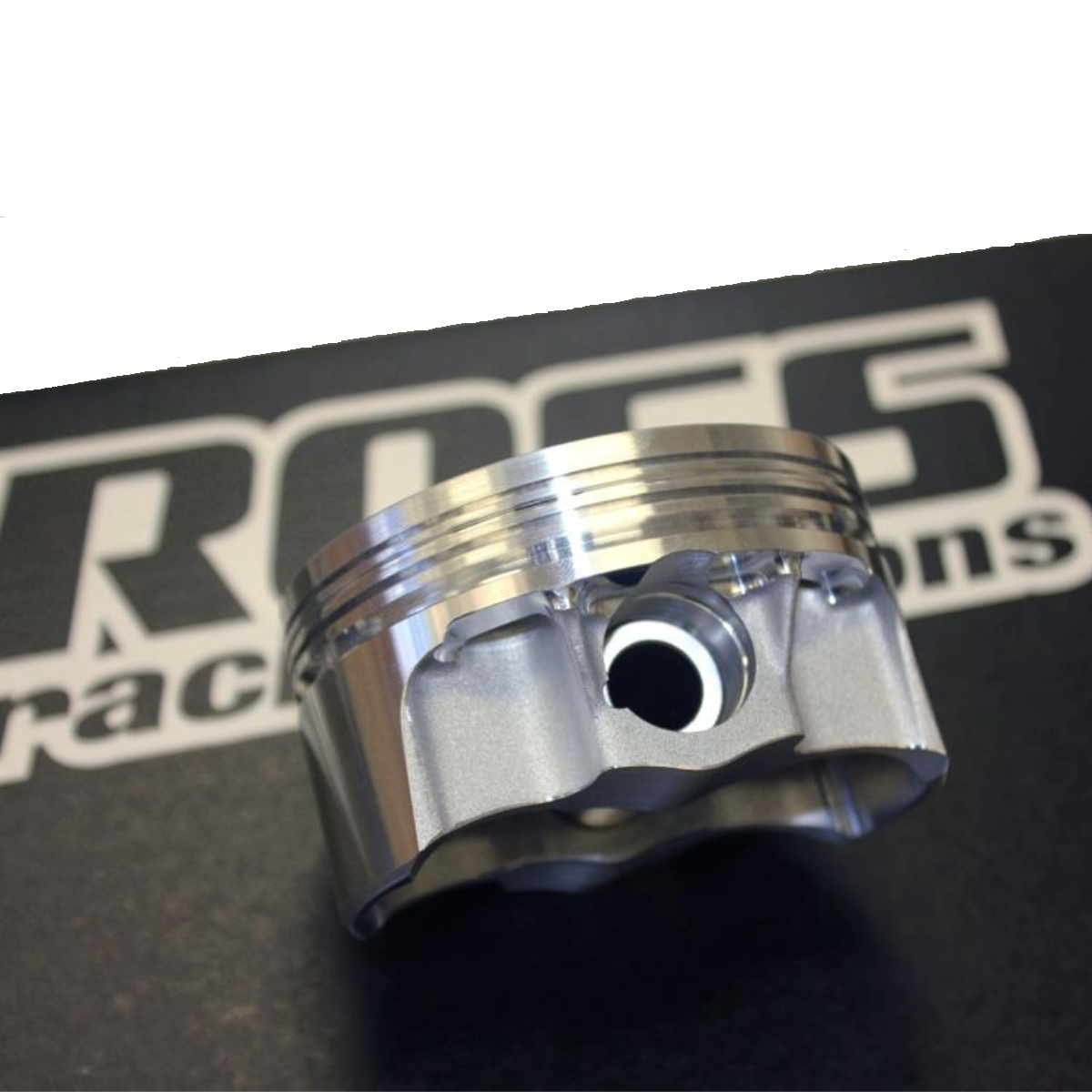

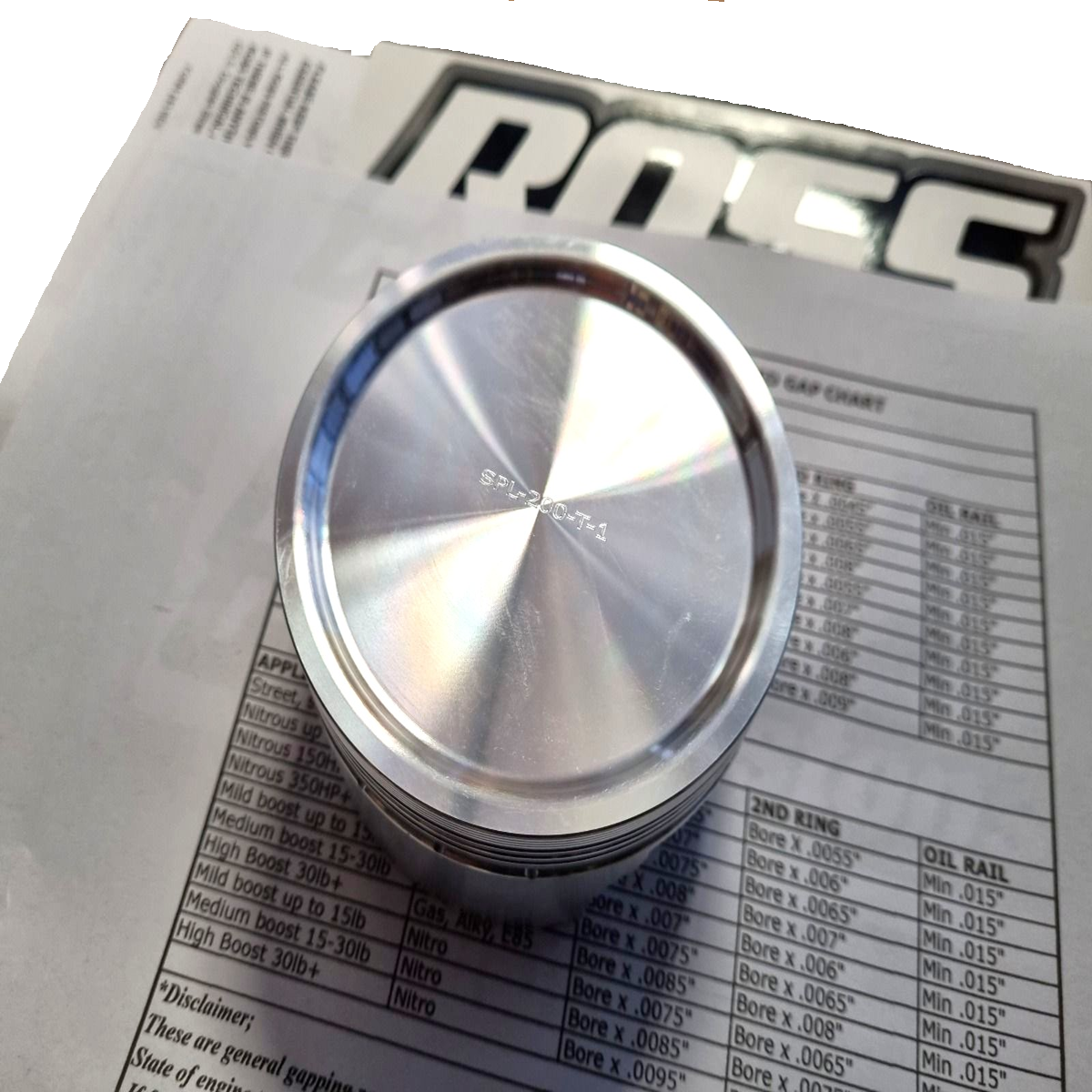

Ford Turbo 250 XFlow Ross Racing Forged Pistons ( When using 200 CID Rod )

Spool Ford Turbo 250 XFlow Ross Racing Forged Pistons ( When using 200 CID Rod )

Suit Ford Turbo 250 XFlow if using a 200 Rod (not included)

Ross Racing Pistons Feature:

• Compression Height: 1.17"
• Bore Size: +0.40" / 3.720"
• Pin: 0.912"
• Dish Volume: -19 cc
• Forged 2618
• Rings, Gudgeon Pins & Locks

All of Ross Racing Pistons (since 1985) have been forged from 2618 billet bar stock and have been heat treated and aged to a T61 condition (2618-T61). 2618-T61 is the material that is used when fatigue resistance and durability are of prime importance by all premium racing piston manufacturers.

This material has less than 1% silicon particulate content. High silicon content pistons (forged from 4032 or MS75) will not stand up to the most extreme stress placed on many racing pistons. If a crack starts to form in a high silicon piston it will continue until the piston experiences a catastrophic failure. Simply stated, adding sand to the aluminum only makes it more brittle. In the rare instance of a 2618-T61 piston cracking, the crack will continue to an area where the stress is not as great and will then stop. Another advantage of 2618-T61 over the high silicon pistons is the ability to keep its shape under extreme pressure and high RPM's. "Skirt Shrinking" is not a problem with ROSS Racing Pistons.

Product images are for description purposes only. Actual product may vary.

Note: We recommend Joe Gibbs Break in Oil for all new engines.

Available options

• Pin Upgrades: No Pin Upgrade; H13 Pins

Engine build fitment

250 XFlow. Match the selected dimensions, engine generation and rotating assembly specification before machining or assembly.

Installation and BBT workshop support

Confirm finished bore size, piston-to-wall clearance, compression height, pin specification, ring gaps and valve clearance against the supplied piston documentation.

Built by Boost & Tune is an authorised Spool Imports dealer and can assist with component selection, engine assembly and tuning requirements for your build.
