GFB EX38 External Wastegate
GFB EX38 External Wastegate

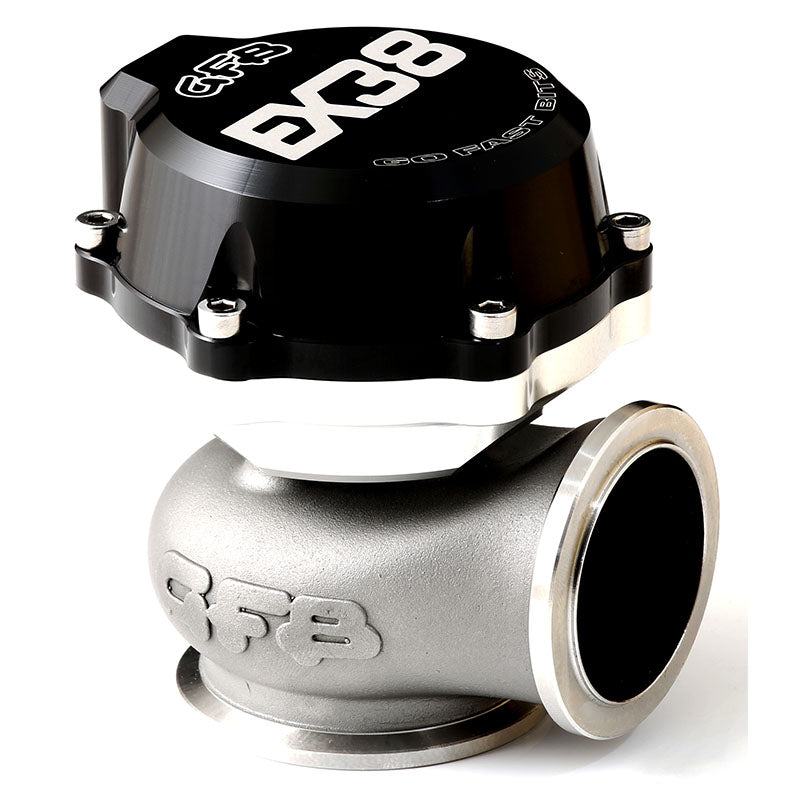

GFB EX38 38 mm external wastegate — 7003
The EX38 has a 38 mm valve and stands 93 mm tall. GFB supplies it with a 10 psi spring; optional 5, 7 and 10 psi springs can be combined for other listed base pressures. The tapered inlet helps the transition into the valve, and the EX38 is directly compatible with TiAl MV-S flanges.
GFB uses a 253MA chromium-nickel stainless investment-cast body, a machined stainless valve, stainless weld-on hardware, a billet 6061 aluminium actuator housing and a Nomex-reinforced silicone diaphragm. An internal shroud helps protect the valve stem from heat and carbon build-up. V-band mounting; made in Australia under ISO 9001.
Confirm the required base boost, spring combination, flange and exhaust layout for the finished installation.
BBT selection and installation
Confirm the exact application and supporting hardware with BBT before ordering. Professional installation and calibration may be required.
