Haltech CAN Keypad 8 Button / 15 Button

$529.20

Haltech CAN Keypad provides a rugged, configurable driver-control interface for compatible Haltech Nexus and Elite systems.

Common features

Soft-touch, ergonomically arranged buttons.
Dimmable backlighting and status LEDs.
IP67 sealed construction with vibration and impact resistance.
Operating temperature from -40°C to +85°C.
Rated to approximately one million key cycles.
Buttons can be configured for momentary or toggle functions in the Haltech system.

Select keypad size

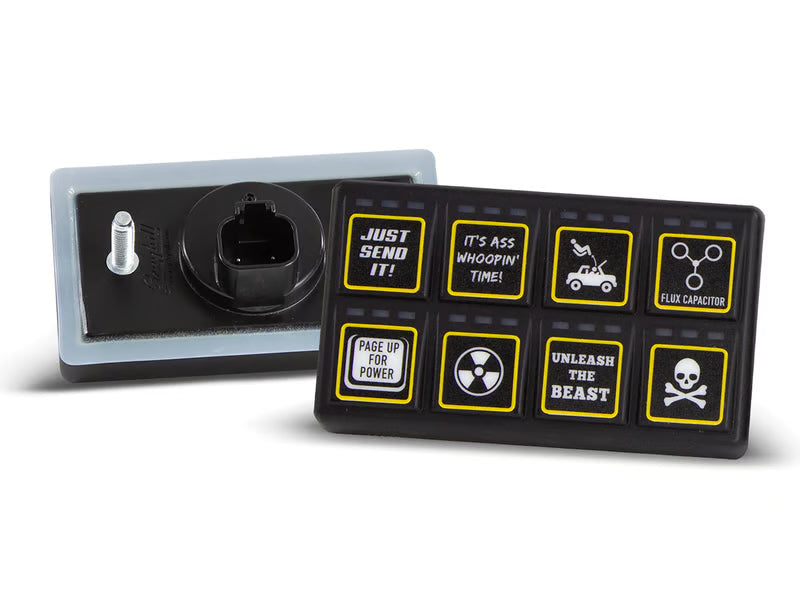

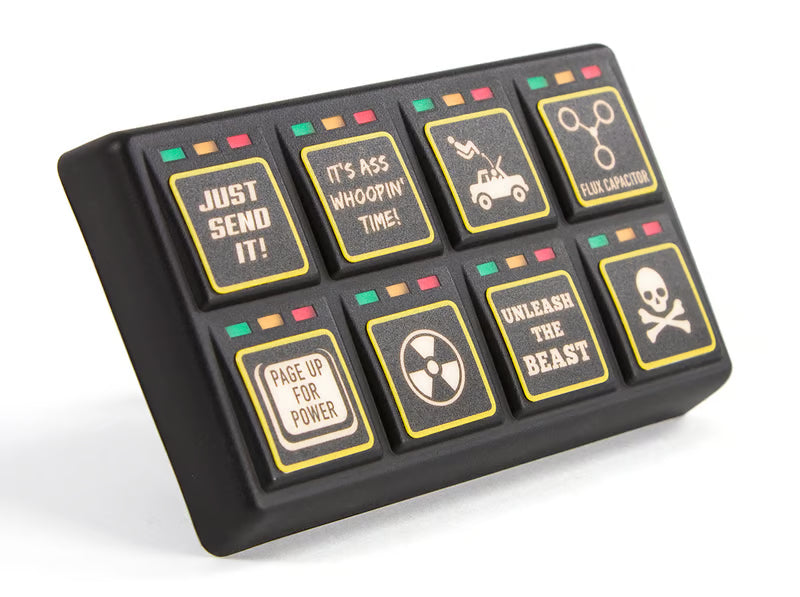

8 Button / 2 x 4 — HT-011501: compact two-row, four-column keypad.

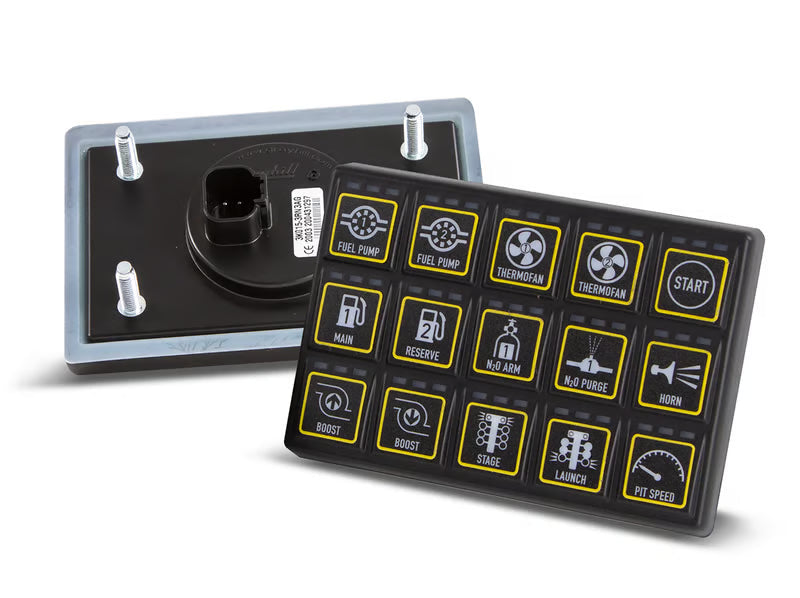

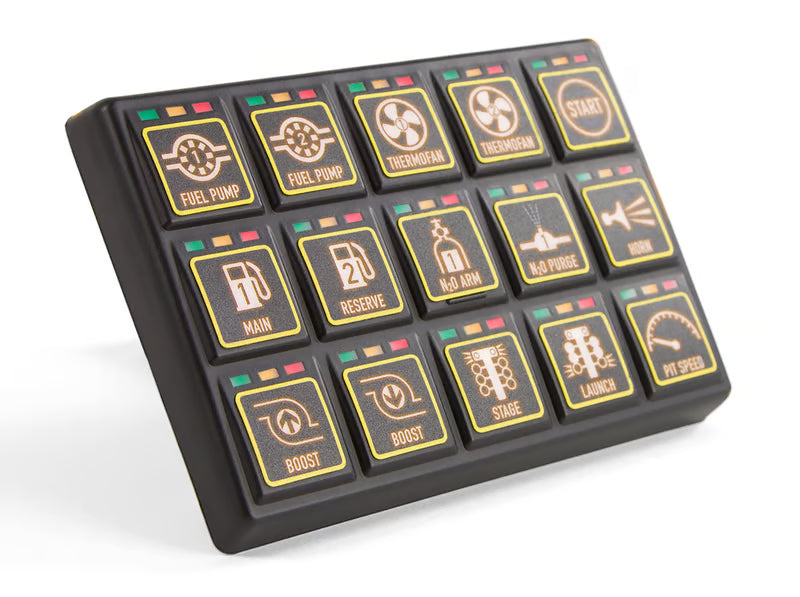

15 Button / 3 x 5 — HT-011502: larger three-row, five-column keypad for more driver functions.

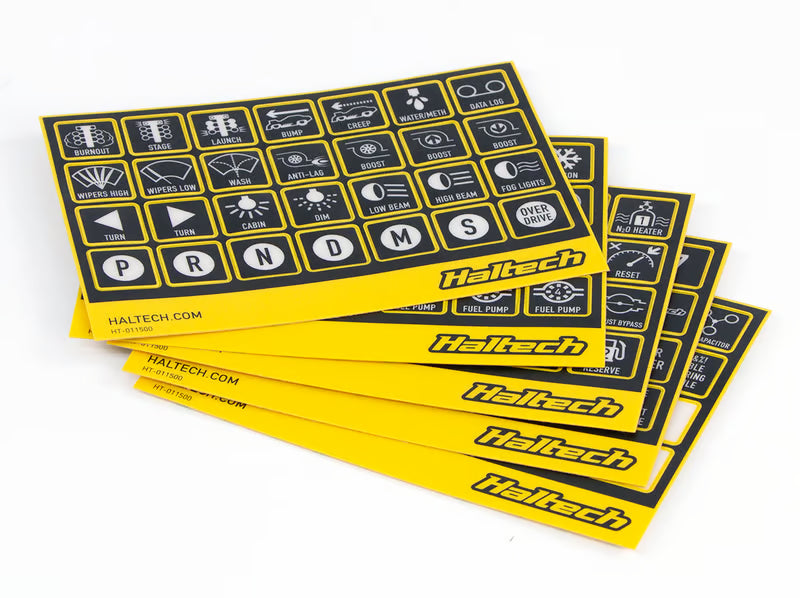

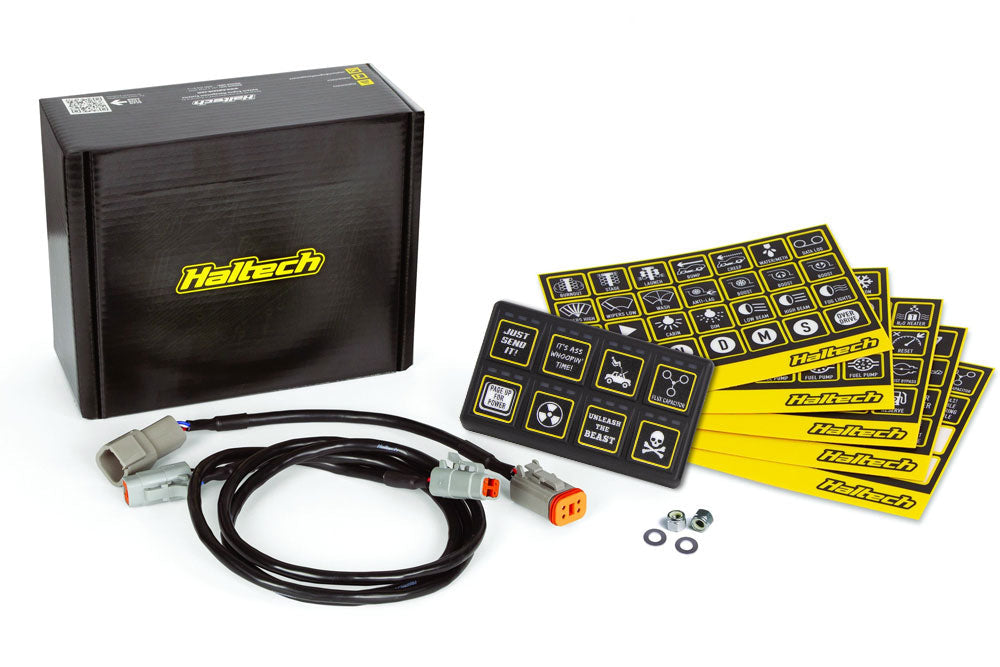

Both kits include the keypad, DT-4 to DTM-4 adaptor harness, 1200mm DTM-to-DTM CAN cable, mounting hardware and multiple label sheets.

Compatibility: Haltech lists these keypads for Nexus and Elite devices; they are not compatible with Platinum or earlier ECUs.

Current Selectable Options

Keypad Size: 8 Button / 2 x 4, 15 Button / 3 x 5

Choose only combinations shown as available in the selectors; unavailable combinations cannot be added to cart.

Ordering & Fitment

This listing is for Haltech CAN Keypad. Confirm the vehicle, engine, dimensions and supporting components against your application before ordering where fitment is application-specific. If you require a configuration that is not shown, contact Built by Boost & Tune before purchase.
