Haltech iC-7 Digital Dash

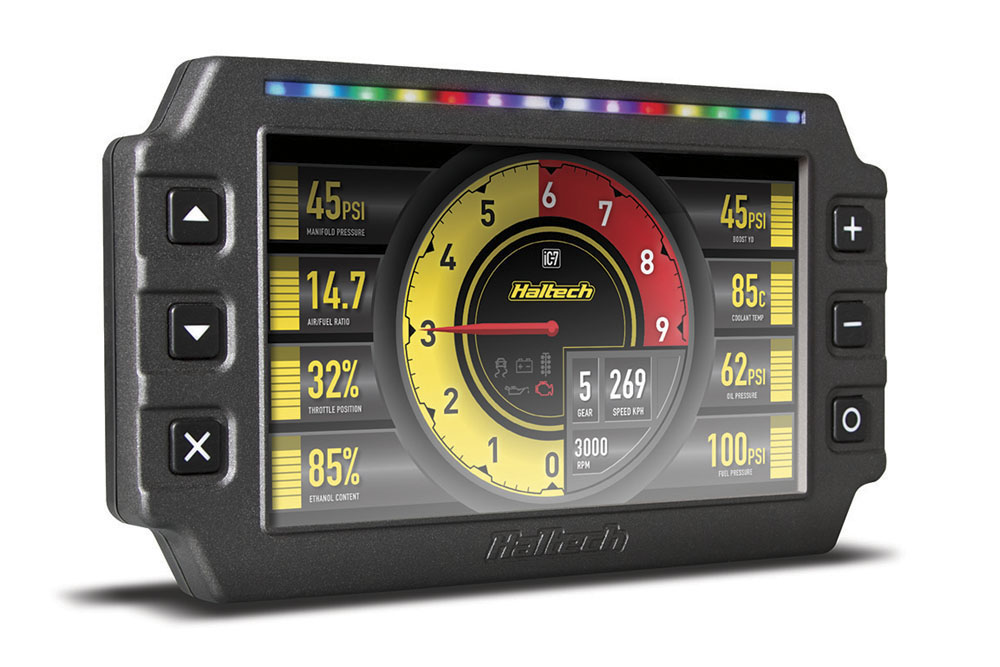

Haltech iC-7 Digital Dash is a 7-inch full-colour display and data-logging solution designed to integrate directly with current Haltech ECUs over CAN while also supporting a range of recognised third-party ECU protocols.

Key features

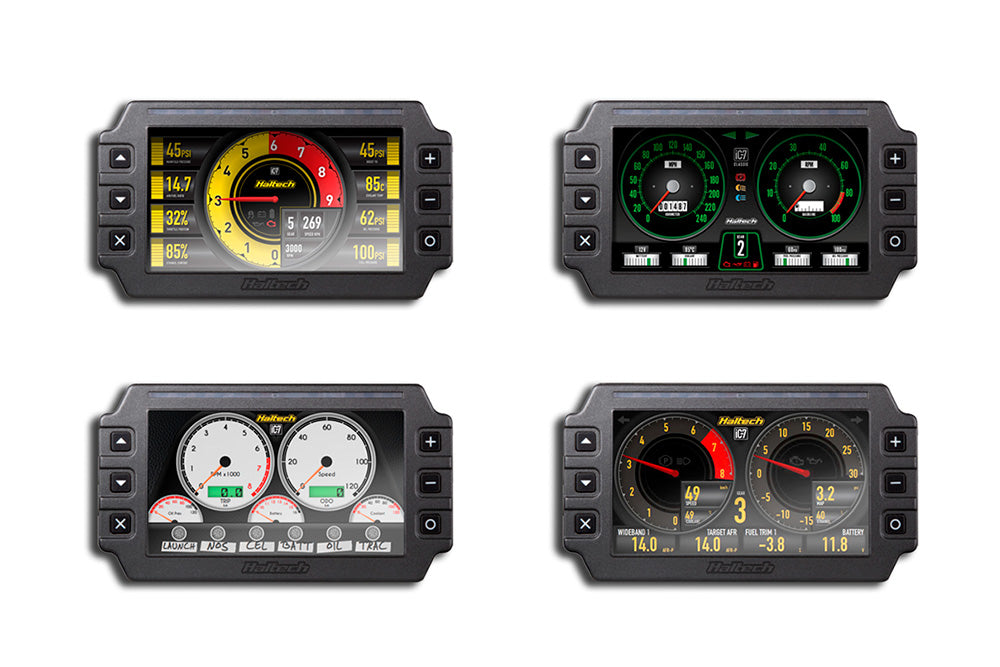

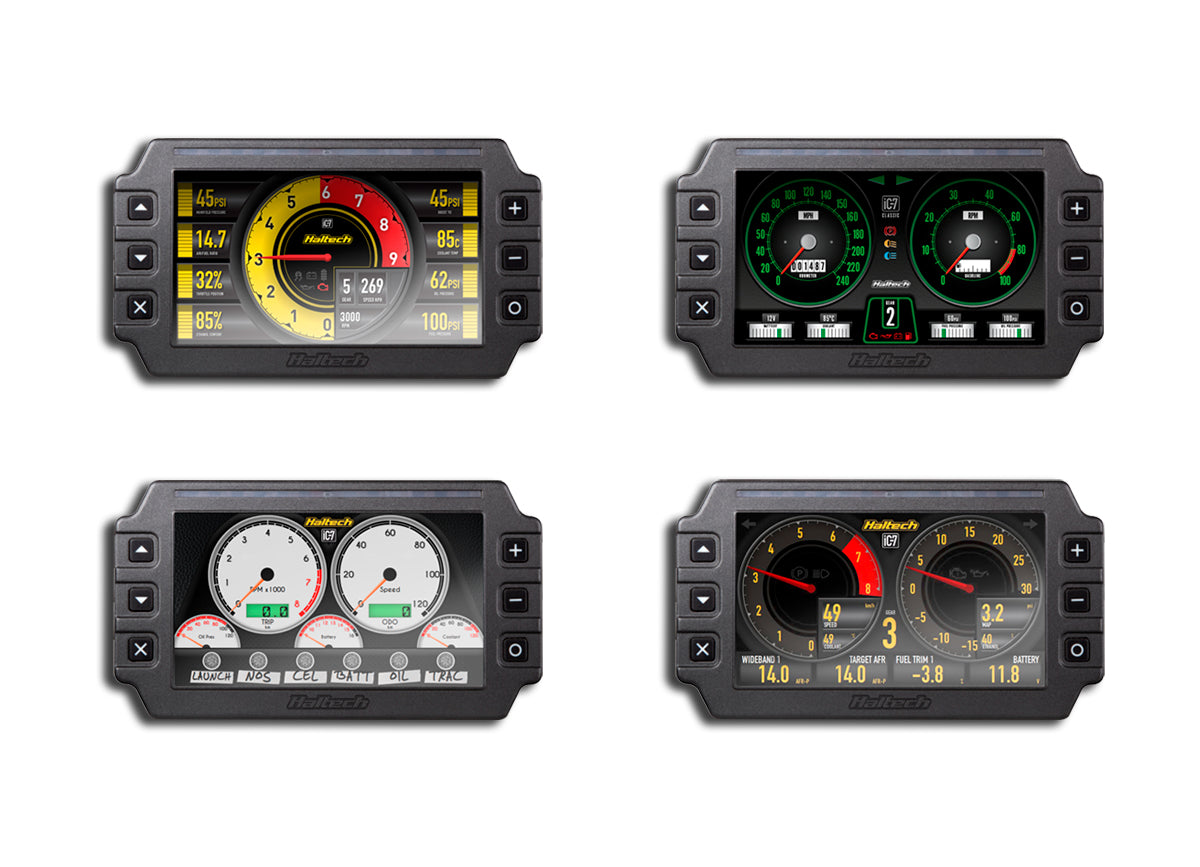

• Full-colour 7-inch display with configurable channels, units and alarms.
• 14 programmable seven-colour shift-light LEDs.
• 512MB onboard data logging.
• Automatic ambient-light-reactive dimming plus manual brightness adjustment.
• 9 analogue voltage inputs, 3 digital pulsed inputs, 1 tachometer input and 4 digital pulsed outputs.
• Face-mounted control buttons for convenient driver interaction.
• USB configuration and IP64 dust/water-splash protection.

Select your package

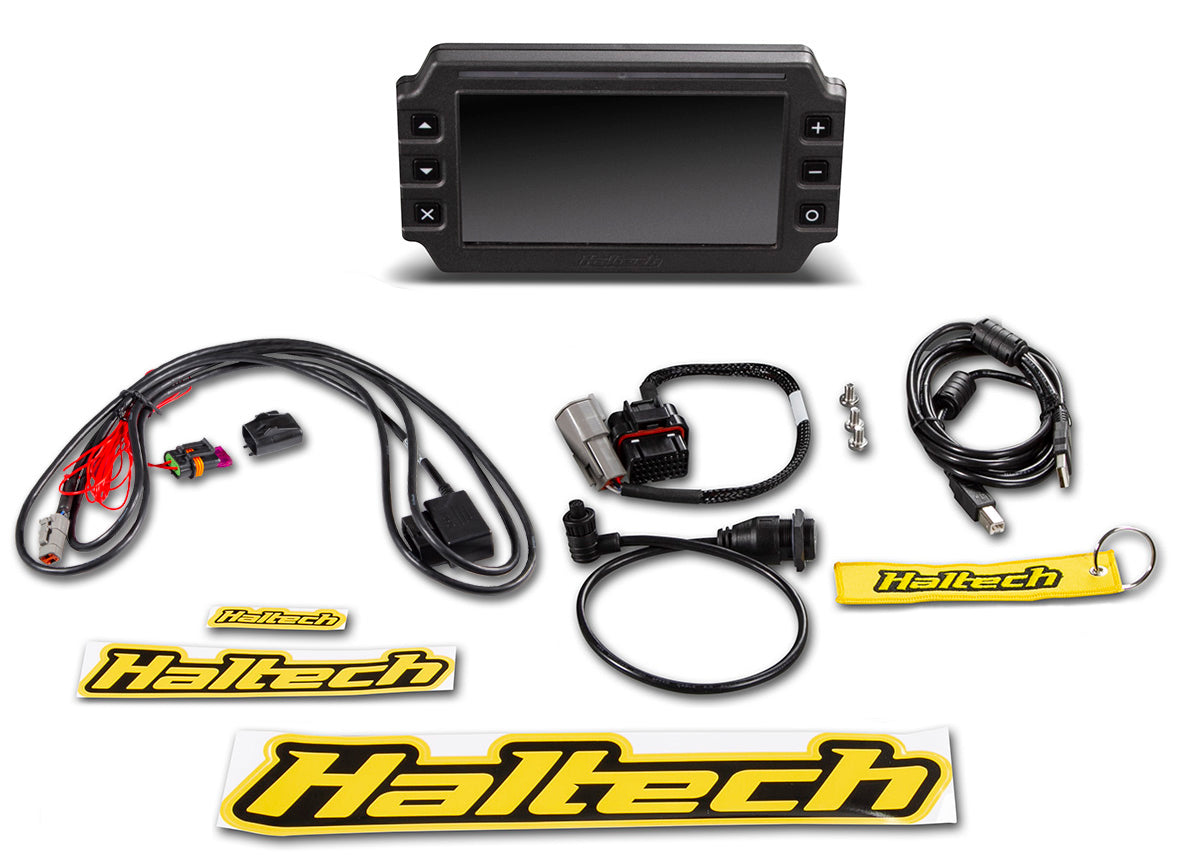

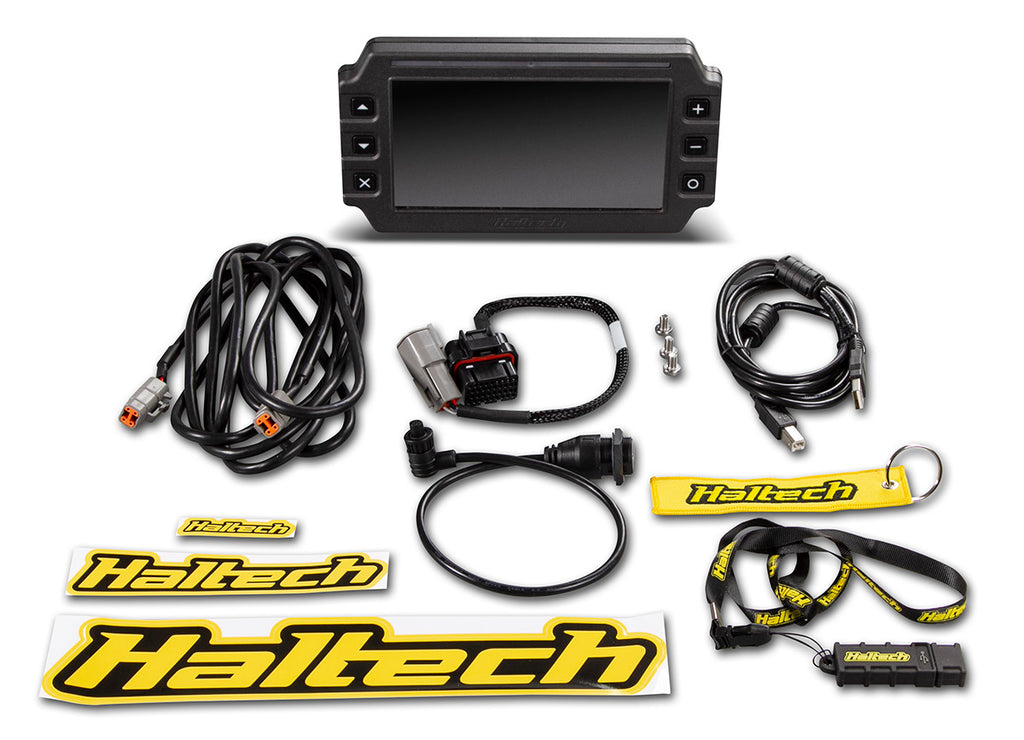

• iC-7 Digital Dash Kit — HT-067010: intended for CAN integration with current Haltech ECUs and supported third-party ECU protocols. Includes the dash, 34-pin main connector harness, 3m DTM-4 CAN extension cable, USB/M5 interface hardware and mounting hardware.

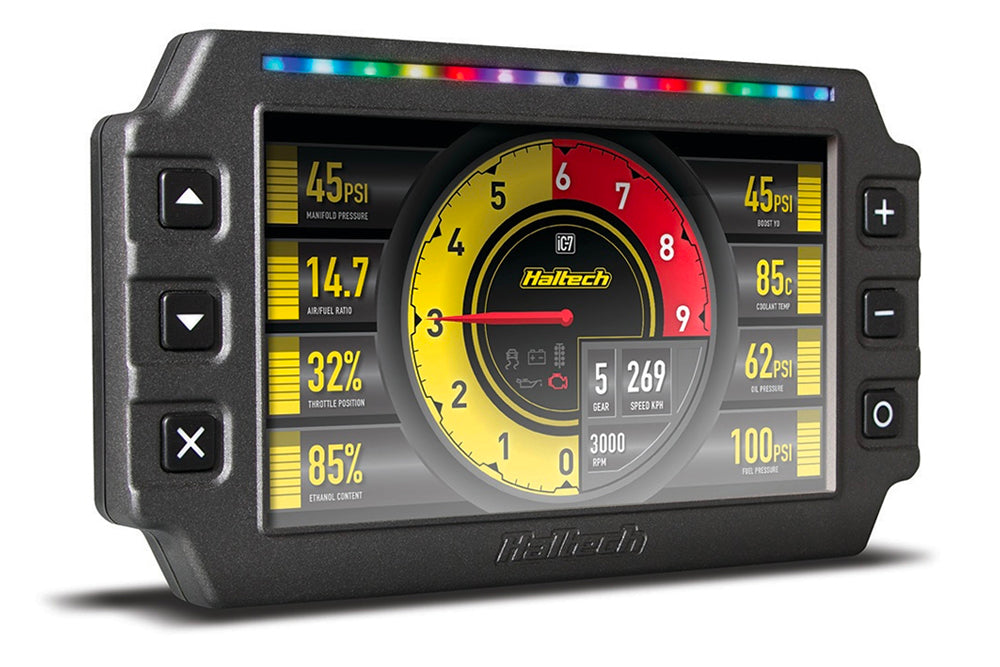

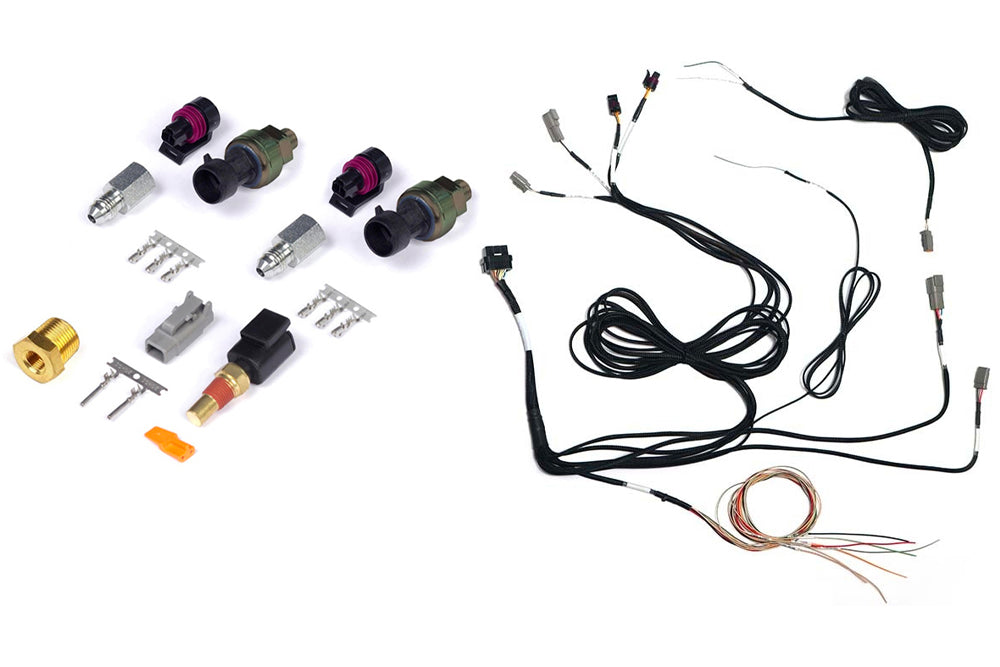

• iC-7 Stand-Alone “Classic” Kit — HT-067014: adds the semi-terminated stand-alone harness and sensor package for carbureted, mechanically injected or other vehicles without an engine ECU. The kit includes coolant-temperature sensing and two 0–150 PSI pressure sensors.

Choose the required package from the selections on this product page. Each option carries its own Haltech part number, displayed price and matching product image.

Installation

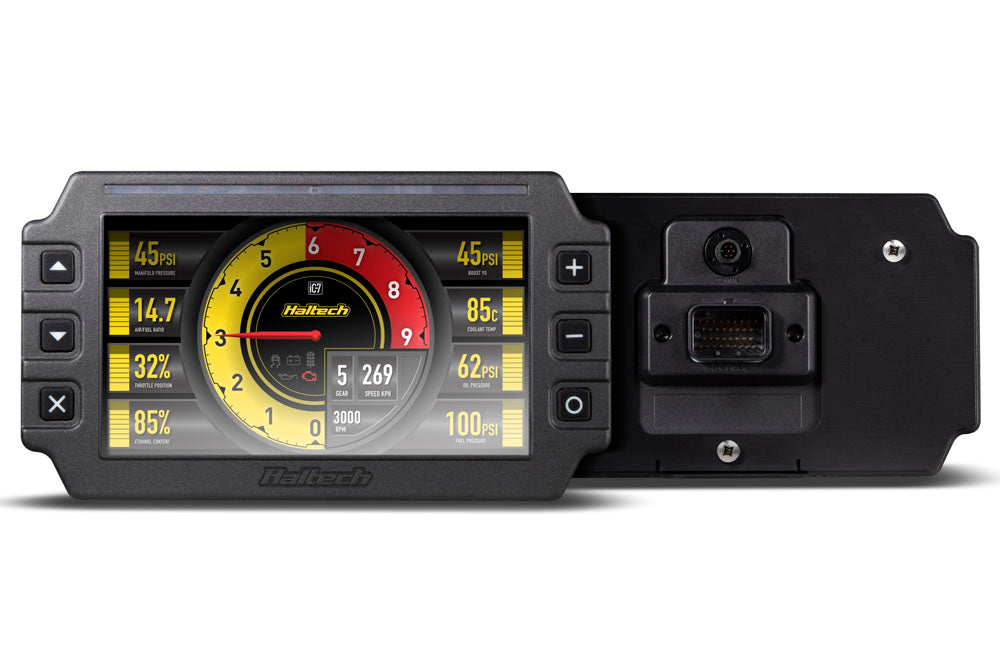

CAN installations require the correct CAN cable/protocol configuration. Stand-alone installations require appropriate sensor wiring, calibration and vehicle-signal configuration. Optional mounts, camera and additional CAN devices can be integrated where required.

Built by Boost & Tune support

Built by Boost & Tune is an authorised Haltech dealer. Professional dash installation, CAN wiring, sensor setup, display configuration and ECU integration are available.

Supplier

Haltech

Product System

• Wiring Sensors Displays

Available Options

Package

• Digital Dash Kit
• Stand-Alone Classic Kit

Generic CAN (GCAN) — Current Beta Feature

Haltech identifies this Nexus ECU / display platform as eligible for Generic CAN (GCAN), its user-programmable CAN messaging feature. GCAN is provided at no additional licence cost on eligible Nexus hardware and can also be enabled on existing eligible units through the applicable firmware update.

• Create custom CAN messages for supported third-party devices and systems.
• Useful for OEM dash retention, CAN sensors, steering-wheel / switch controls, ABS data, loggers and other custom CAN integrations.
• Haltech currently specifies support for up to 30 CAN frames and 200 signals.

Important: GCAN is currently released by Haltech as a beta feature. Access requires opting into the applicable beta software / firmware through NSP. Check Haltech's current GCAN release instructions before updating, back up the existing configuration first and verify all connected-device operation after the update.
