Haltech TMS-4 Tyre Pressure & Temperature Monitoring

Haltech TMS-4 Tyre Monitoring System - Internal Sensors - HT-011600

$293.02

Haltech TMS-4 Tyre Monitoring System is a plug-and-play CAN tyre-pressure and tyre-temperature monitoring system for compatible Haltech Nexus and Elite systems using NSP or ESP software.

System capability

Monitors pressure, temperature and sensor battery voltage for four tyres.
Supports warnings/DTCs for high or low pressure, high temperature, air-leak detection, low sensor battery voltage and signal loss.
Typical update rate while the vehicle is moving is approximately 60 seconds.
Pressure range up to 116 psi / 800 kPa.

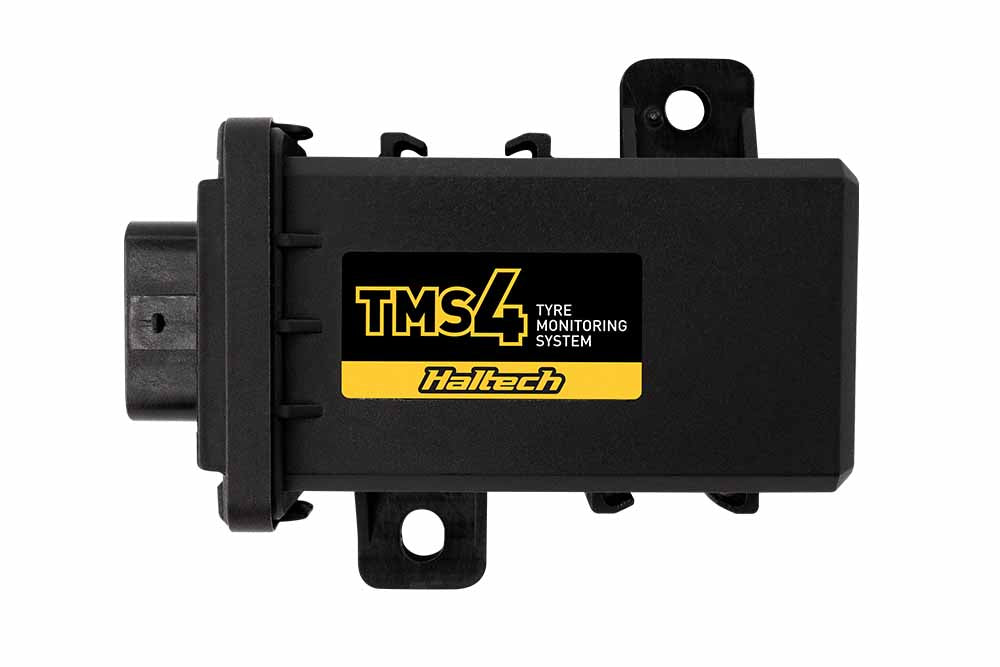

Receiver connects to the Haltech CAN network through the supplied TE MCON to DTM-4 cable.

Select the sensor style

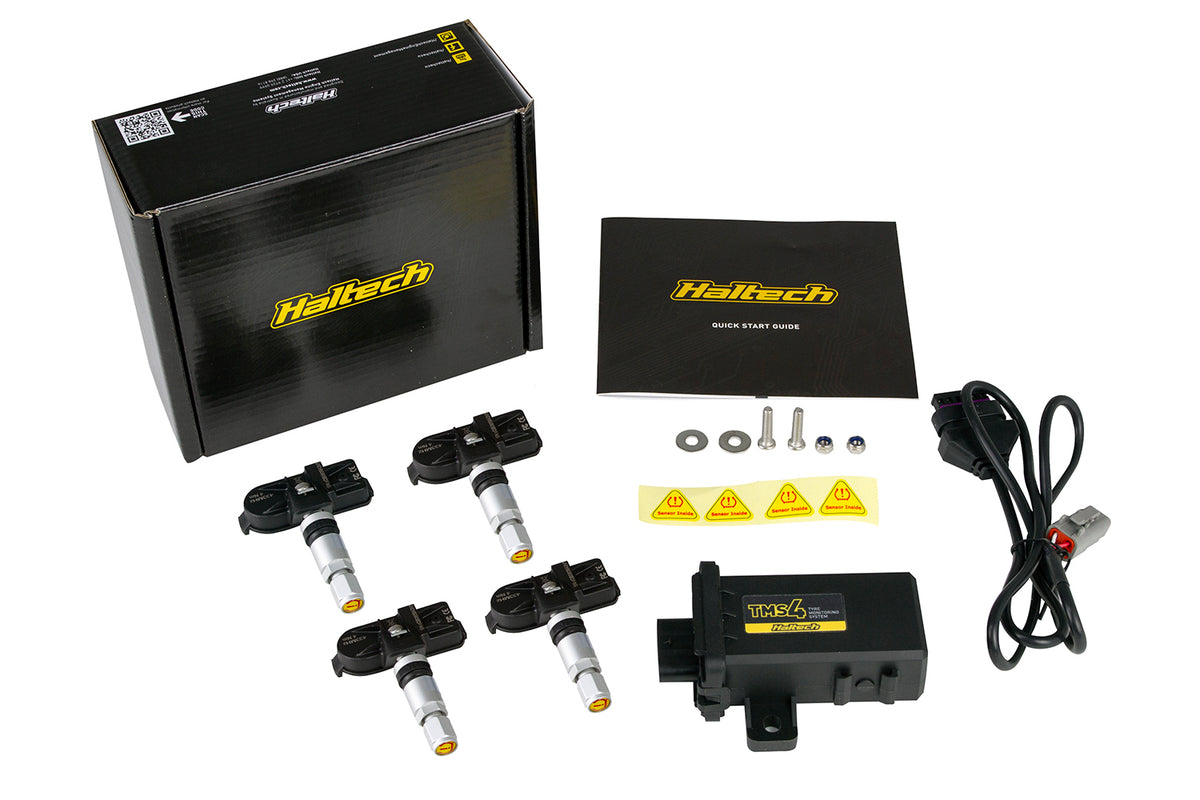

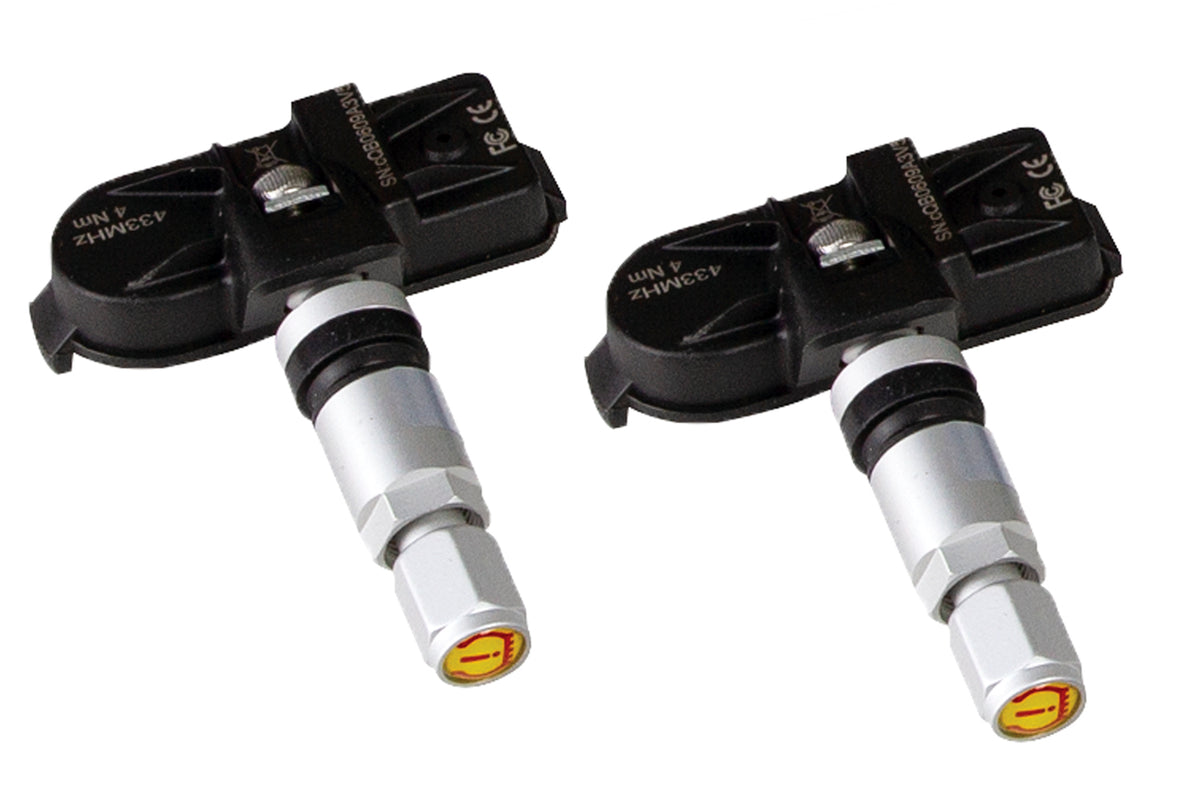

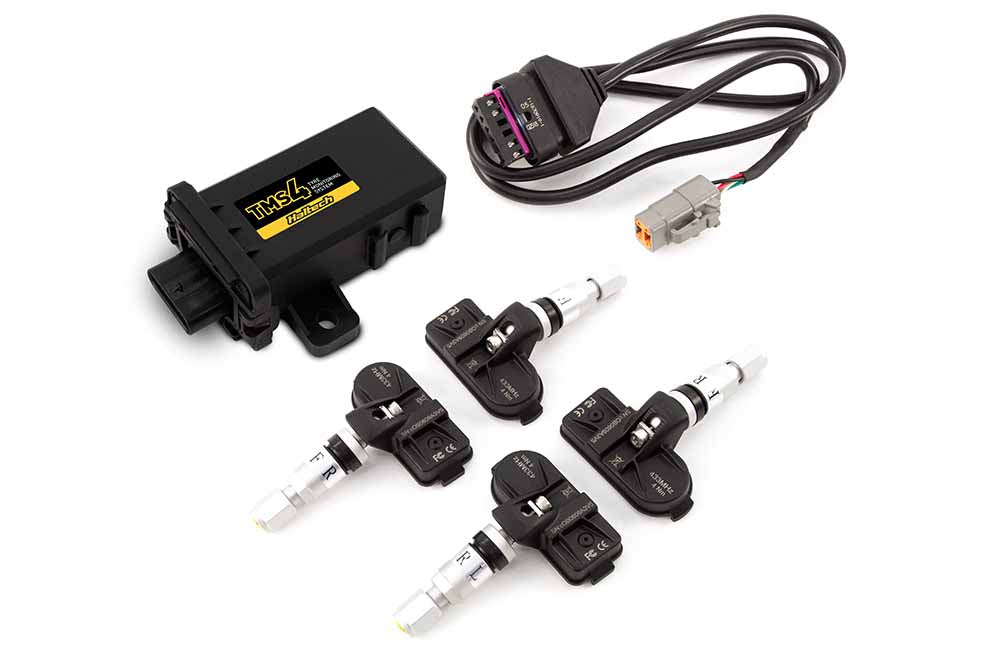

Internal Sensors — HT-011600: four internal valve-mounted sensors. Batteries are included and non-replaceable, with Haltech quoting an average life around three years.

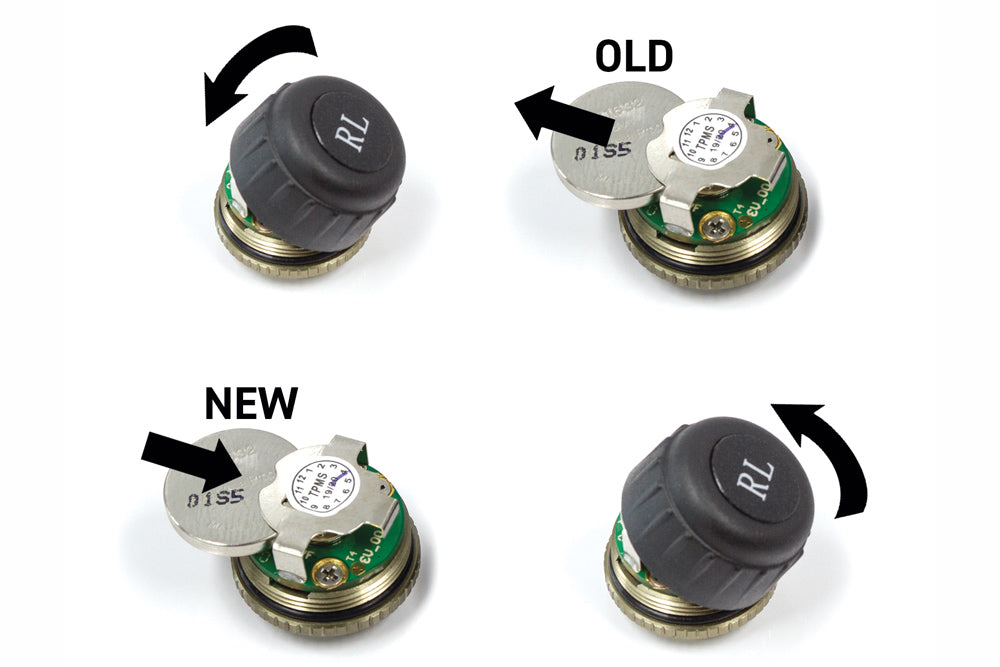

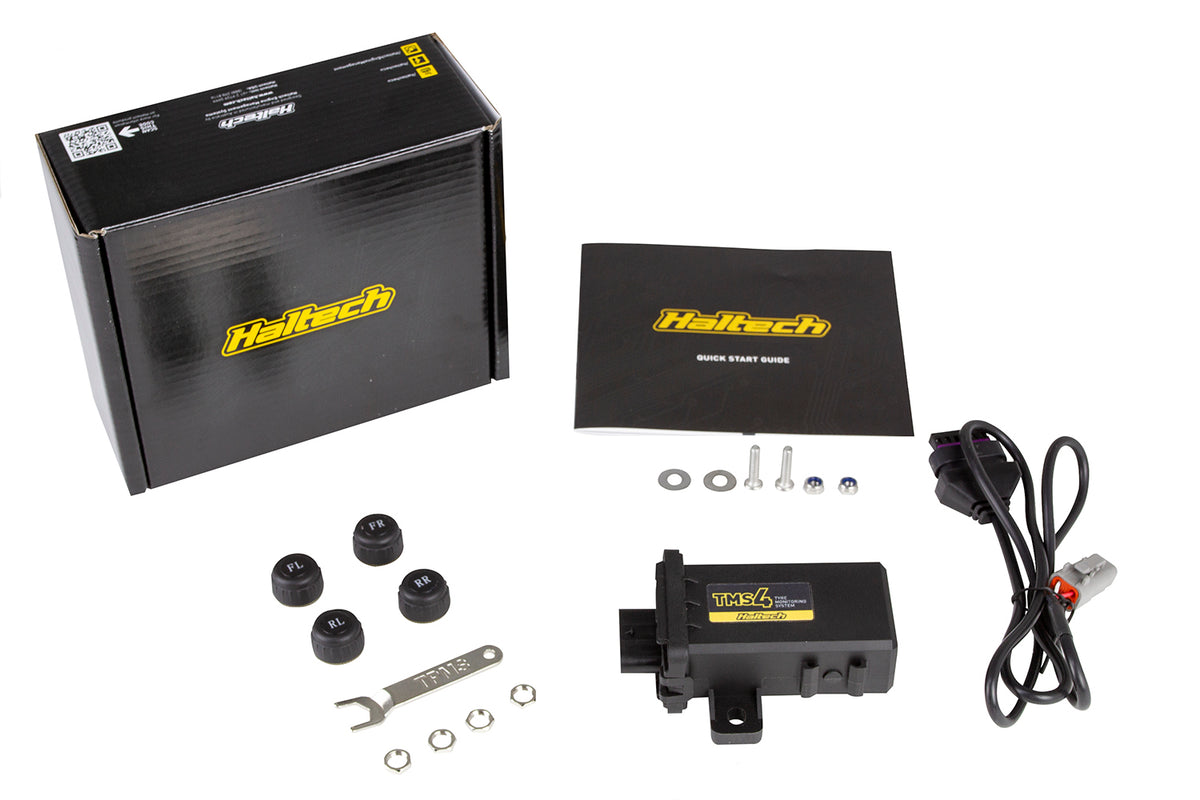

External Sensors — HT-011601: four valve-stem-mounted external sensors with anti-theft lock nuts and spanner. CR1632 batteries are replaceable and typically last around one to two years.

Choose internal or external sensors from the selections on this product page. Each option retains its own Haltech SKU, displayed price and matching image.

Current Selectable Options

Sensor Type: Internal Sensors, External Sensors

Choose only combinations shown as available in the selectors; unavailable combinations cannot be added to cart.

Ordering & Fitment

This listing is for Haltech TMS-4 Tyre Monitoring System. Confirm the vehicle, engine, dimensions and supporting components against your application before ordering where fitment is application-specific. If you require a configuration that is not shown, contact Built by Boost & Tune before purchase.
