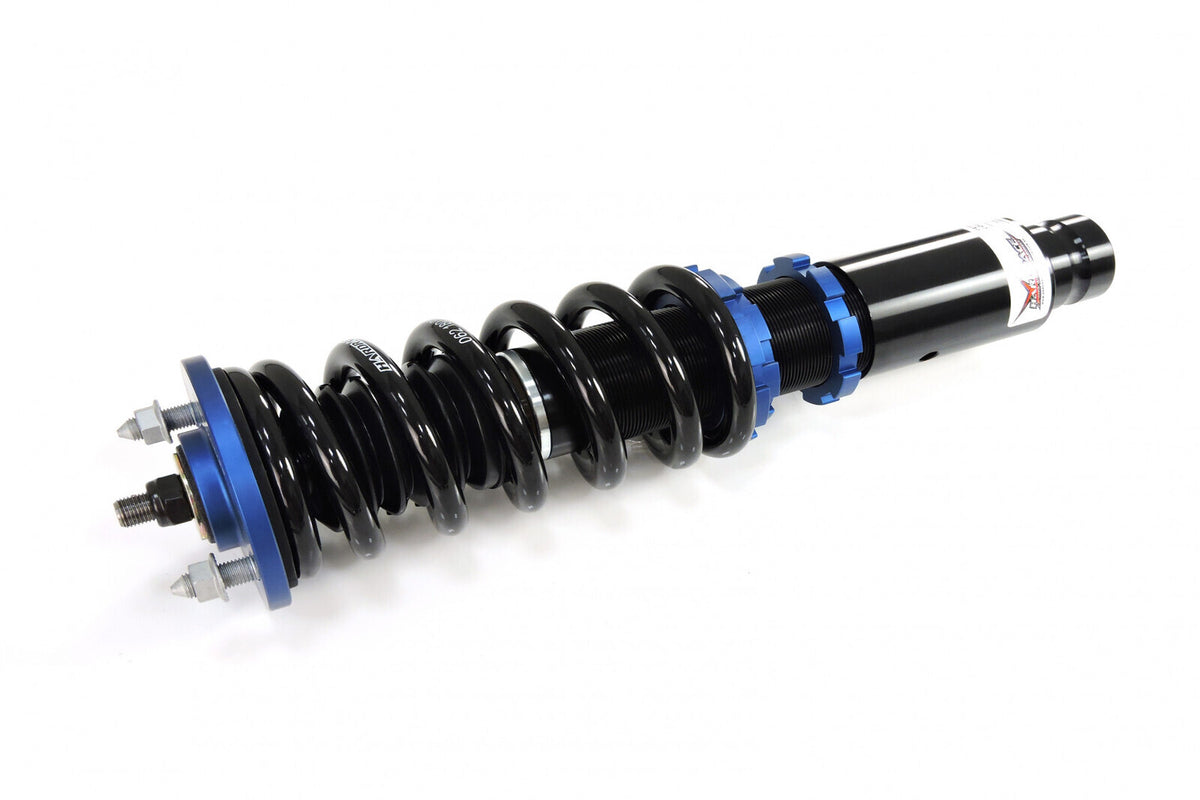

Hardrace HS Spec Coilover Kit – Toyota Chaser / Mark II JZX100 (HSJZX100-R)

Hardrace HS Spec Coilover Kit – Toyota Chaser / Mark II JZX100 (HSJZX100-R)

Overview and Features

Piston size: 44mm diameter piston

• Damper Adjustability: 33 level damping force adjustable. With every 2-3 levels change you can feel the difference in damping force
• Damper Material: 52mm diameter damper body made with high strength steel then coated with electroplating treatment to prevent rust and corrosion to ensure damper can withstand the harsh motorsport conditions. High quality oil seals are utilized to withstand high temperatures and to prevent oil leaking. The piston rod is made from high quality S45C steel and is processed with Thermal Refining and High-frequency Induction Hardening Treatments for rigidity and durability
• Oil Material: High quality specific formulated damper oil is used. It prevents foaming, and also provide constant viscosity under any working temperature conditions. So the damper won't lose damping abilities under high temperature
• Spring: All springs are made from high quality SAE9254 steel for optimal durability and high tensile strength

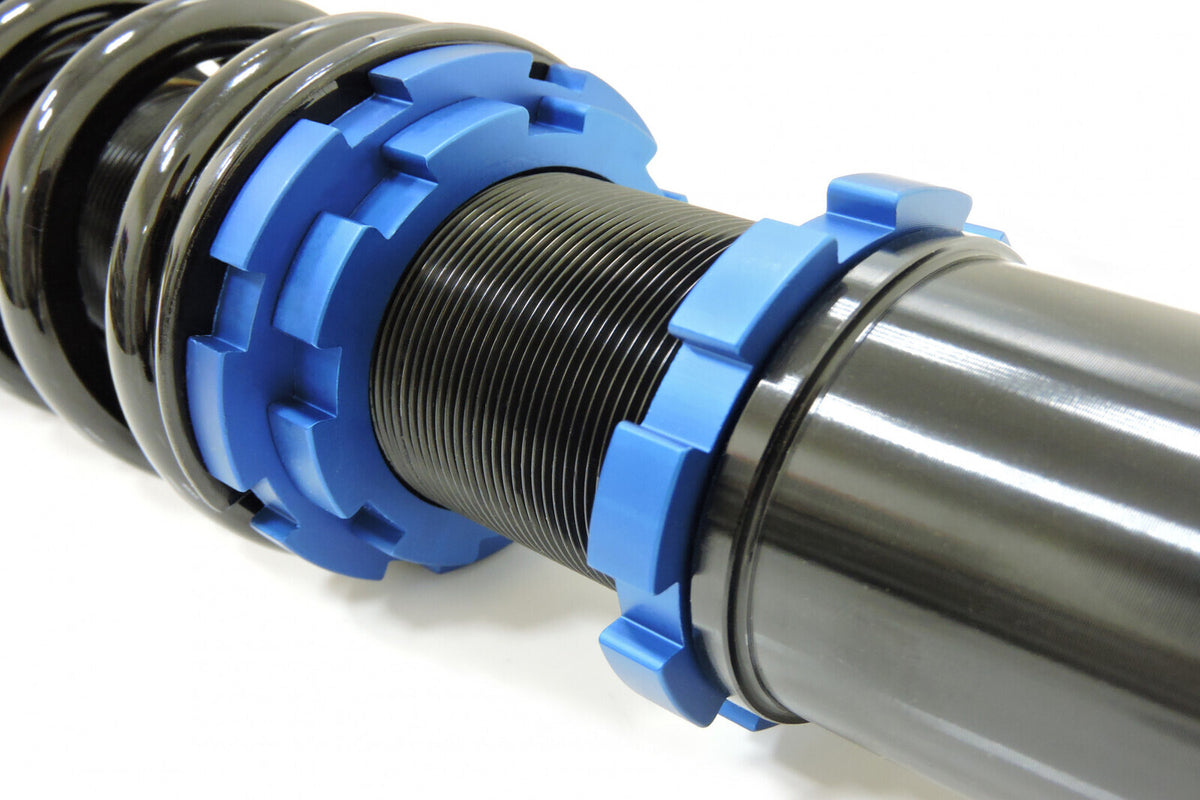

• Wave Spring Washer: For MacPherson strut, wave spring washer is installed between lower locking collar and bottom mount. It provides extra friction between lower locking collar and bottom mount to effectively prevent the bottom mount from spinning around or becoming loose
• Image may not be actual model, just a generic representation of the quality and finish you will receive

Vehicle Fitment

• Toyota — Chaser / Mark II — JZX100 — 1JZ
• Toyota — Chaser / Mark II — JZX100 — 1JZ-GTE VVTi

Installation Requirements

Confirm the chassis and suspension configuration before ordering. Use the supplied fixed spring specification, set ride height and check wheel and suspension clearance through full travel. Arrange a wheel alignment after installation. Product images may be illustrative.

Specifications and Package Contents

• Hardrace part number: HSJZX100-R

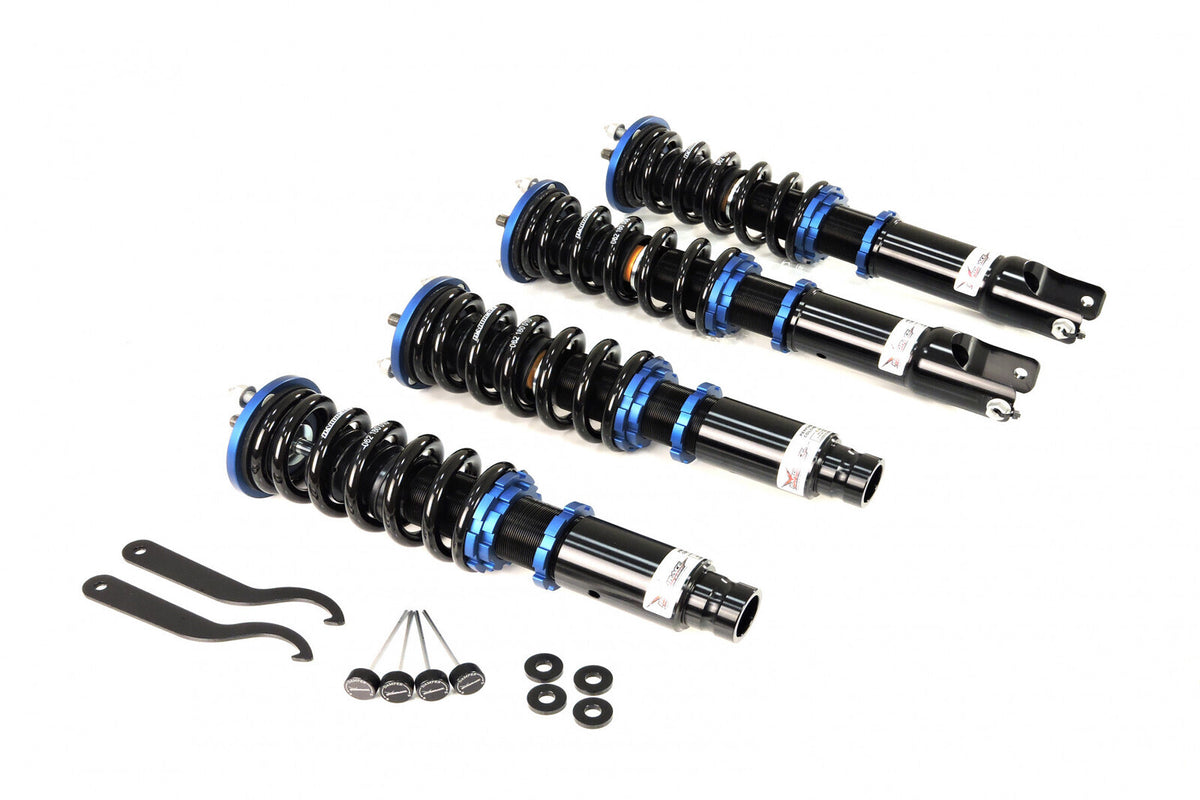

• 4-Piece Kit

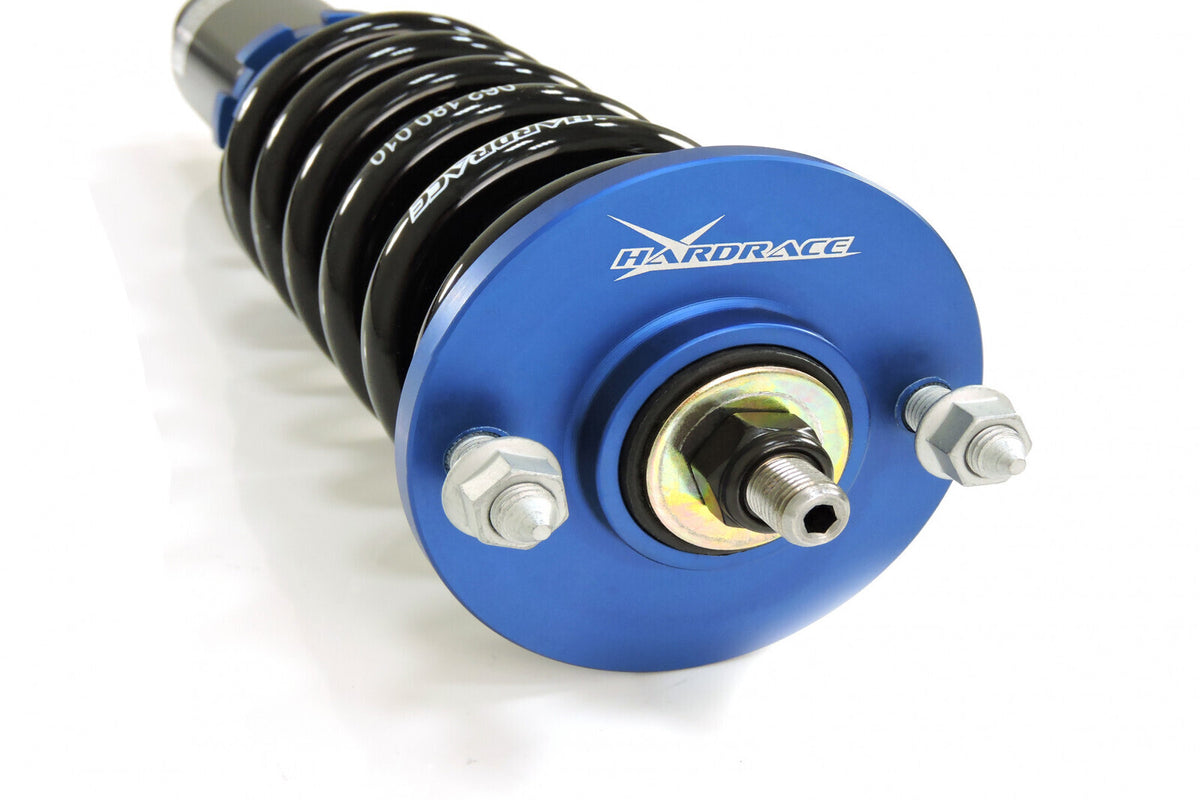

• Rubber Top Mounts
• 18K/8K

BBT Fitment and Workshop Support

Built by Boost & Tune is an authorised Hardrace dealer and point of fitment. BBT can install the kit, set ride height, check suspension travel and wheel clearance, and arrange a wheel alignment. Discuss road or track use before choosing spring rates and damping settings.

Contact BBT with your chassis, model year and suspension modifications for fitment assistance and current availability.
