Harrop Camshaft H02 | GM LS V8

Harrop H02 Camshaft | GM LS V8

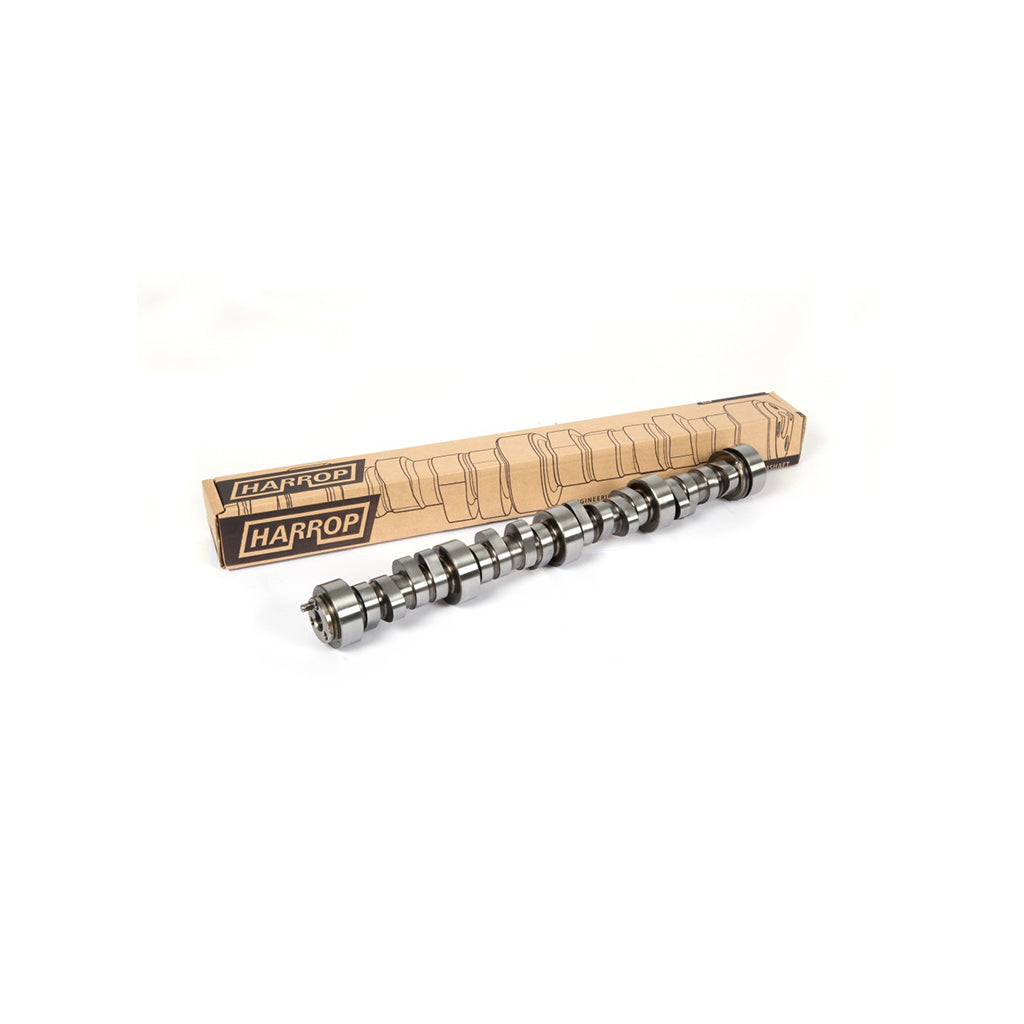

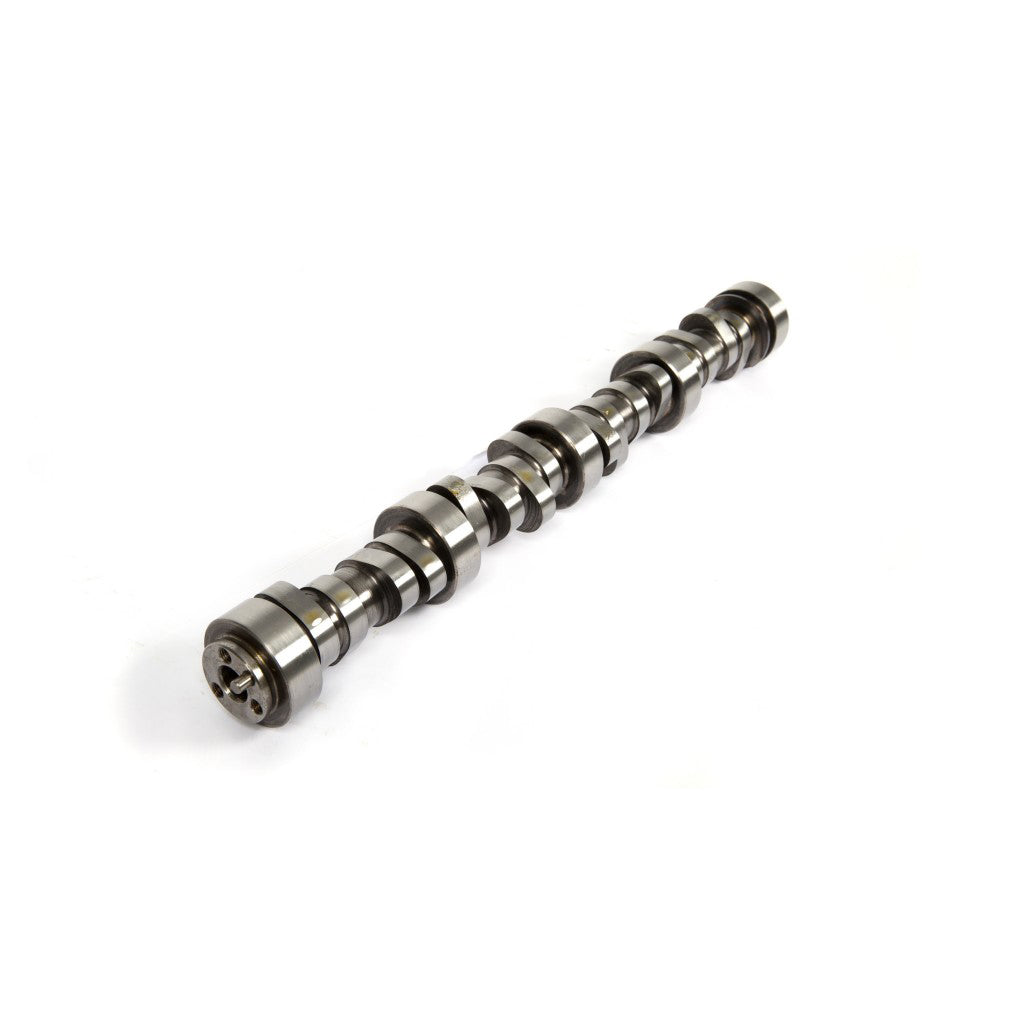

Harrop H02 LS camshaft for VT–VF Holden Commodore and HSV LS-series applications. Harrop positions the H02 as an all-round grind suitable for both naturally aspirated and supercharged combinations.

Harrop H02 specifications

• Duration: 224° intake / 232° exhaust
• Valve lift: 0.609" intake / 0.610" exhaust
• Lobe separation angle: 114°
• Product code: 65-LSCAM-H02

Application guidance

Harrop describes the H02 as offering a noticeably lumpy idle while retaining good drivability. Standard differential ratios can be retained on supercharged combinations; naturally aspirated vehicles can benefit from a shorter final drive. Harrop also recommends considering transmission cooling on automatic vehicles and clutch capacity on manuals.

Fitment

Holden Commodore VT–VF models including HSV variants fitted with compatible GM LS-series engines.

Camshaft installation requires correct valve-spring selection, pushrod length, piston-to-valve clearance checks where applicable and ECU calibration.
