Harrop RH Bias 120mm Front Cover Assembly | TVS2650

Overview

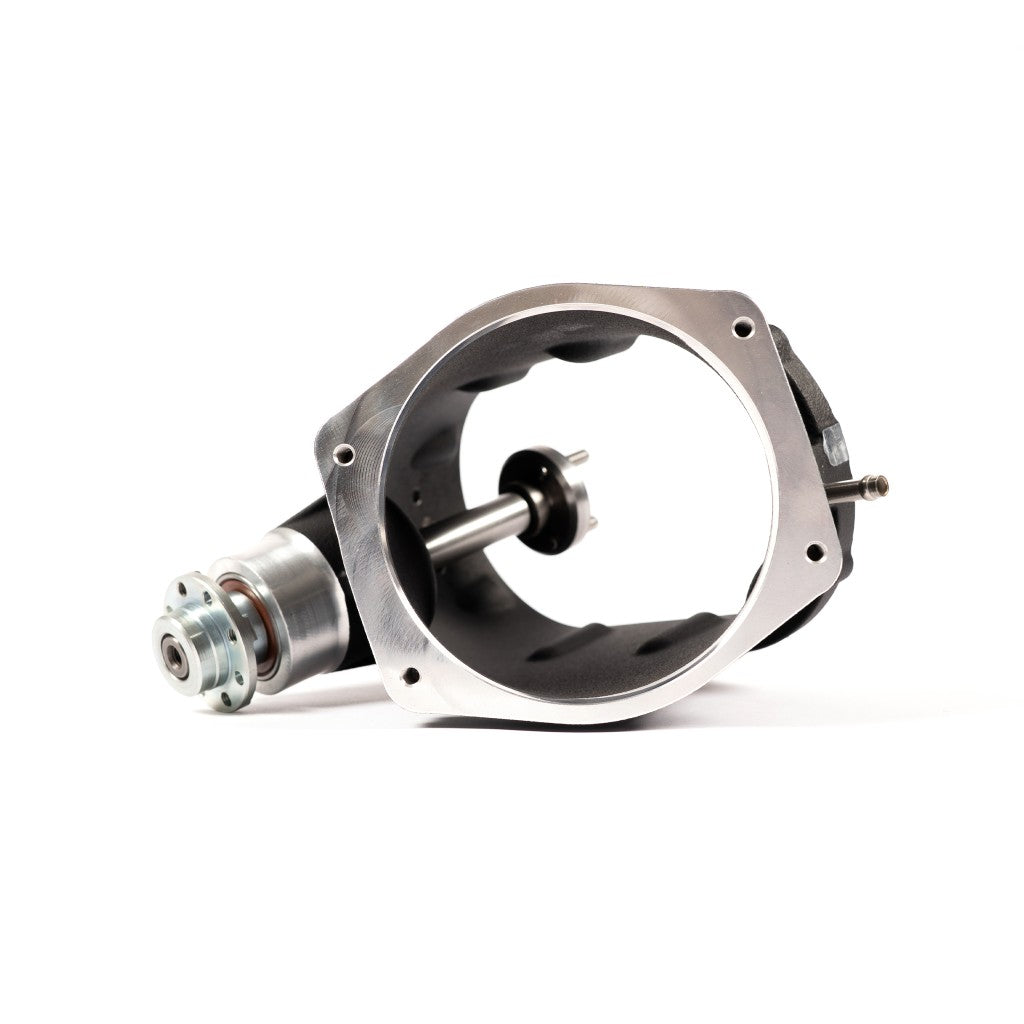

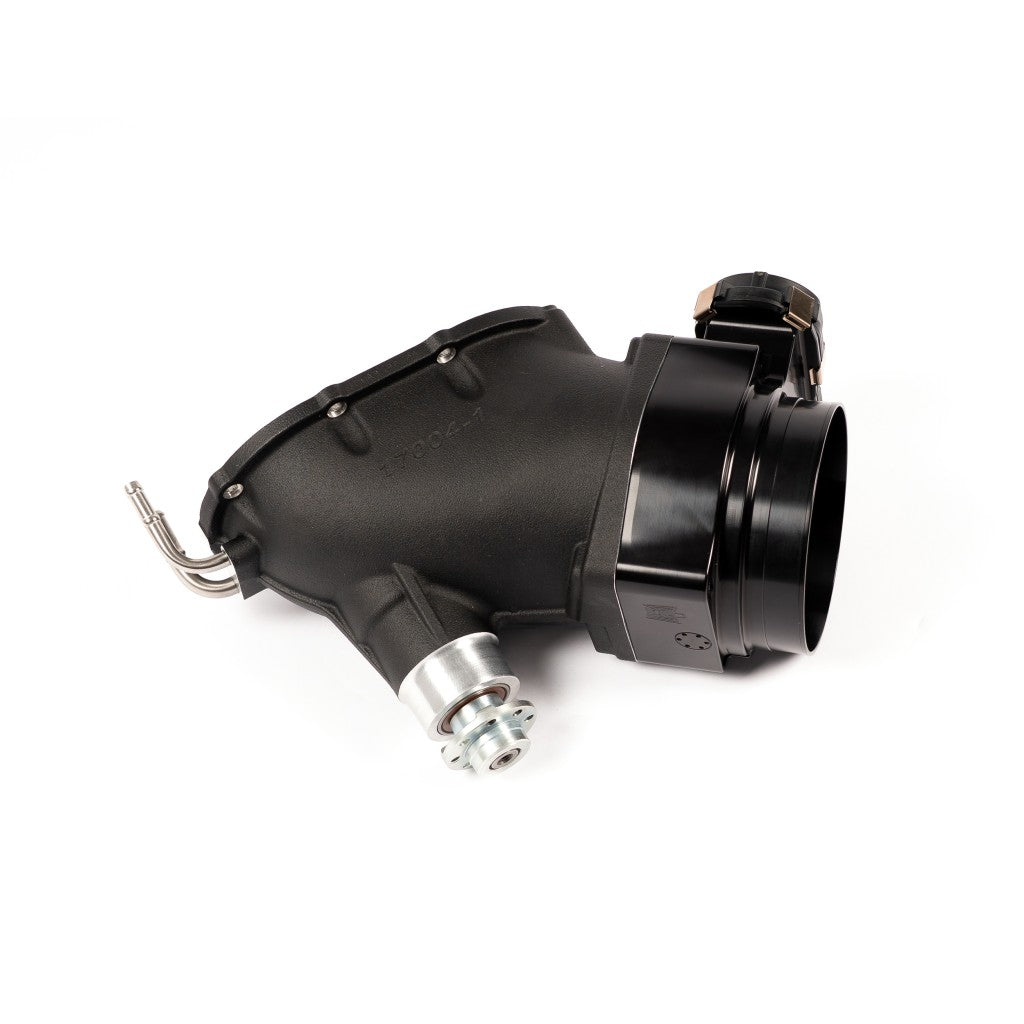

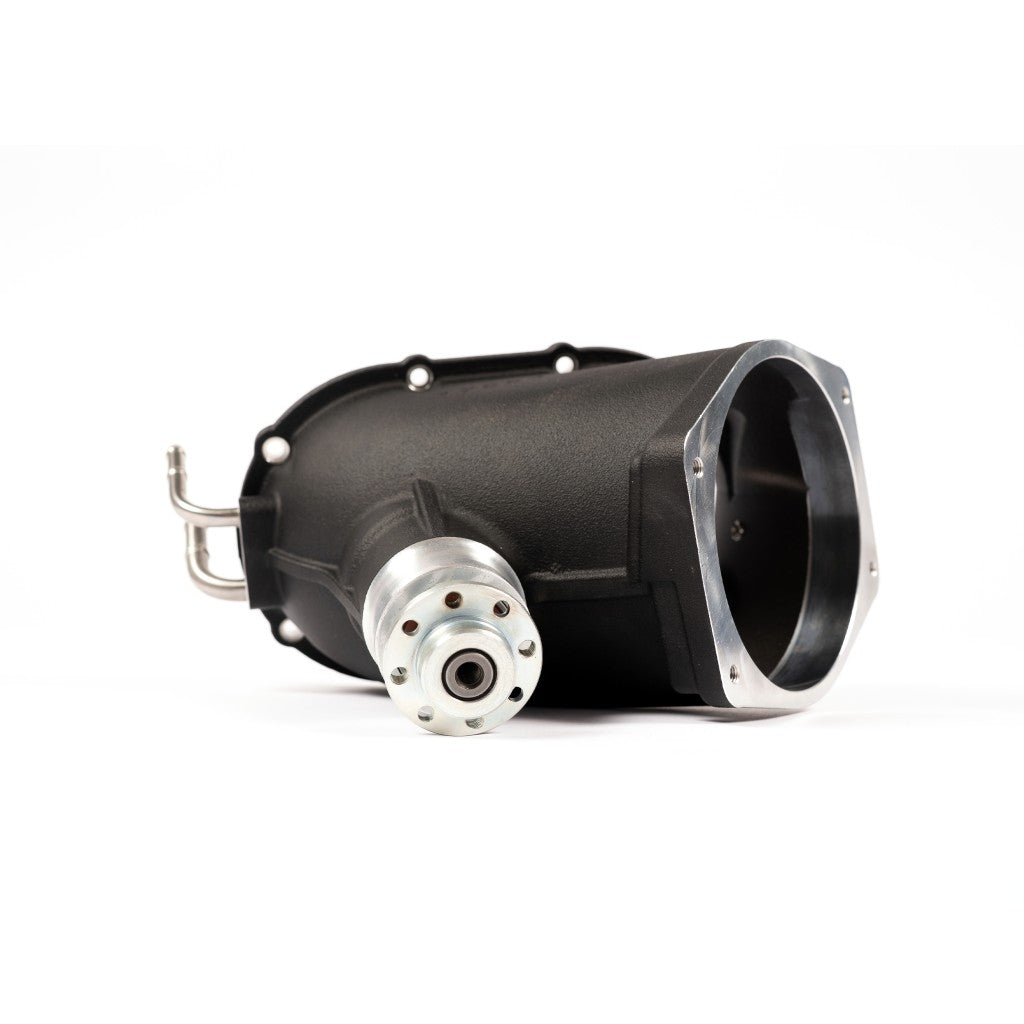

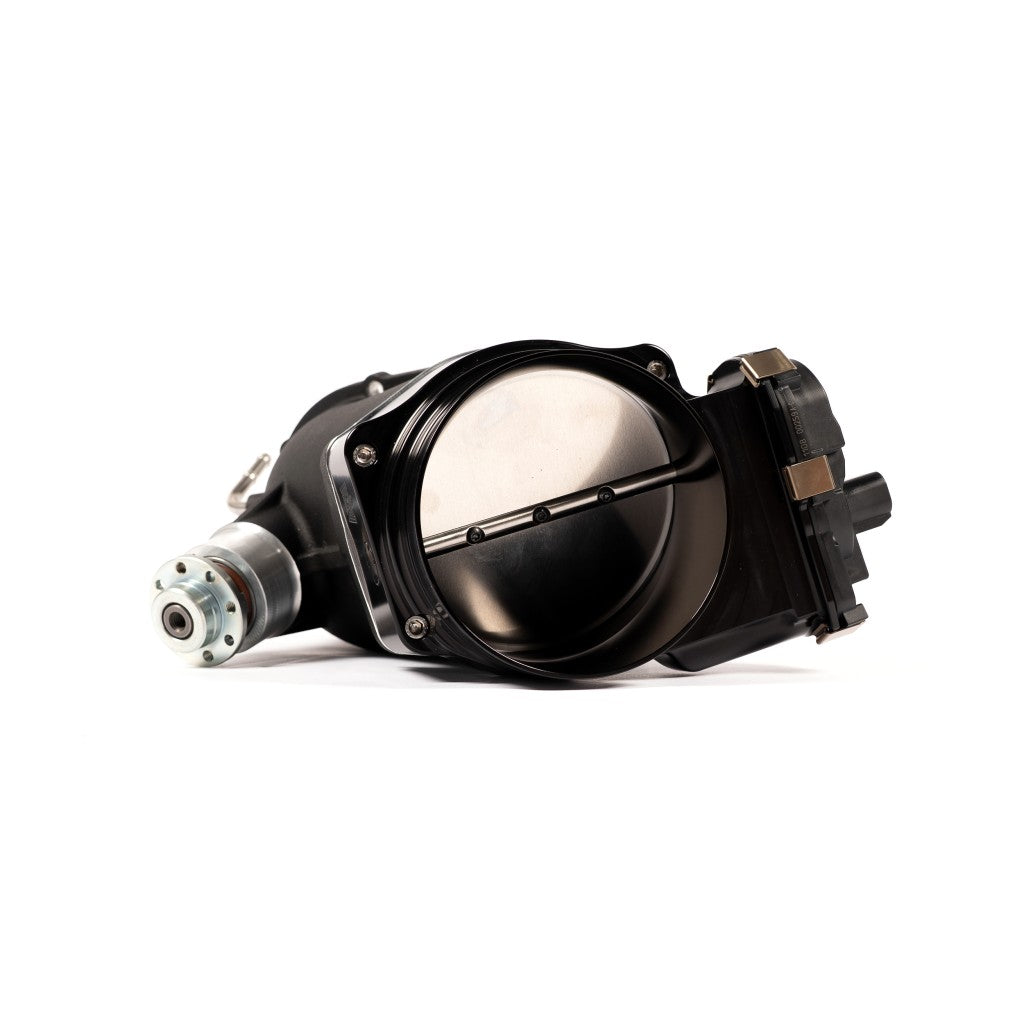

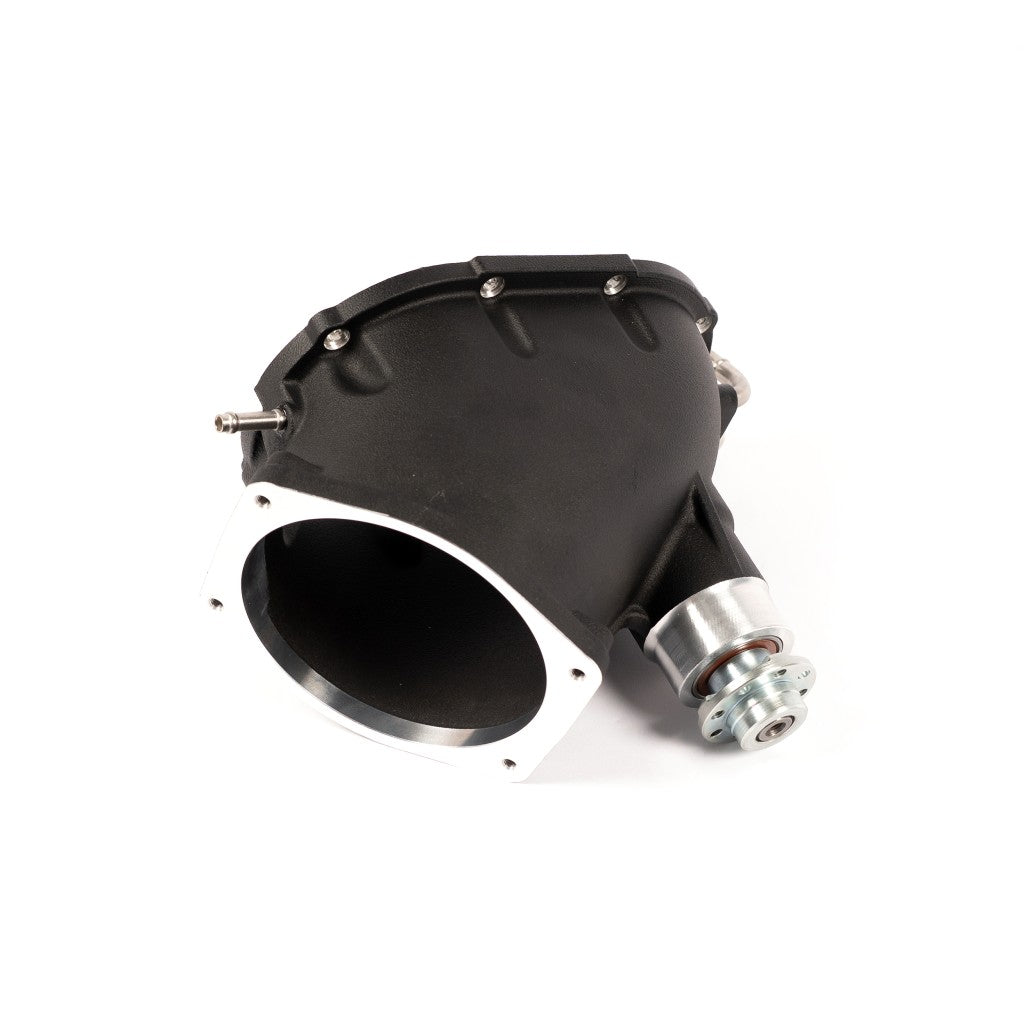

Harrop RH-Bias 120 mm Front Cover Assembly is a right-hand-facing supercharger front-cover option for high-flow LS / LT throttle-body configurations.

Configuration

Harrop technical documentation identifies 99-ACVR17002 as the RH-facing front-cover option intended for a 120 mm Nick Williams LS / LT throttle body. It is used on compatible Harrop TVS supercharger configurations where this inlet orientation and throttle-body package are specified.

Application Notes

• Right-hand-biased inlet orientation
• 120 mm throttle-body configuration
• Intended for compatible Harrop TVS supercharger packages, not as a universal standalone inlet

Installation Requirements

Confirm supercharger model, engine family, throttle-body type, adaptor requirements, bonnet / accessory clearance and inlet-pipe layout before ordering. ECU calibration must be appropriate for the selected throttle-body and airflow configuration.

Supplier Part Number

99-ACVR17002

Supplier

Harrop Engineering

BBT Support

Built by Boost & Tune can assist with complete supercharger inlet configuration, installation and calibration.
