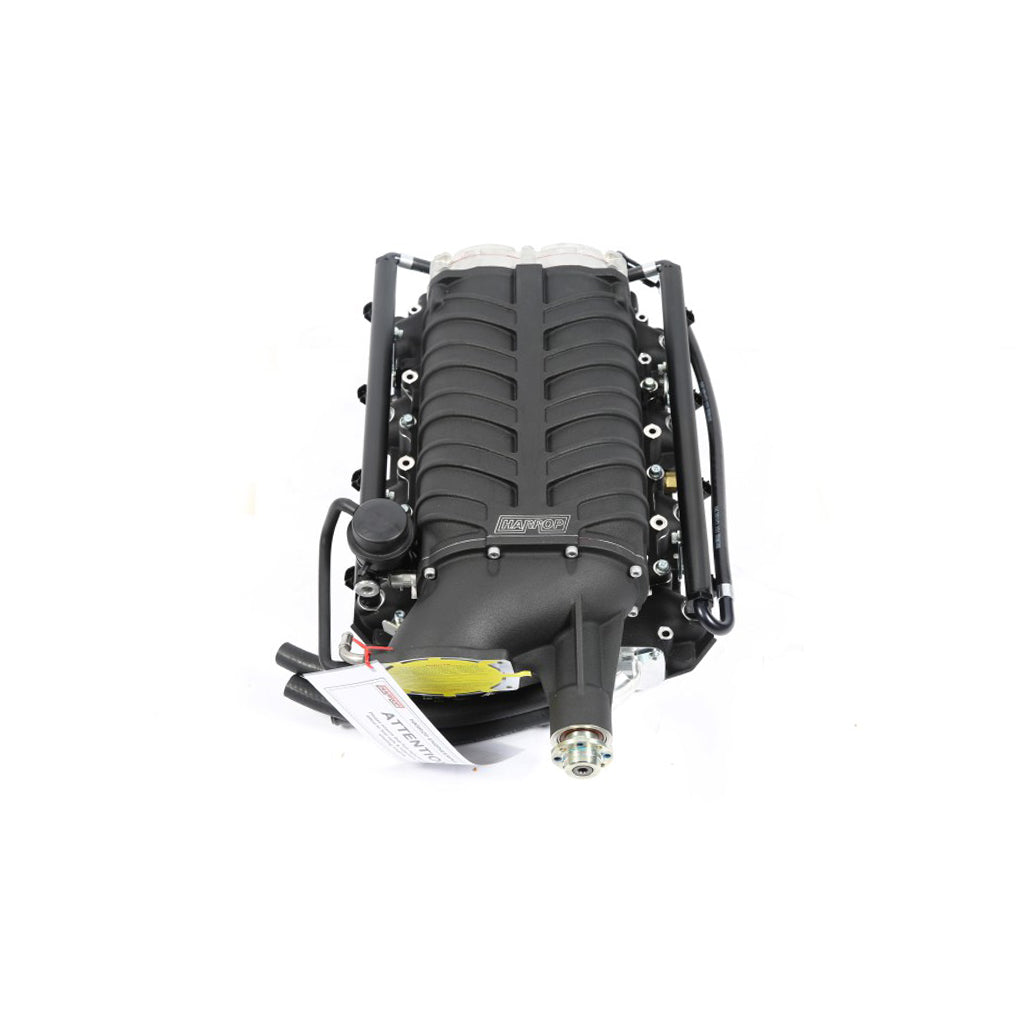

Harrop TVS2300 Chev LS Engine Kit

Harrop TVS2300 Chev LS Engine Kit

Harrop TVS2300 front-drive/front-inlet engine hardware package for compatible Chevrolet/GM LS engine combinations.

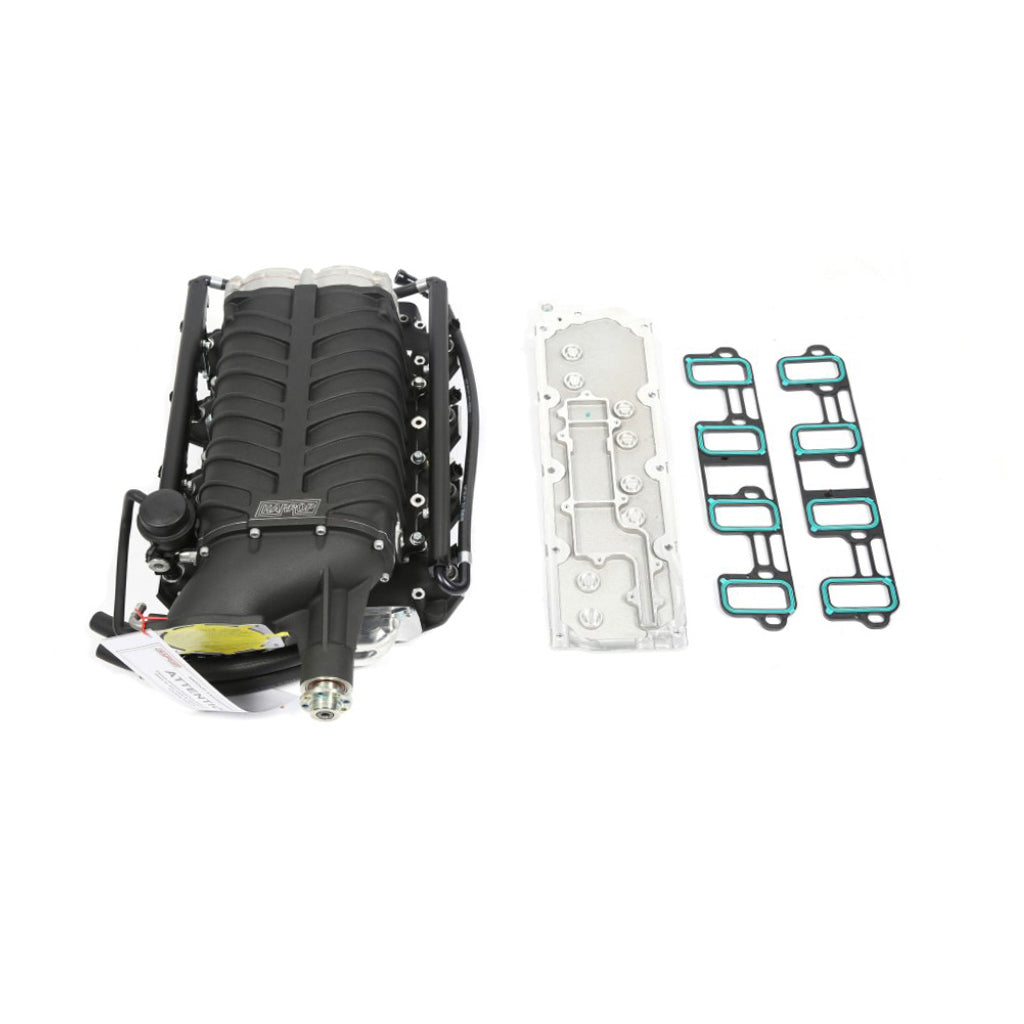

Harrop engine kit includes

• High-efficiency TVS2300 front-drive supercharger
• Complete inlet manifold with twin intercooler cores and fuel rails
• Gen 4 LS-type valley plate and bolts where applicable; LS1 is excluded from this item
• Inlet-manifold gaskets where applicable; LS7 is excluded from this item
• Manifold bolt set

The manifold system supports LS cylinder-head combinations using cathedral, rectangular or LS7 port shapes where the selected configuration is appropriate.

Not included in the base engine kit

• Cold-air intake or OTR intake
• Throttle body
• Supercharger pulley/belt drive system
• Patch looms or wiring harnesses
• Fuel injectors
• Front heat exchanger / intercooler circuit kit
• Vehicle-specific installation hoses, fittings and loom extensions
• MAP sensor

Important application note

This is an engine hardware kit rather than a vehicle-complete installation package. LS conversions may require additional or custom ancillary components. Vehicle packaging, accessory drive, fuel system, cooling system, intake, wiring and calibration must be confirmed for the intended installation.
