HFM.Parts 324mm Front Brake Upgrade Kit – Nissan S13 / S14 / S15 / R32 GTS-T
$595.84
Overview

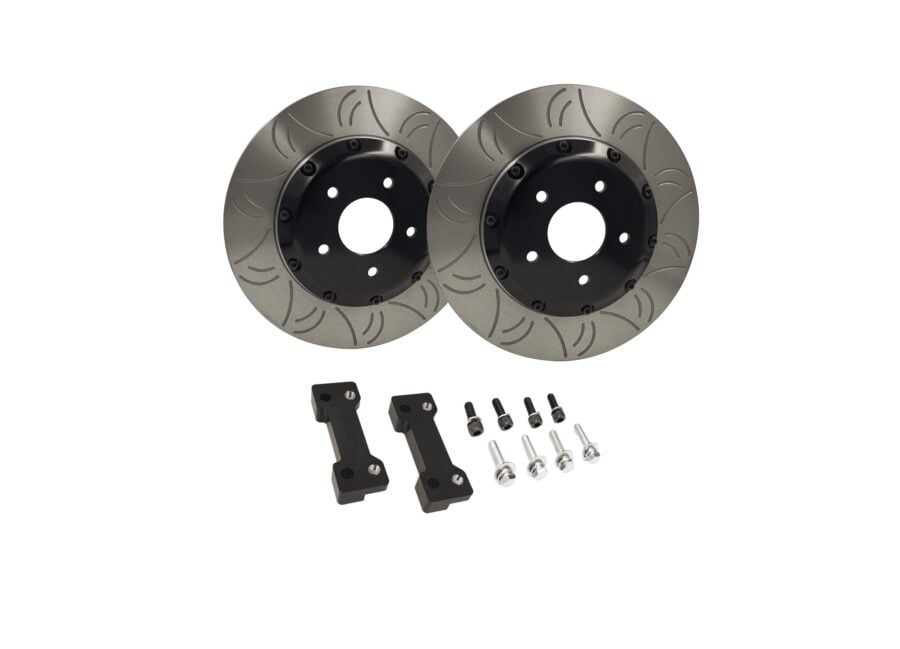

HFM.Parts 324 mm Front Brake Upgrade Kit — S13 / S14 / S15 / R32 GTS-T is a big-rotor conversion designed around HFM's 324 mm rotor and application-specific caliper adaptors while retaining the supported four-piston caliper arrangement.
Current HFM Configuration

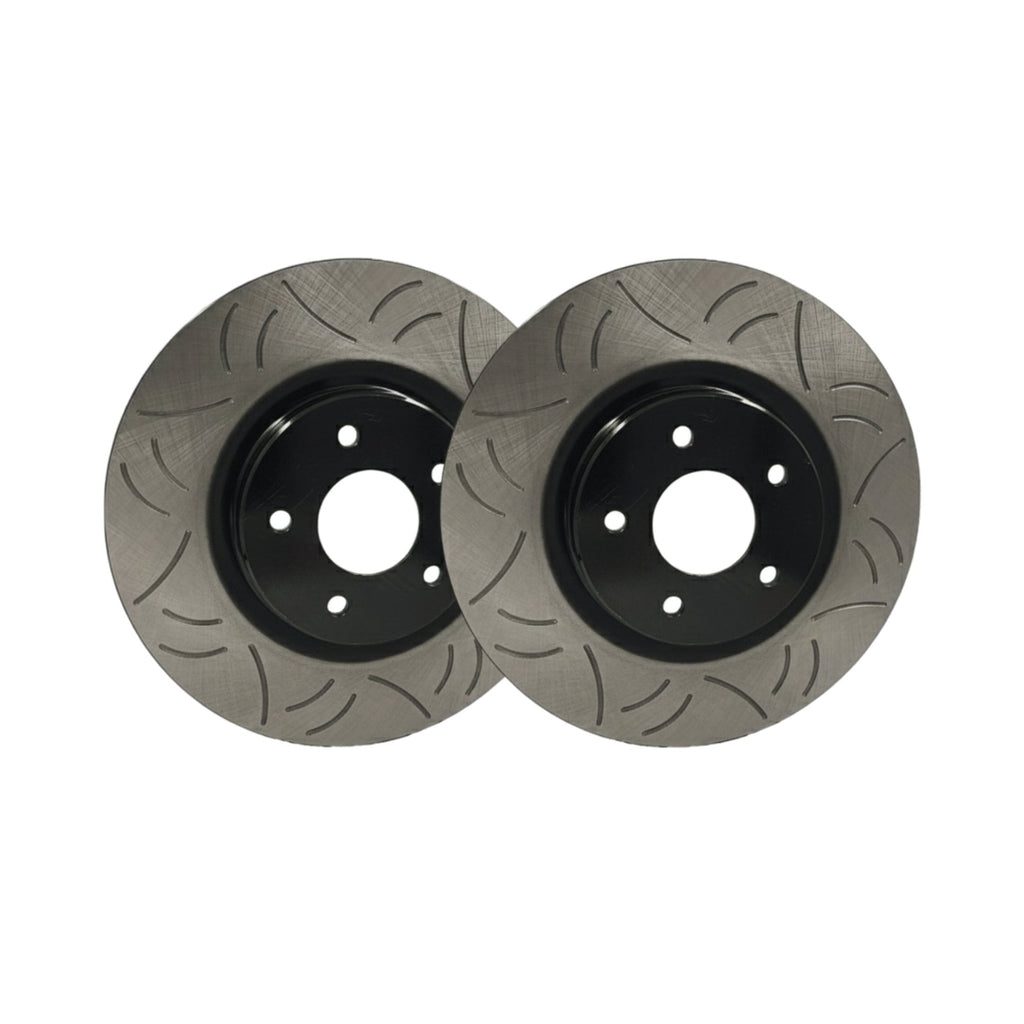

- Choice of one-piece or two-piece 324 mm front rotors
- Application-specific 324 mm caliper adaptors

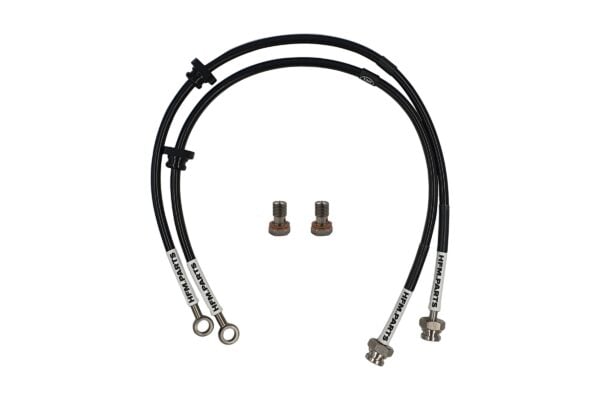

- Optional extended / hard-line-delete braided brake lines where applicable
Two-Piece / Rotor Geometry
HFM's current 324 mm conversion uses a 324 mm diameter, 53.8 mm height and 30 mm thick rotor with a 28 mm minimum thickness and 68 mm centre bore.
Fitment Requirements
- Nissan S13 / S14 / S15
- Nissan R32 GTS-T
- Supported S14/S15/R32 GTS-T four-piston caliper arrangement
- Five-stud S-chassis knuckle / hub configuration where required by the HFM adaptor system
HFM recommends DB1346-equivalent pads to improve pad coverage on the larger rotor.
Installation
Professional installation is recommended, including caliper-centre, pad-sweep, rotor-runout, brake-line and wheel-clearance checks.
Supplier
HFM.Parts
