HFM.Parts 324mm Front Brake Upgrade Kit – Nissan S14 / S15 / R32 / R33 / R34

Overview

HFM.Parts 324 mm Front Brake Upgrade Kit is designed for supported S14, S15, R32 GTS-T, R33 GTS-T and R34 GT applications using the compatible Nissan caliper arrangement. HFM's adaptor moves the caliper outward to accommodate the larger 324 mm rotor.

Current HFM Configuration

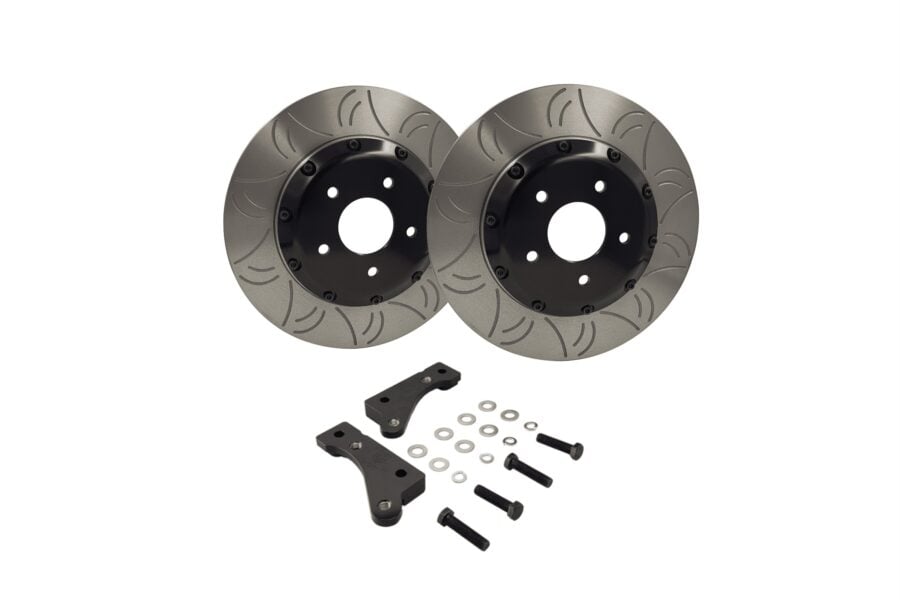

• Application-specific caliper-adaptor pair

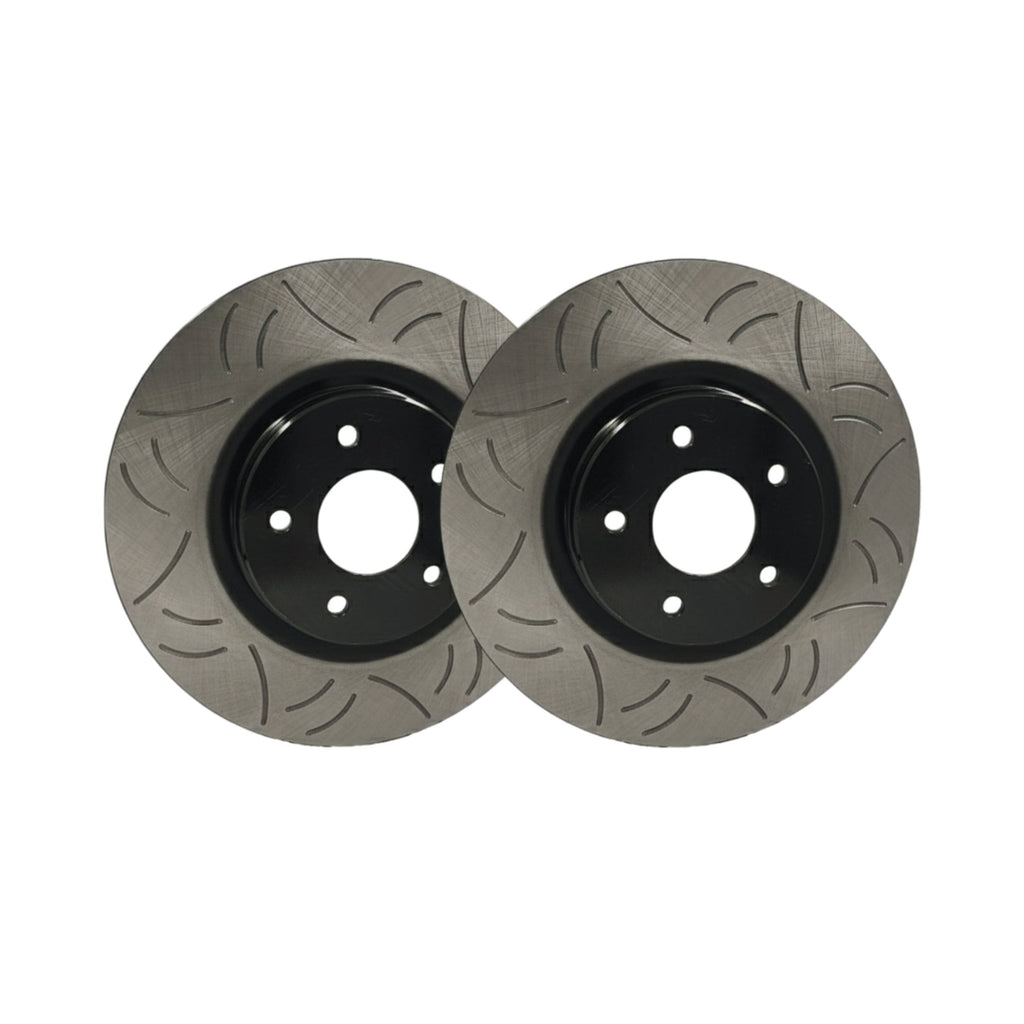

• Choice of one-piece or two-piece 324 mm front rotor pair
• Optional application-specific braided brake lines

Rotor Specifications

• 324 mm diameter
• 53.8 mm height
• 30 mm thickness
• 28 mm minimum thickness
• 68 mm centre bore

Important Pad-Sweep Note

HFM states that some pad overhang is unavoidable with this conversion because the original caliper is repositioned for the larger rotor. A DB1346-equivalent pad is recommended for improved coverage, although some overhang remains.

Fitment

Use only with the exact supported caliper/knuckle combination. R33 GTS-T / R34 GT-type caliper requirements differ between applications, so confirm the vehicle and installed caliper before ordering.

Supplier

HFM.Parts
