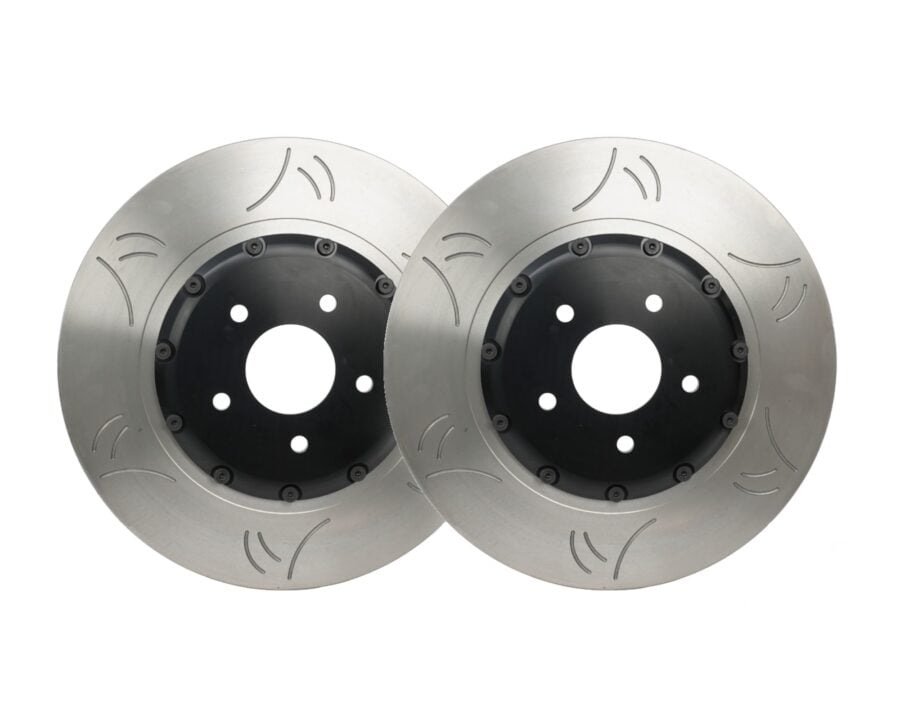

HFM.Parts 354mm Two-Piece Front Rotors – Nissan Skyline R33 GT-R

Overview

HFM.Parts 354 mm Front Two-Piece Rotors are the matching rotor pair for Nissan Skyline R33 GT-R applications using the HFM.Parts 354 mm caliper-adaptor arrangement. The two-piece architecture allows the rotor ring to expand with heat independently of the lightweight centre hat.

Technical Specifications

• Diameter: 354 mm
• Height: 53.8 mm
• Thickness: 30 mm
• Minimum thickness: 28 mm
• Centre bore: 68 mm
• Stud holes: 5
• Approximate weight: 11.2 kg per rotor
• T6-7075 aircraft-grade aluminium centre hats
• Black anodised hub-centric hats
• Conelock nuts and shoulder-bolt hardware

Fitment

Nissan Skyline R33 GT-R using the matching HFM.Parts 354 mm front caliper-adaptor system. These are not a direct substitute for the standard rotor without the required conversion hardware.

What's Included

One pair of HFM.Parts 354 mm two-piece front rotors.

Installation

Confirm wheel clearance, caliper centring, rotor runout and pad sweep before use. Professional installation and correct pad bedding are recommended.

Supplier

HFM.Parts

BBT Support

Built by Boost & Tune can assist with caliper/adaptor matching, installation and brake-system setup.
