Haltech DC Motor Driver - DCMD

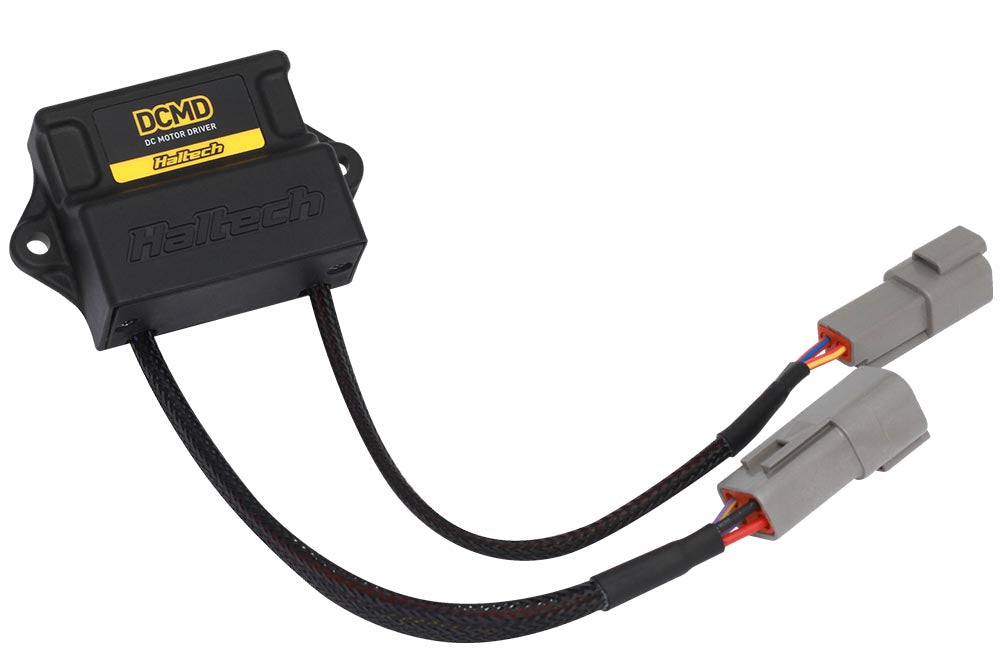

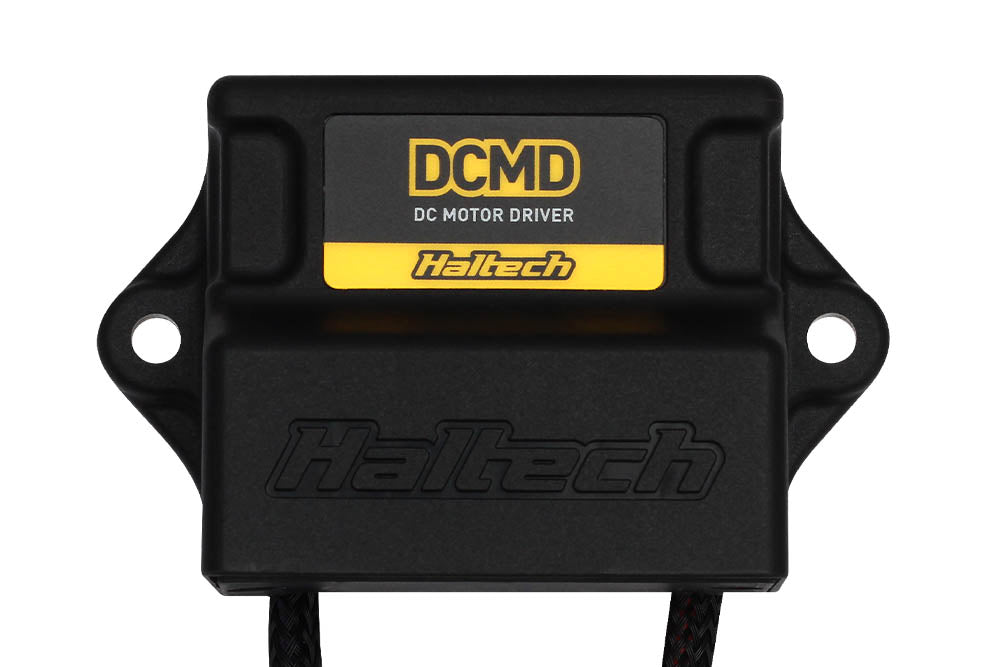

Haltech DC Motor Driver - DCMD (HT-038009) is a two-channel full-bridge motor driver for controlling higher-current DC motor loads from a Haltech ECU.

Typical applications

• Turbosmart electronic wastegates.
• Varex exhaust motors.
• Other compatible DC motors.
• High-power external electronic-throttle applications where suitable control strategy is available.

Electrical capability

• 2 motor/output channels.
• Rated to 8A continuous per channel.
• Up to 30A maximum current.
• Maximum recommended switching speed of 2.2kHz.
• Requires 2 ECU DPO outputs for control; Haltech specifies active-low control.

ECU compatibility

• Can be driven by Nexus, Elite and Platinum Series ECU outputs.
• Native Turbosmart electronic-wastegate control is limited to Elite and Nexus Series ECUs.

Included

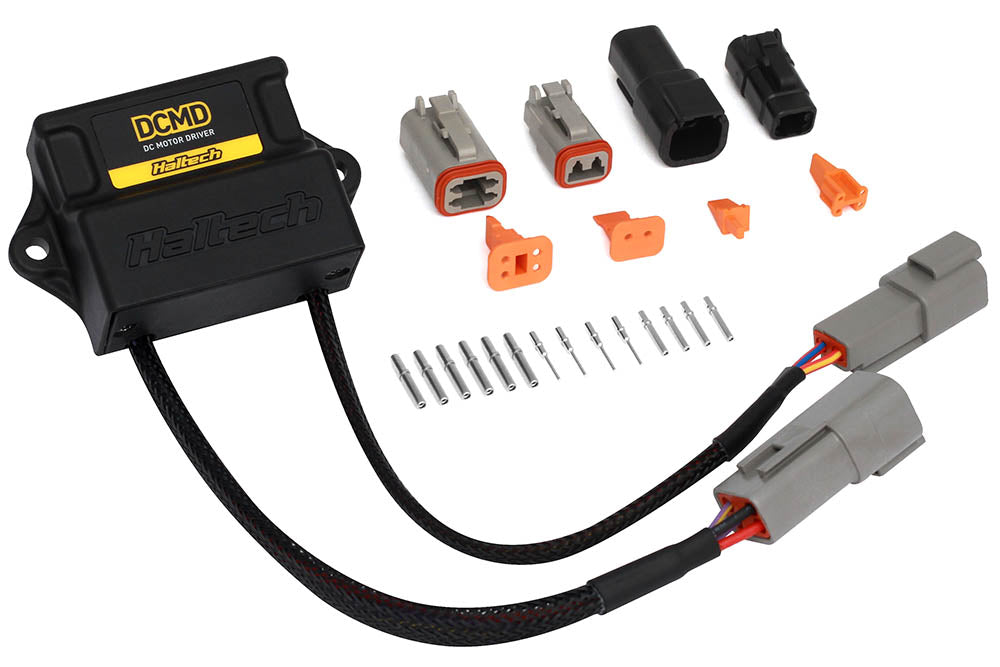

• DC Motor Driver module.
• DT02-2S, DT06-4S, DTM06-4S and DTM04-4P connector hardware with pins/wedges.
• Quick Start Guide.

Product Details

Product: Haltech DC Motor Driver - DCMD
Brand: Haltech
Category: Haltech Sensor

This listing covers the product and application named above. Use the product title, part number where shown, and the existing technical information on this page to confirm it matches the required vehicle or engine combination.
