Haltech Multi-Function CAN Gauge - 52mm

Haltech Multi-Function CAN Gauge - 52mm (HT-061010) displays real-time ECU data over Haltech Version 2 CAN without requiring separate analogue sensors for supported ECU channels.

Display and setup

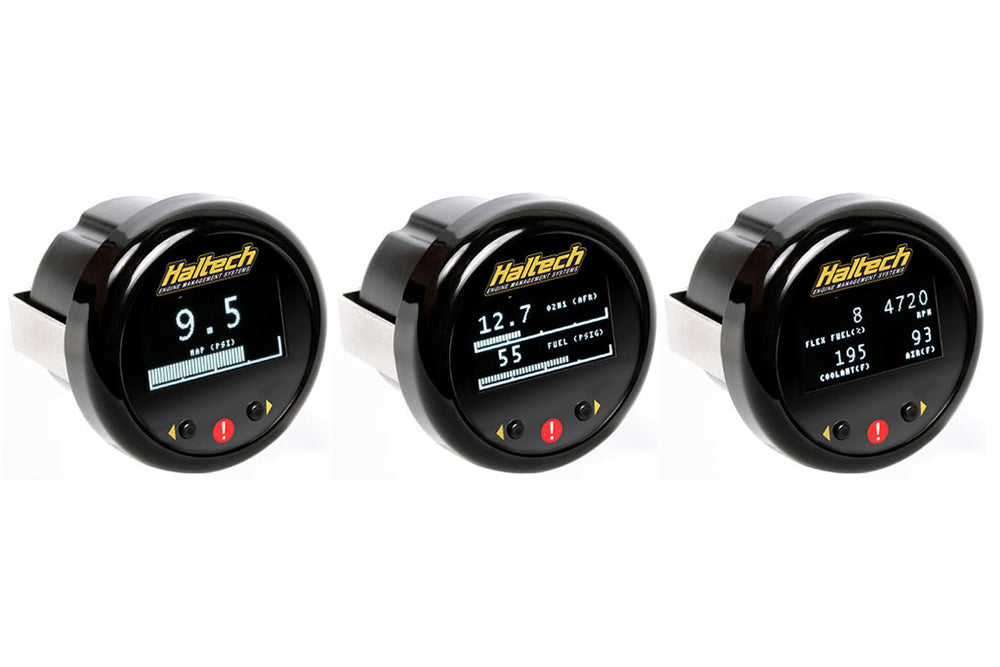

• High-contrast dimmable OLED display.
• 1, 2 or 4-gauge layouts.
• Up to 10 configurable pages.
• Custom warning points and dedicated warning screens.

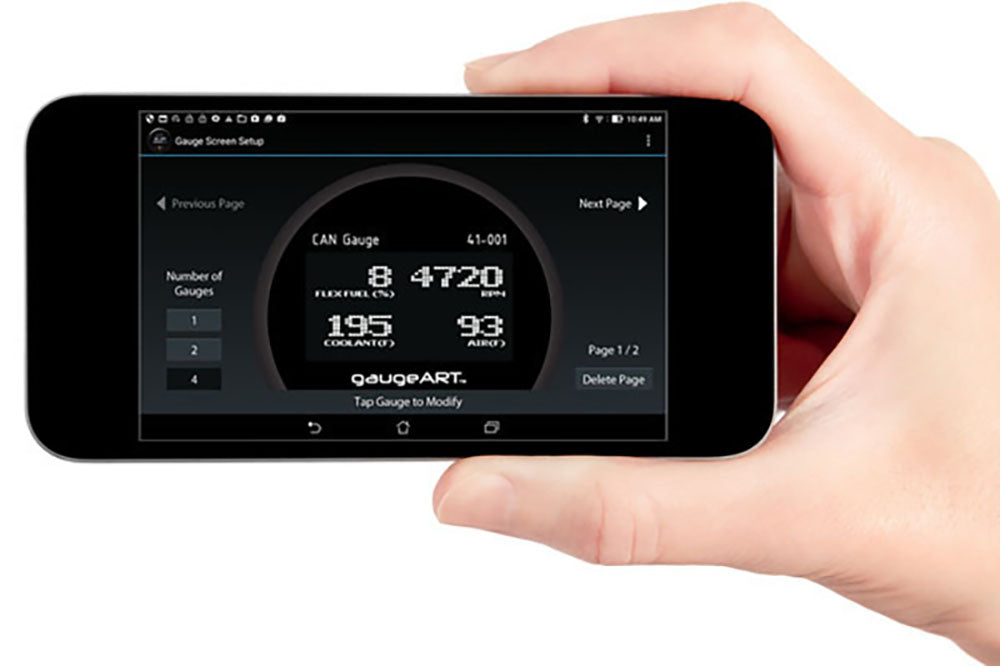

• Setup from the gauge buttons or the gaugeART mobile app.

Typical channels

Boost, air/fuel ratio, coolant temperature, fuel pressure, ethanol content, intake-air temperature, battery voltage, oil pressure, RPM, throttle position, wheel speed, wheel slip, EGT, gear position and many other supported ECU channels can be displayed directly from CAN data.

Compatibility

• Haltech Platinum Sprint and Sport.
• Haltech Pro Plug-in.
• Haltech Elite.
• Haltech Nexus.

Included

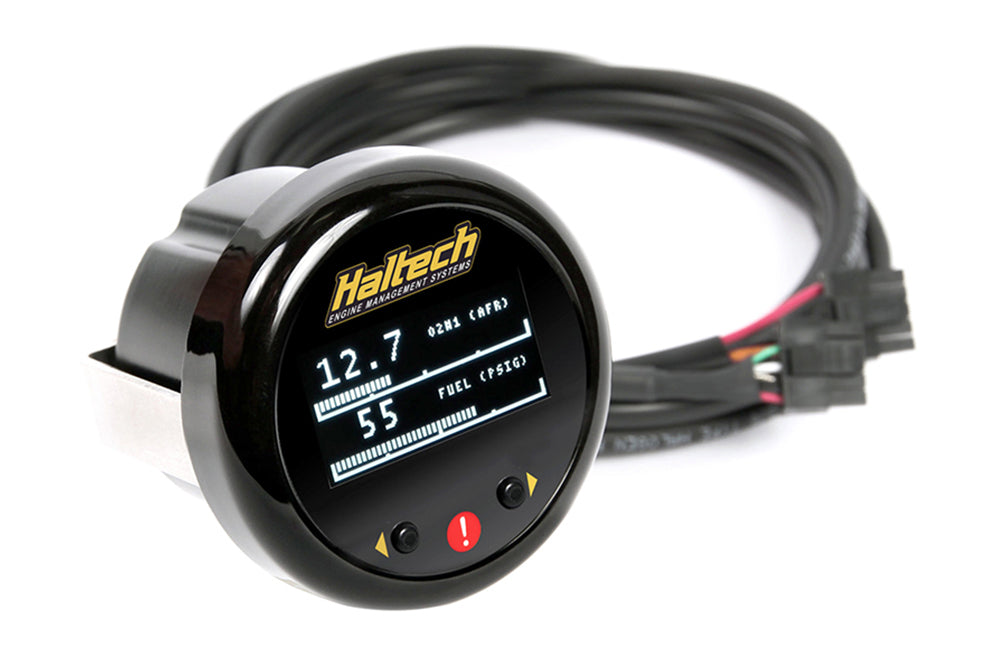

• 52mm CAN gauge.
• 2.5m / 8ft gaugeART DTM-style CAN cable.
• Mounting bracket.

Elite applications are direct plug-and-play with the appropriate Elite CAN connection. Platinum installations may require the relevant CAN adaptor cable.

Product Details

Product: Haltech Multi-Function CAN Gauge - 52mm
Brand: Haltech
Category: Haltech Dash & Display

This listing covers the product and application named above. Use the product title, part number where shown, and the existing technical information on this page to confirm it matches the required vehicle or engine combination.

Before Ordering

• Confirm the listed application matches the vehicle, engine or component being upgraded.
• Check whether supporting hardware, fabrication, wiring, fluids, gaskets or calibration are required for the installation.
• If the vehicle has non-standard modifications, confirm compatibility before purchase.

Built by Boost & Tune Support

Built by Boost & Tune can assist with installation, wiring integration, sensor setup and calibration where required. Contact us before ordering if you need help confirming suitability or planning the complete upgrade package.

Supplier

Haltech
