Haltech uC-10 Digital Dash

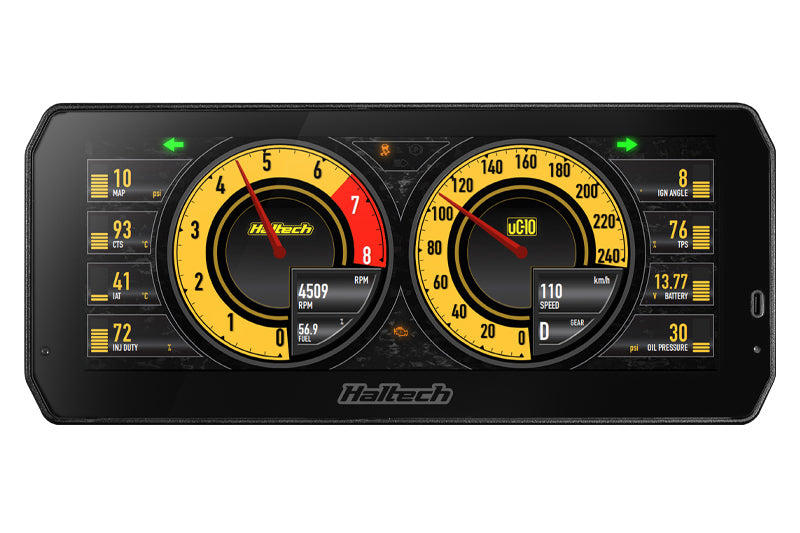

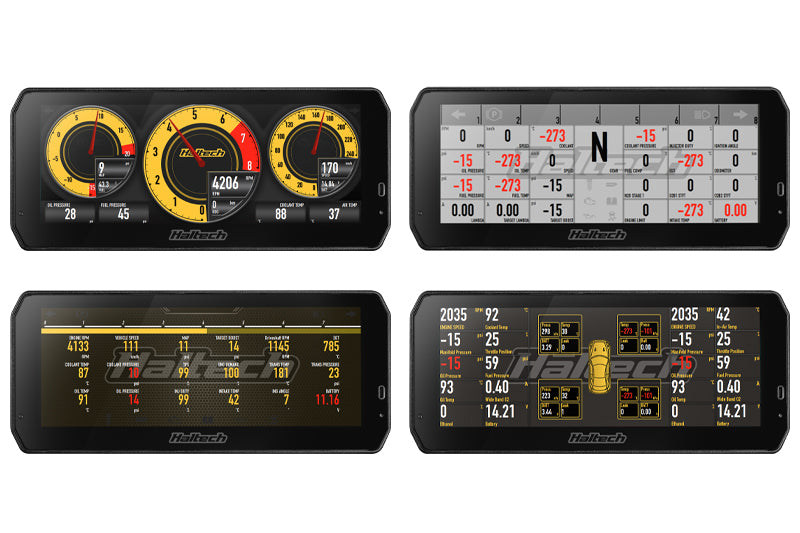

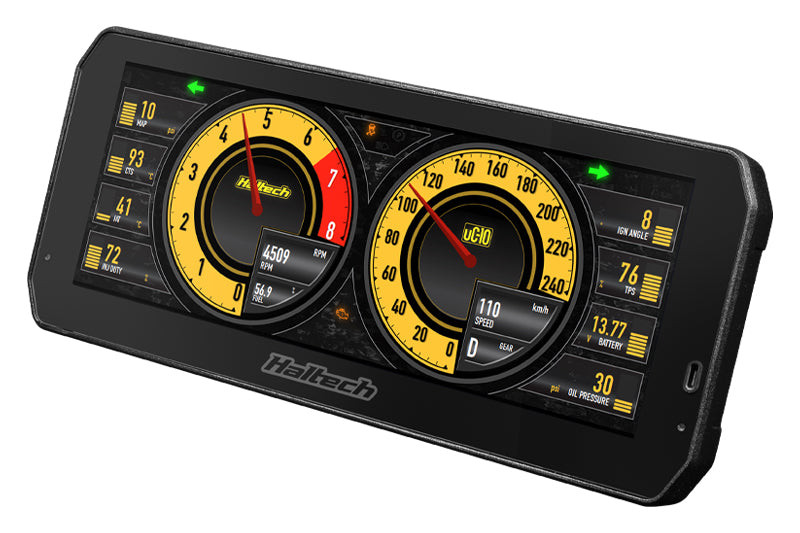

Haltech uC-10 Digital Dash (HT-068000) is a 10-inch full-colour display and data hub with customisable NSP screen layouts, onboard logging and extensive CAN/I/O capability.

Display

• 10-inch optically bonded TFT.
• 1280 x 480 resolution.
• 600+ lumens, dimmable.
• 70° minimum viewing angle.
• IP64 environmental rating.

Data and I/O

• 512MB onboard looped data logging.
• 10 analogue voltage inputs.
• 4 synchronised pulsed inputs.
• 4 digital pulsed outputs.
• Dedicated tacho input and alternator-excite output.
• Two onboard ambient-light sensors.

Communications

• Haltech CAN and supported OBD-II integration.
• Supported third-party ECU protocols including Hondata, Link G4, MaxxECU, Microtech, MoTeC M1/Hundred Series and Syvecs.
• USB-C communications and 2.4GHz Wi-Fi hardware.

Camera support

The uC-10 supports composite reverse-camera input with current firmware. Haltech HT-060400 is the matching camera kit.

Included

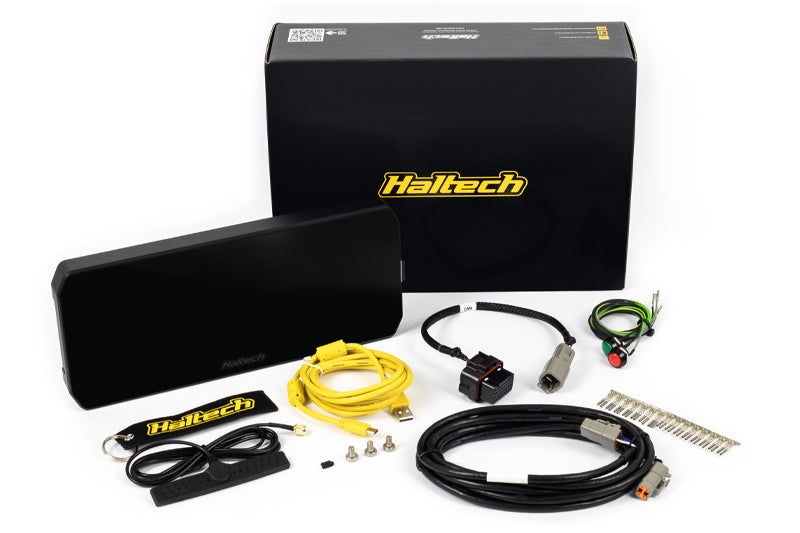

uC-10 dash, 34-pin connector, 3m CAN cable, USB-C cable, mounting screws, two momentary switches with pre-terminated cable, glass-mount Wi-Fi antenna and quick-start material.

Product Details

Product: Haltech uC-10 Digital Dash
Brand: Haltech
Category: Haltech Dash & Display

This listing covers the product and application named above. Use the product title, part number where shown, and the existing technical information on this page to confirm it matches the required vehicle or engine combination.

Before Ordering

• Confirm the listed application matches the vehicle, engine or component being upgraded.
• Check whether supporting hardware, fabrication, wiring, fluids, gaskets or calibration are required for the installation.
• If the vehicle has non-standard modifications, confirm compatibility before purchase.

Built by Boost & Tune Support

Built by Boost & Tune can assist with installation, wiring integration, sensor setup and calibration where required. Contact us before ordering if you need help confirming suitability or planning the complete upgrade package.

Supplier

Haltech

Generic CAN (GCAN) — Current Beta Feature

Haltech identifies this Nexus ECU / display platform as eligible for Generic CAN (GCAN), its user-programmable CAN messaging feature. GCAN is provided at no additional licence cost on eligible Nexus hardware and can also be enabled on existing eligible units through the applicable firmware update.

• Create custom CAN messages for supported third-party devices and systems.
• Useful for OEM dash retention, CAN sensors, steering-wheel / switch controls, ABS data, loggers and other custom CAN integrations.
• Haltech currently specifies support for up to 30 CAN frames and 200 signals.

Important: GCAN is currently released by Haltech as a beta feature. Access requires opting into the applicable beta software / firmware through NSP. Check Haltech's current GCAN release instructions before updating, back up the existing configuration first and verify all connected-device operation after the update.
