Name: Haltech Elite PRO Plug-in ECU - Ford Falcon BA/BF/FG Barra
Brand: Haltech
SKU: HT-154000
Price: 3836.70 AUD
Availability: InStock

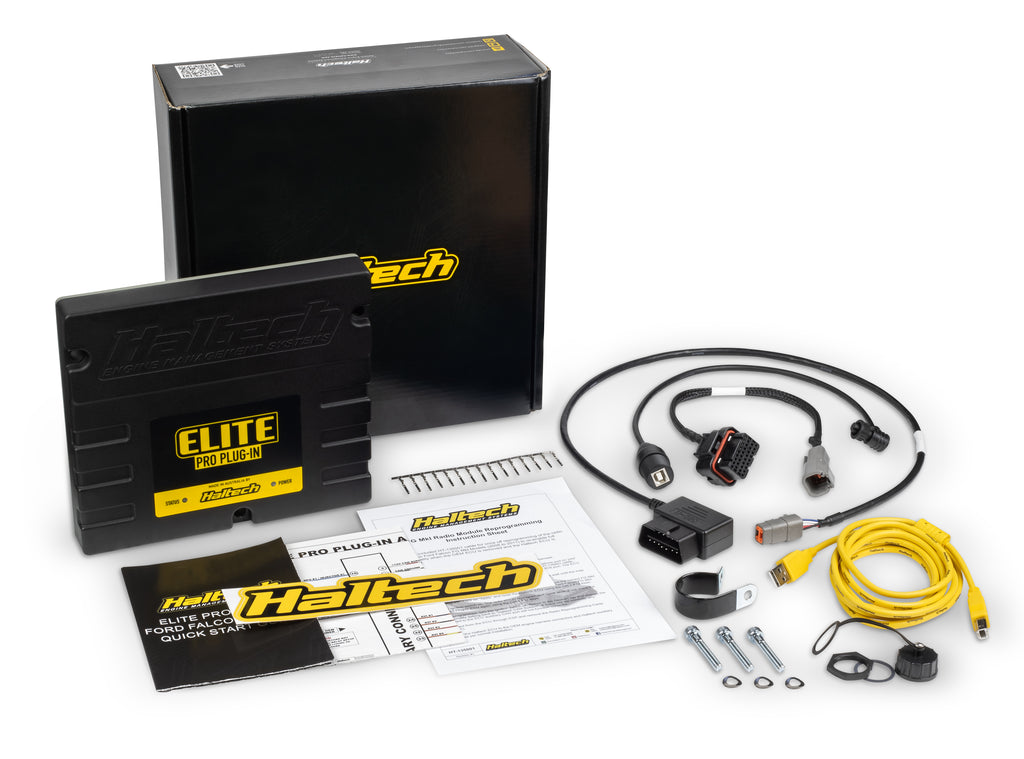

Haltech Elite PRO Direct Plug-in Ford Falcon i6 "Barra" - ECU Only - HT-154000

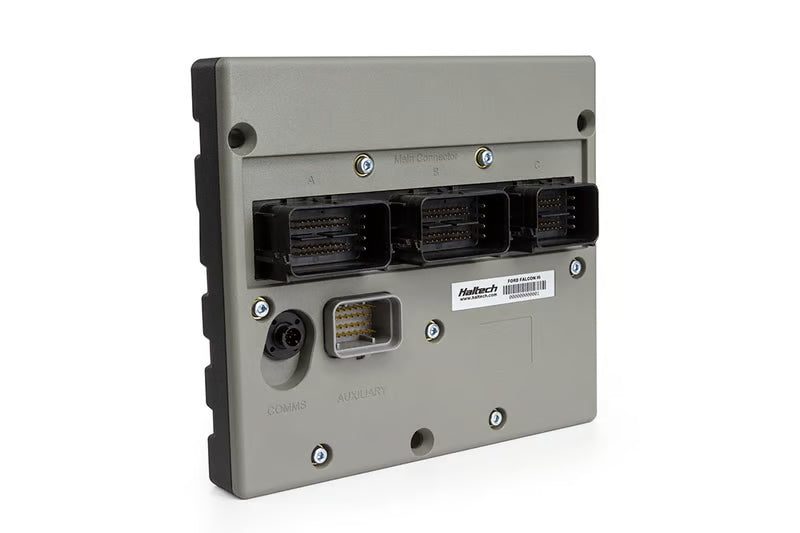

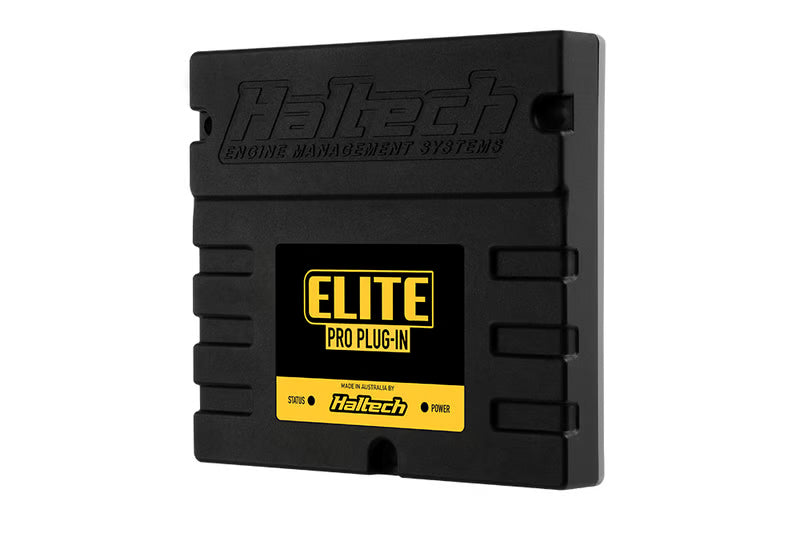

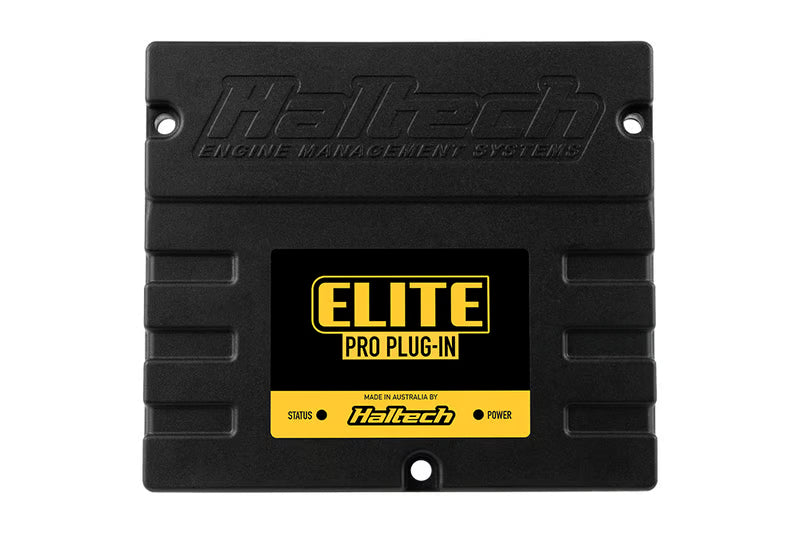

Haltech Elite PRO Plug-in ECU - Ford Falcon BA/BF/FG Barra

$3,836.70

Haltech Elite PRO Plug-in ECU for Ford Falcon BA/BF/FG Barra (HT-154000) is a genuine direct-fit Haltech ECU for supported Australian Ford Falcon 4.0L DOHC VCT Barra applications. It connects to the factory engine harness and mounts in the factory ECU location, retaining key vehicle functions while adding motorsport-level engine-management capability.

Throttle compatibility — factory DBW supported: The Elite PRO Barra plug-in directly supports the Ford electronic throttle system. Haltech also specifies DBW output capability for compatible throttle bodies and accelerator-pedal assemblies.

Vehicle compatibility

Ford Falcon BA 2002–2005 — 4.0L Barra, manual transmission.
Ford Falcon BF / BF MkII 2005–2008 — 4.0L Barra, manual or ZF 6HP26 six-speed automatic.
Ford Falcon FG / FG MkII / FG X 2008–2016 — 4.0L Barra, manual or ZF 6HP26 six-speed automatic.
Suitable for naturally aspirated and turbo Barra applications within Haltech's supported vehicle range.

Factory-function support

ZF 6HP26 automatic transmission control via CAN on supported BF/FG applications.
Ford drive-by-wire throttle control.
Variable cam control.
Cruise control.
Factory dash-cluster communication.
OBD-II diagnostic support.

Performance features

E85 flex-fuel ready and multi-fuel capable.
Internal single-channel wideband controller for Bosch LSU 4.9 sensor.
Closed-loop boost control.
Knock control with high-speed digital filtering.
Anti-lag and launch-control strategies.
Short- and long-term learning for fuel, ignition, boost and idle control.
Multi-level engine protection.
Two CAN buses and onboard data logging.

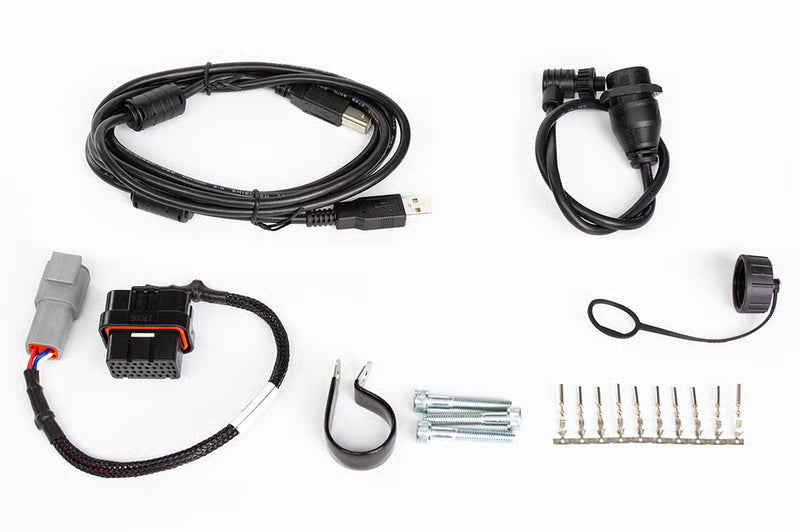

Included

Haltech Elite PRO Plug-in ECU.
400mm waterproof Type-B USB programming cable with cap.
Auxiliary AMP 34-pin Superseal connector.
Elite CAN DTM-4 receptacle.
Waterproof blanking plugs and spare auxiliary-I/O pins.

Before ordering

Confirm the exact Falcon model, production year, engine and transmission. BA automatic applications are not included in Haltech's listed HT-154000 fitment, while supported BF and FG automatic applications use the ZF 6HP26 six-speed transmission.

Built by Boost & Tune support

Built by Boost & Tune is an authorised Haltech dealer. We can confirm fitment, install the ECU, configure flex-fuel/wideband/CAN hardware and complete start-up and dyno calibration for your Barra combination.
