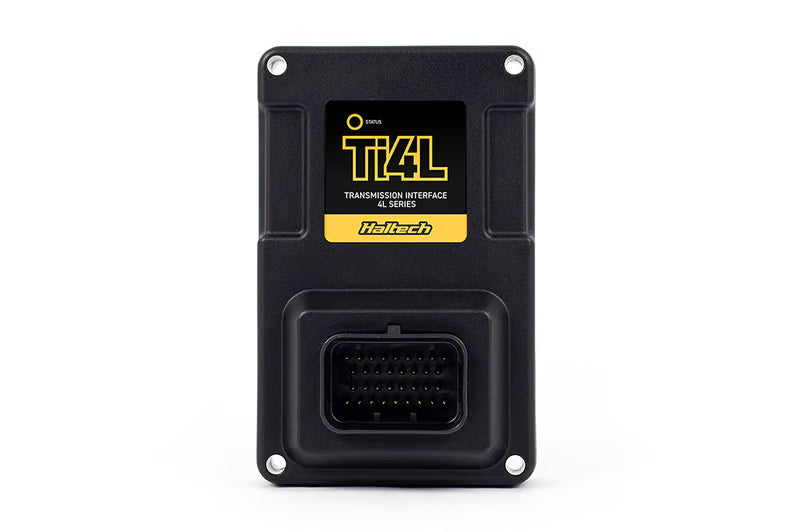

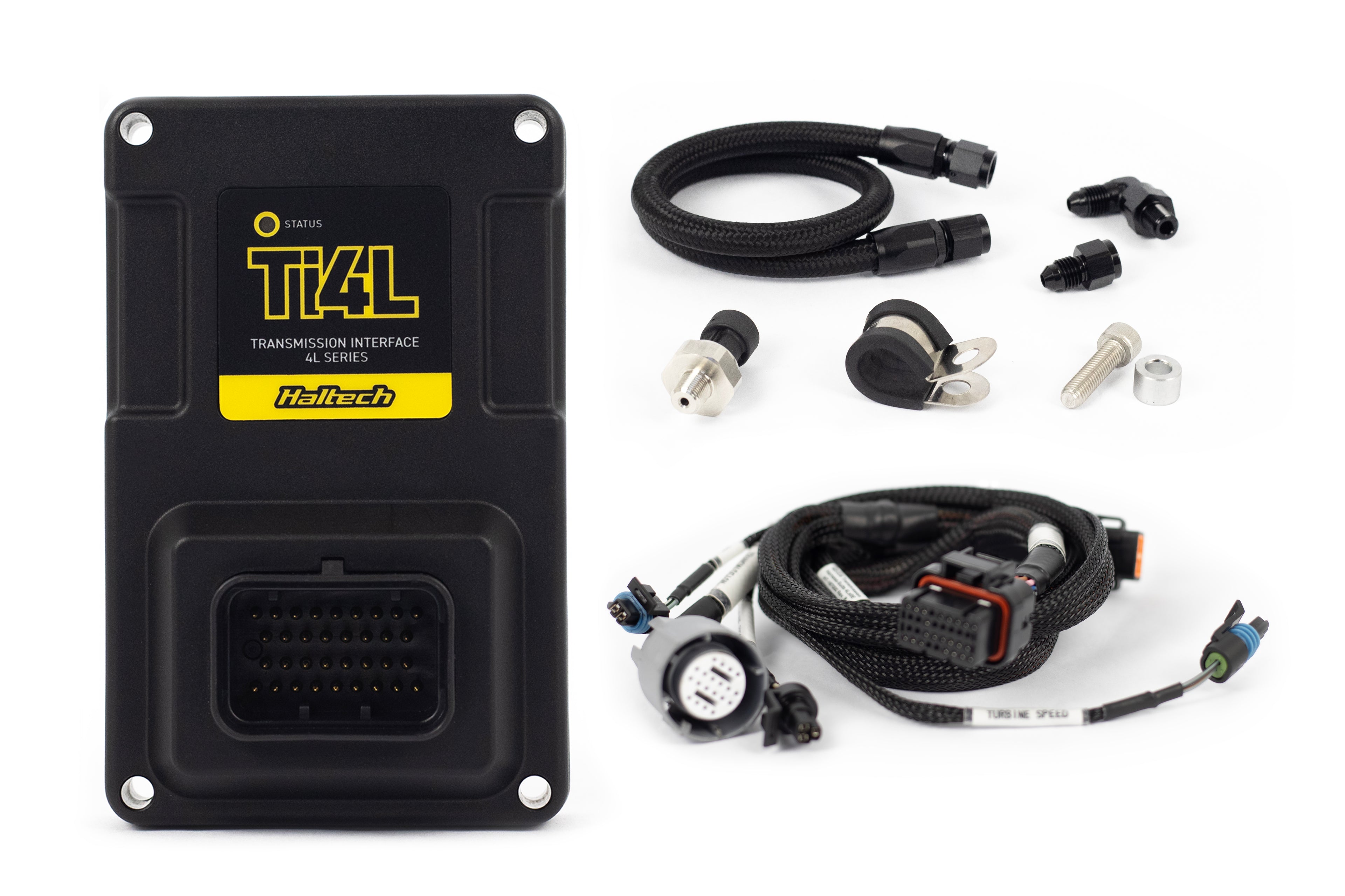

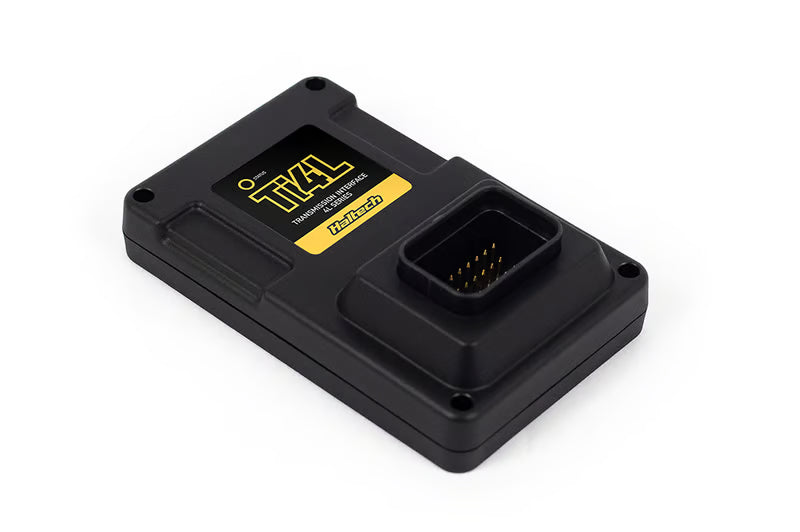

Haltech Nexus Ti4L Transmission Interface Kit - Suits GM 4L Series

Suits: Nexus Series ECUs & VCUs including Rebel LS Does not support Elite / Platinum / Legacy ECUs

Notes: Supports 4L60E, 4L65E, 4L70E (Non 4x4 2006-2008 only and 4L80E, 4L85E (Non 4x4 1994 onwards only

The Ti4L unit allows easy control for GM's popular 4L series of automatic transmissions. Designed as an expansion module for the NEXUS ECU and VCU range the Ti4L will be programmed via our NSP software, or Rebel LS users will be able to follow the simple set up wizard in the Haltech Connect App. Easy set-up is not the only feature! We've also developed smart long-term learning strategies via closed loop line pressure control, which means shifting gets better the more you drive.
Supports
  • 4L60E, 4L65E, 4L70E (Non 4x4 2006-2008 only; 2009 onwards use different pinouts on the main transmission connector.)
  • 4L80E, 4L85E (Non 4x4 1994 onwards only; 1991-1993 use a different main transmission connector.)

Genuine Haltech control-system expansion or vehicle interface module, identified by manufacturer part number HT-196001.

Haltech catalogue classification

  • Expansion & Interface Modules
  • Transmission Interfaces

Application

  • Vehicles: Universal or application-specific; confirm before ordering
  • Engines: Universal or application-specific; confirm before ordering

Before ordering

  • Confirm the exact SKU, connector, length, thread, sensor range or vehicle application.
  • Package contents and technical specifications must be checked against Haltech documentation for this part number.
  • ECU, VCU, CAN, sensor and harness products may require professional wiring, configuration or calibration.

Built by Boost & Tune support: product selection, custom wiring, installation, start-up, diagnostics and dyno calibration are available.

Legal use and emissions compliance vary by jurisdiction. The purchaser and installer are responsible for ensuring the product is suitable and lawful for the intended application.
