Haltech Nexus S2 Plug'n'Play Adaptor Harness Kit - Mazda MX5 NA

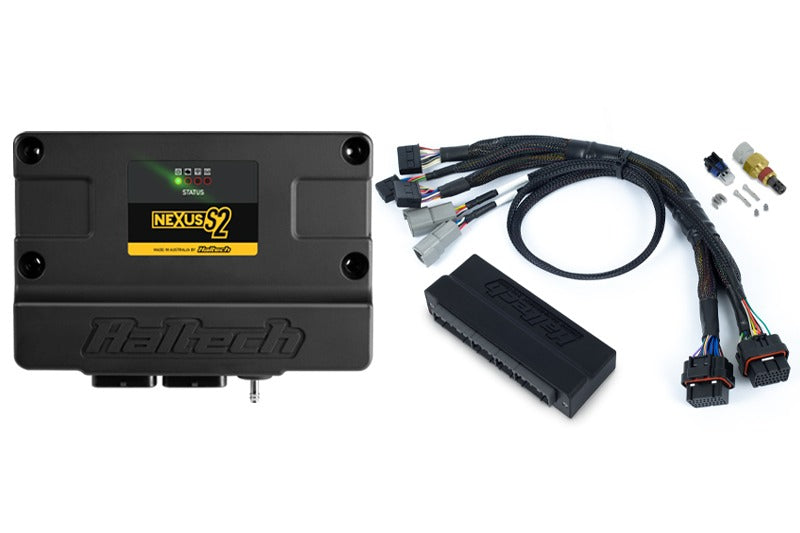

Haltech Nexus S2 Plug'n'Play Adaptor Harness Kit - Mazda MX5 NA (HT-212316) is a complete Haltech Nexus S2 plug-and-play ECU package for supported Mazda MX-5 / Miata NA 1.6L and 1.8L factory-ECU applications. It combines the Nexus S2 ECU with a vehicle-specific adaptor harness so supported vehicles can retain the factory engine loom while gaining modern Haltech tuning, logging and control capability.

Throttle compatibility — Factory cable throttle + DBW-capable ECU: This plug-and-play package is designed around the vehicle's factory cable-throttle arrangement. The Nexus S2/S3 ECU itself supports dual DBW, but converting the vehicle to electronic throttle requires additional/custom throttle and APP wiring and is not included in the plug-and-play kit.

Vehicle fitment

• Mazda MX-5 / Miata NA 1.6L and 1.8L.
• 2-plug, 2-row factory ECU connector arrangement.
• Transmission: manual only.

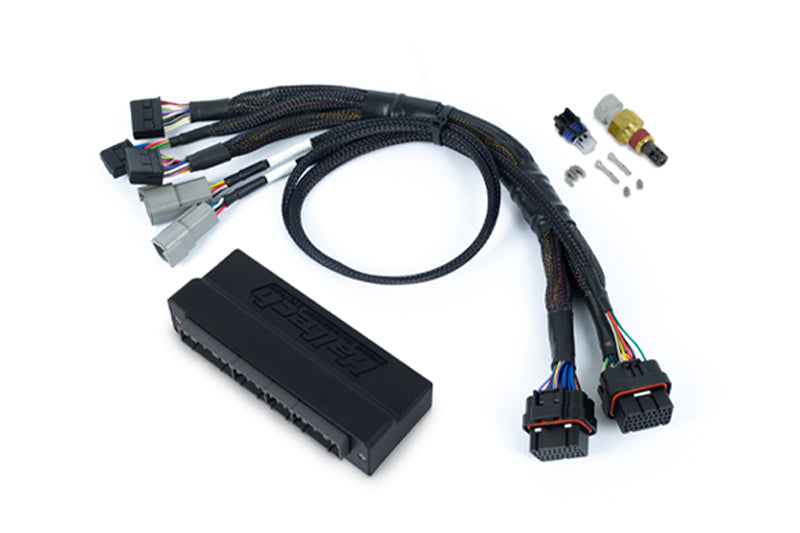

What’s included

• Haltech Nexus S2 ECU.

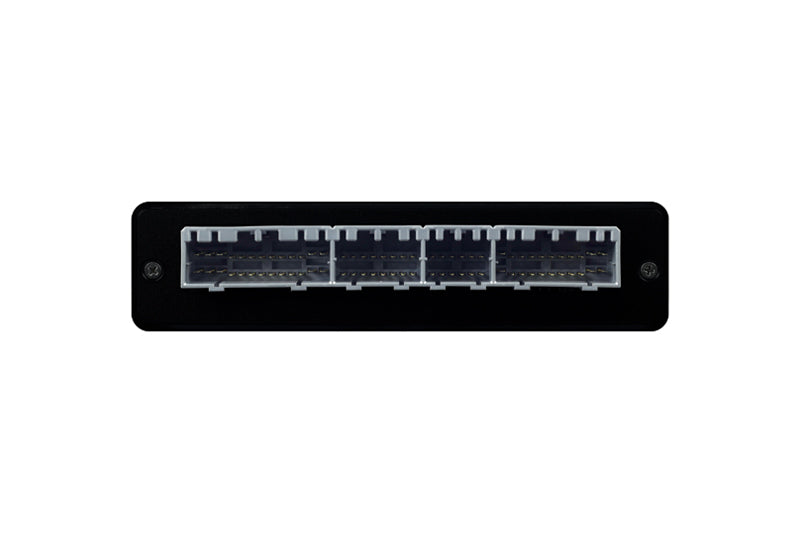

• Injection-moulded vehicle-specific plug-and-play adaptor harness.
• M14 x 1.5 air-temperature sensor with matching plug and pins.
• Auxiliary I/O 16-pin Tyco plug and pins.

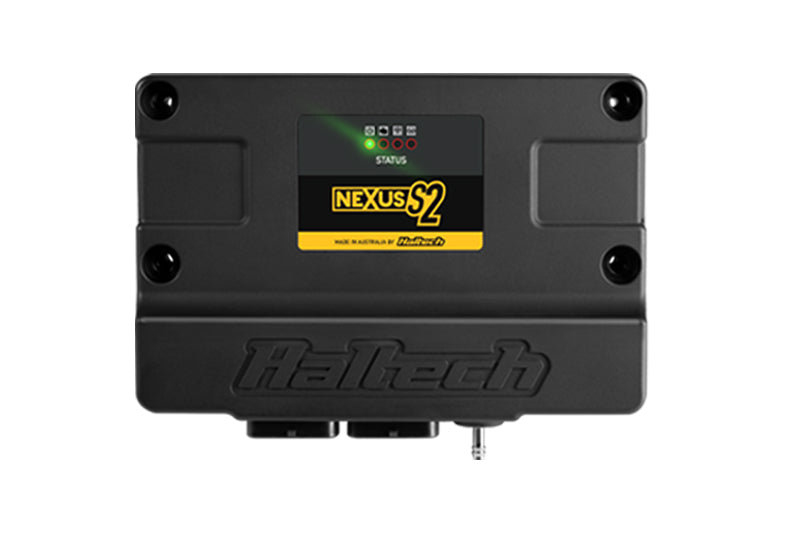

Nexus S2 highlights

• 4 peak-and-hold injector drivers and 4 ignition outputs.
• Onboard wideband control supporting NTK and Bosch LSU 4.9 sensors, plus an internal 4 bar MAP sensor.
• Dual CAN networks, onboard Wi-Fi and 128 MB internal data logging.
• Advanced strategies including 4D closed-loop boost control, traction control, launch control, anti-lag, dual knock control and multi-level engine protection.
• Configured and tuned through Haltech NSP (Nexus Software Programmer).

Application notes

• Does not support USDM OBD-II 1996–1997, Special Edition SE or Anniversary models.
• Manual 1.6L applications require the factory throttle-position sensor to be removed/unplugged and a full-range TPS fitted. Operating without the correct full-range TPS can cause erratic wide-open-throttle behaviour and may damage the ECU.
• Using the Nexus S2 rather than the S3 reduces some factory functionality on this application; refer to Haltech’s quick-start guide for details.

Built by Boost & Tune support

Built by Boost & Tune is an authorised Haltech dealer. We can verify fitment, supply and install the kit, integrate sensors and CAN devices, perform first-start checks and dyno-calibrate the ECU for the vehicle’s combination.

Throttle / DBW suitability

Factory cable throttle + DBW-capable ECU: This plug-and-play package is designed around the vehicle's factory cable-throttle arrangement. The Nexus S2/S3 ECU itself supports dual DBW, but converting the vehicle to electronic throttle requires additional/custom throttle and APP wiring and is not included in the plug-and-play kit.

Supplier

Haltech

Product System

• Engine Management
• Wiring Sensors Displays

Supplier Part Number

HT-212316

Generic CAN (GCAN) — Current Beta Feature

Haltech identifies this Nexus ECU / display platform as eligible for Generic CAN (GCAN), its user-programmable CAN messaging feature. GCAN is provided at no additional licence cost on eligible Nexus hardware and can also be enabled on existing eligible units through the applicable firmware update.

• Create custom CAN messages for supported third-party devices and systems.
• Useful for OEM dash retention, CAN sensors, steering-wheel / switch controls, ABS data, loggers and other custom CAN integrations.
• Haltech currently specifies support for up to 30 CAN frames and 200 signals.

Important: GCAN is currently released by Haltech as a beta feature. Access requires opting into the applicable beta software / firmware through NSP. Check Haltech's current GCAN release instructions before updating, back up the existing configuration first and verify all connected-device operation after the update.
