Injector Dynamics 1750-XDS Injectors

$2,000.00

The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion-resistant internals making it compatible with all known automotive fuels.

A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors.

The ID1700x excels at high pressures typical of current automotive systems and will perform flawlessly in these applications.

Application Notes

The ID1700x was designed to be an all-fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extremely high horsepower applications.

Neither of these applications requires extended linearity at low flow rates, so this was given a proportionately lower priority during the design process.

The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.

If you need flawless drivability on gasoline, the ID1300x will provide this and is capable of approximately 150hp per injector on E85.

Basic Specifications

Nominal Flow Rate - 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure - 7.0 Bar (101.5 psi)
Fuel Compatibility - Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.

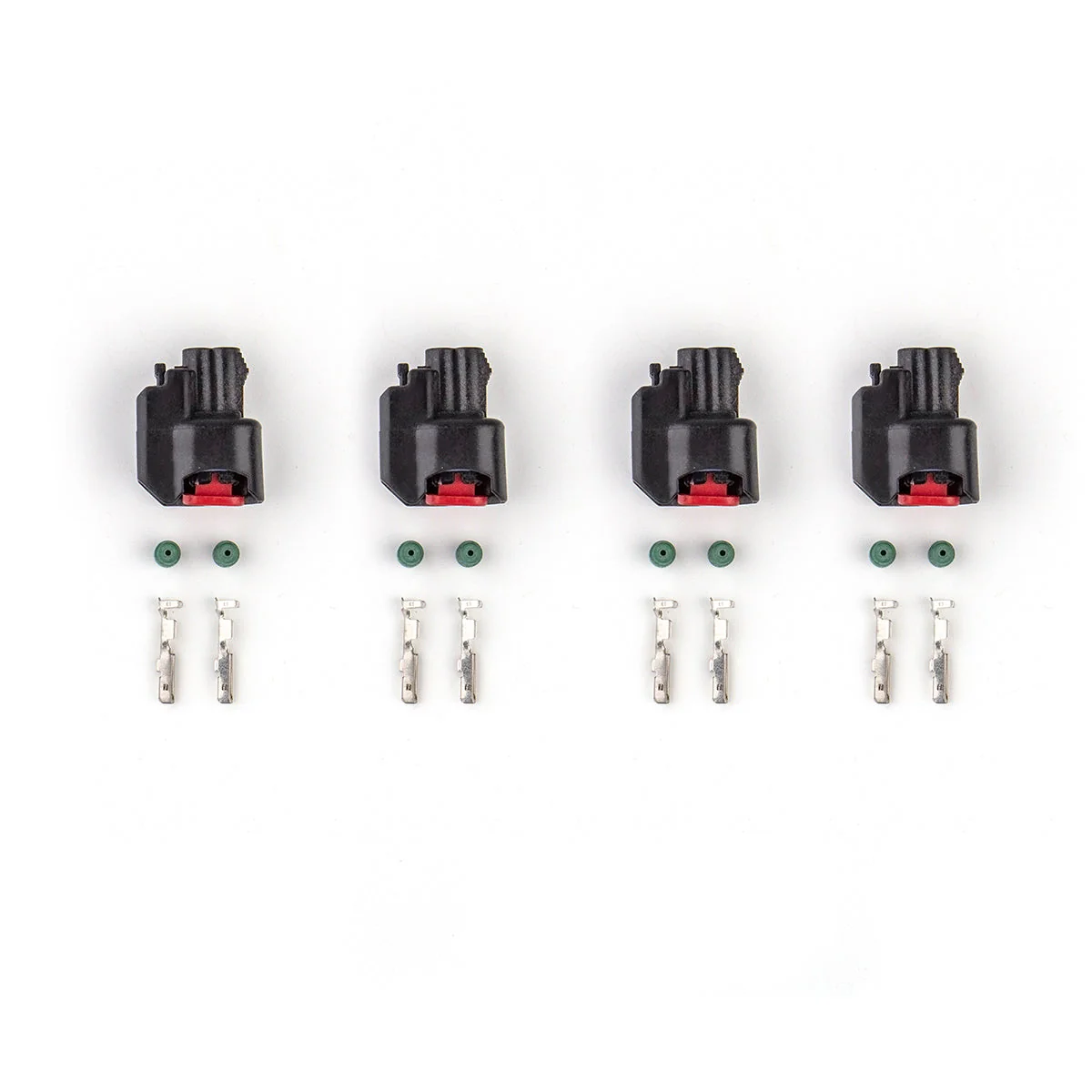

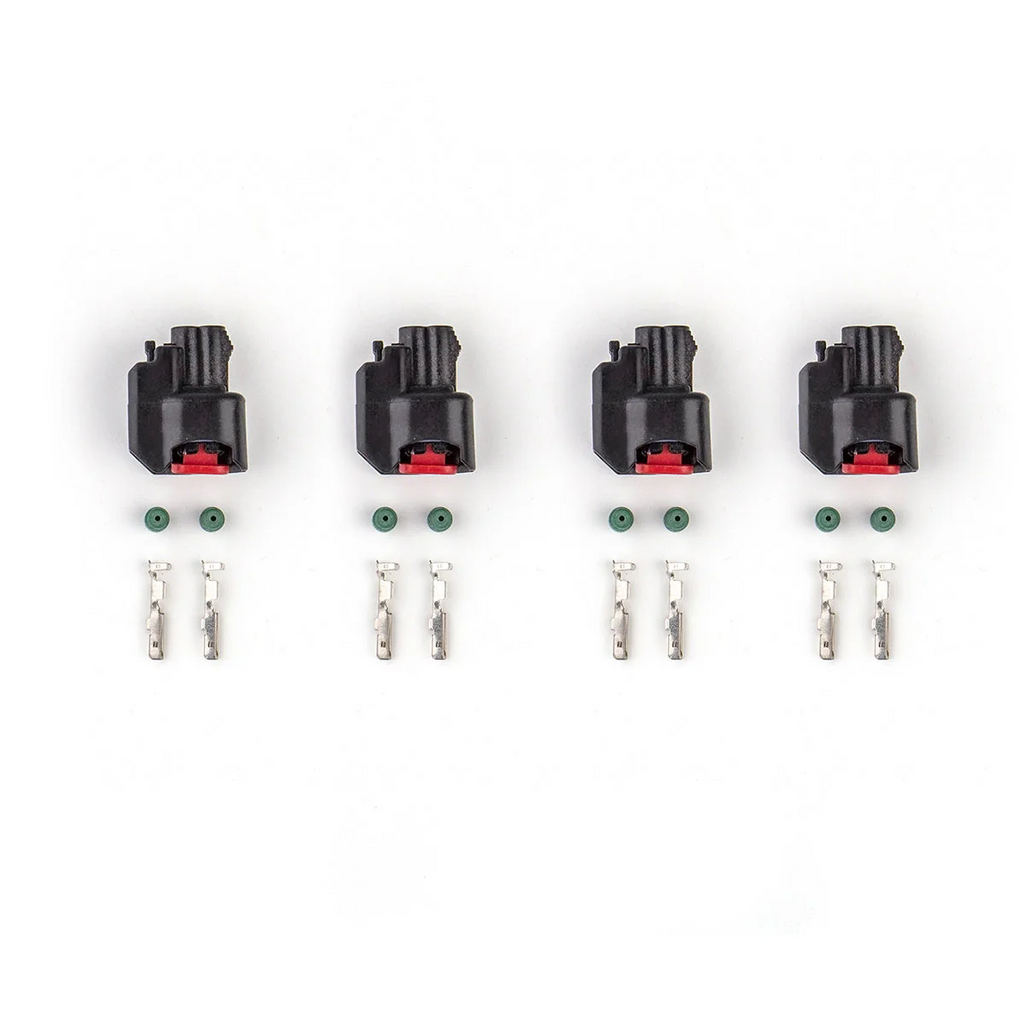

Electrical Connector - USCAR

Current Selectable Options

Type: AUDI EA888 GEN3-1750.34.14.14.4, RS3/TTRS 2017+1750.34.14.14.5

Choose only combinations shown as available in the selectors; unavailable combinations cannot be added to cart.

Ordering & Fitment

This listing is for Injector Dynamics 1750-XDS Injectors. Confirm the vehicle, engine, dimensions and supporting components against your application before ordering where fitment is application-specific. If you require a configuration that is not shown, contact Built by Boost & Tune before purchase.
