NPC Performance Twin-Plate Clutch – Holden Commodore LS / LSA

$2,894.00

Application

Clutch Type

Package & Pedal Setup

NPC Performance Twin-Plate Clutch – Holden Commodore LS / LSA is a genuine NPC Performance Clutches range supplied by Built by Boost & Tune, an authorised NPC clutch dealer and approved point of fitment.

Choose the required application, clutch material and package or pedal arrangement from the live selectors. Each choice has its own NPC part number and current advertised price.

Product Information

Organic offers the most street-friendly engagement. Cushioned Ceramic provides greater torque capability with a more progressive take-up than a full button clutch. Ceramic Button is a more aggressive high-load choice for hard road, drag or motorsport use. Twin Plate is used where still greater torque capacity or competition duty is required.

Fitment / Application

Holden Commodore VT–VF LS and supercharged LSA manual applications listed by NPC.

Selectable Options & Pricing

Application	Clutch Type	Package / Pedal Setup	NPC Part No.	Price

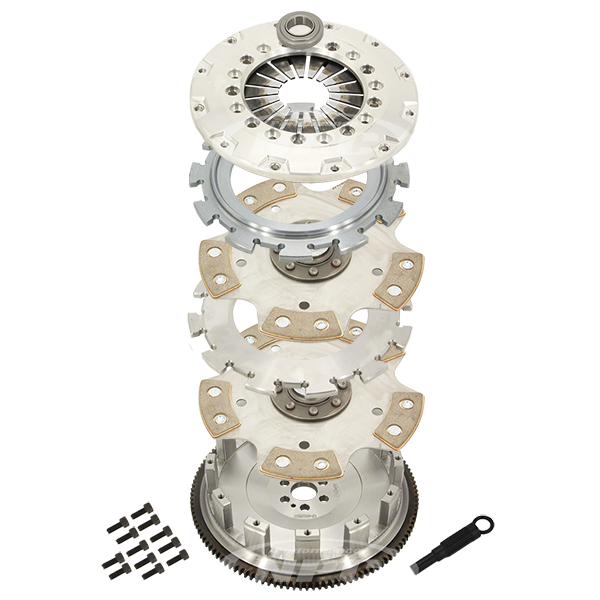

VT–VZ LS1 / LS2	225mm Basket Twin Plate	Solid or sprung plate system	STP03-2	$2,894.00
VT–VZ LS1 / LS2	Coppermix Twin Plate	260mm sprung centre	STP01-2	$2,904.00
VT–VZ LS1 / LS2	Carbotic Button Twin Plate	260mm sprung centre	STP01-2B	$3,003.00

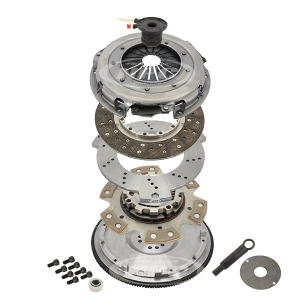

VT–VZ LS1 / LS2	Multi-Friction Twin Plate	260mm organic/button combination	STP01DF	$3,003.00
VE L77 / L98 / LS3	Coppermix Twin Plate	260mm sprung centre	STP01-4	$2,981.00
VE L77 / L98 / LS3	Carbotic Button Twin Plate	260mm sprung centre	STP01-4B	$3,071.00
VE L77 / L98 / LS3	Multi-Friction Twin Plate	260mm organic/button combination	STP01-4DF	$3,091.00
VE / VF L77 / LS3	Coppermix Twin Plate	260mm sprung centre	STP01-5	$2,981.00
VE / VF L77 / LS3	Carbotic Button Twin Plate	260mm sprung centre	STP01-5B	$3,091.00
VE / VF L77 / LS3	Multi-Friction Twin Plate	260mm organic/button combination	STP01-5DF	$3,091.00
6.2L LSA Supercharged	Coppermix Twin Plate	260mm sprung centre	STP01-7	$3,146.00
6.2L LSA Supercharged	Carbotic Button Twin Plate	260mm sprung centre	STP01-7B	$3,256.00
6.2L LSA Supercharged	Multi-Friction Twin Plate	260mm organic/button combination	STP01-7DF	$3,256.00

Installation & Bed-In

Professional installation is available through Built by Boost & Tune. Correct flywheel condition, input spline engagement, spigot support, release-bearing or CSC geometry, release travel and bellhousing clearance should be confirmed before installation. Where applicable, NPC recommends bedding a new clutch in with approximately 1,000 km of normal day-to-day driving before hard use.

Custom / Conversion Applications

Running a non-standard engine and transmission combination? Built by Boost & Tune can work with NPC to specify or manufacture a clutch and flywheel system to suit. Custom clutch plates, billet-steel pressure plates, flywheels, hydraulic CSC or pull-to-push arrangements, twin-plate assemblies, release-bearing carriers and spigot bushes can be supplied or made for supported conversion applications. Measurements or workshop inspection may be required.

Built by Boost & Tune Support

Built by Boost & Tune is an authorised NPC Performance Clutches dealer and approved point of fitment. We can help select a clutch around engine torque, tyre, vehicle use, desired pedal feel and transmission combination, and can quote installation, supporting fabrication and setup separately.
