Plazmaman 2015+ Mustang Coyote S550 Twin Entry Intercooler

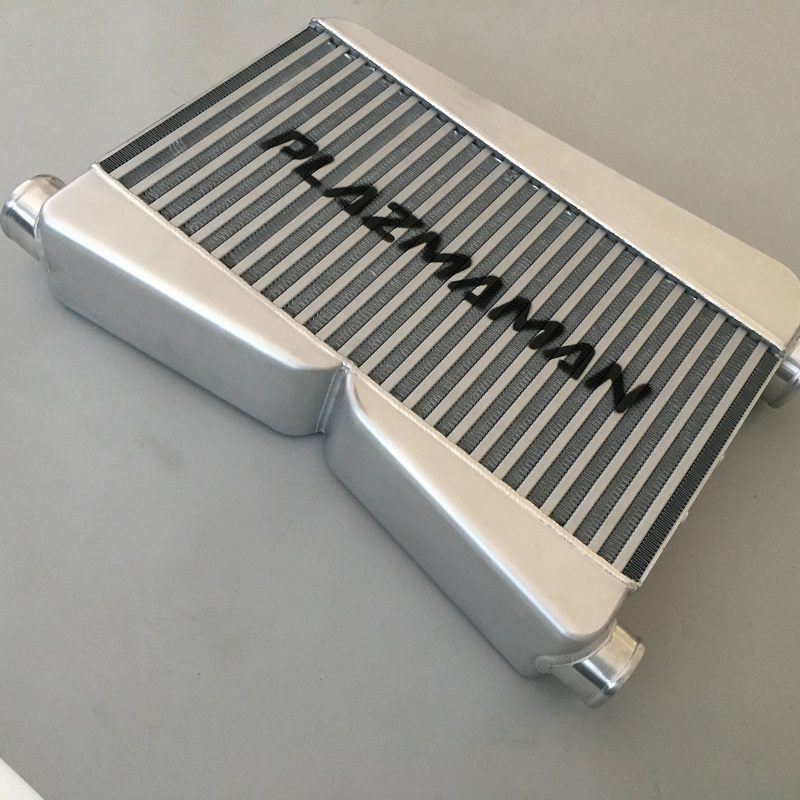

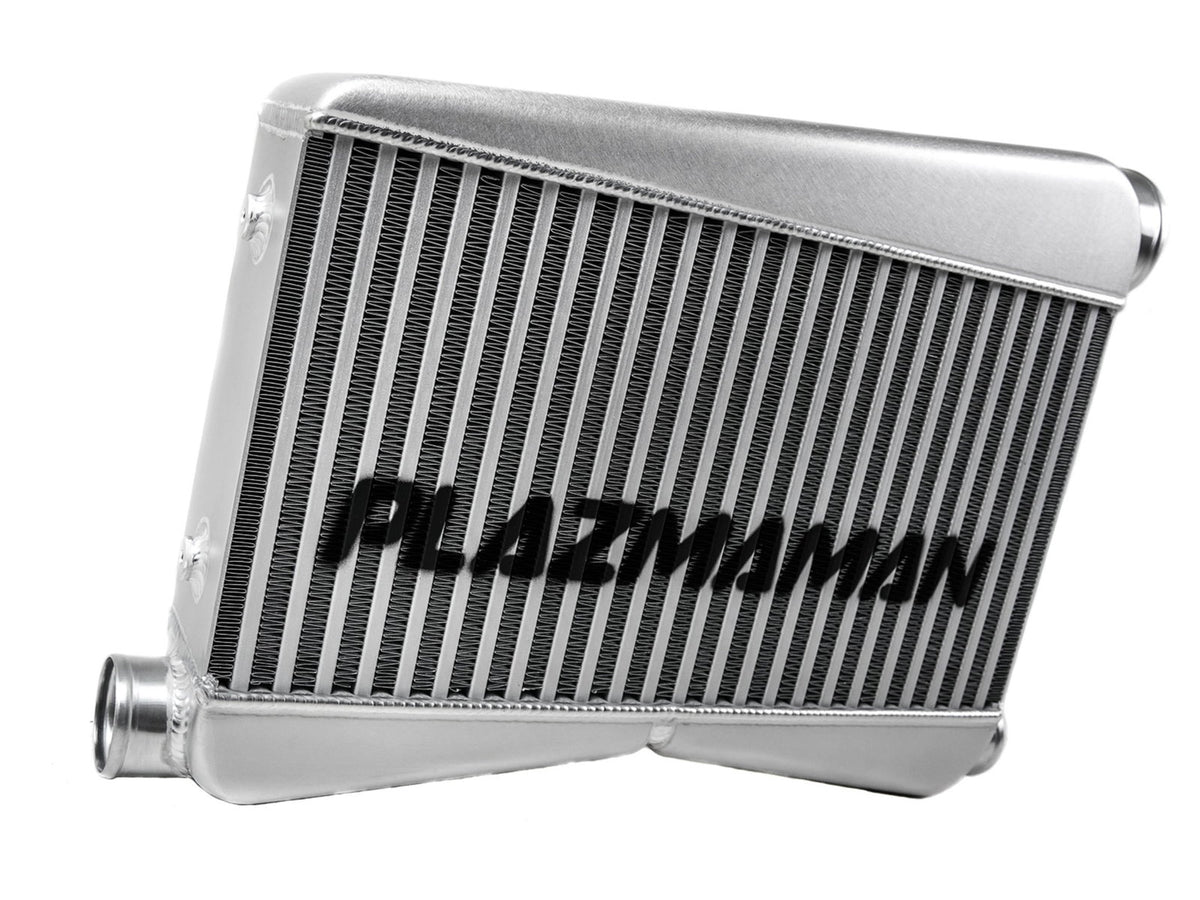

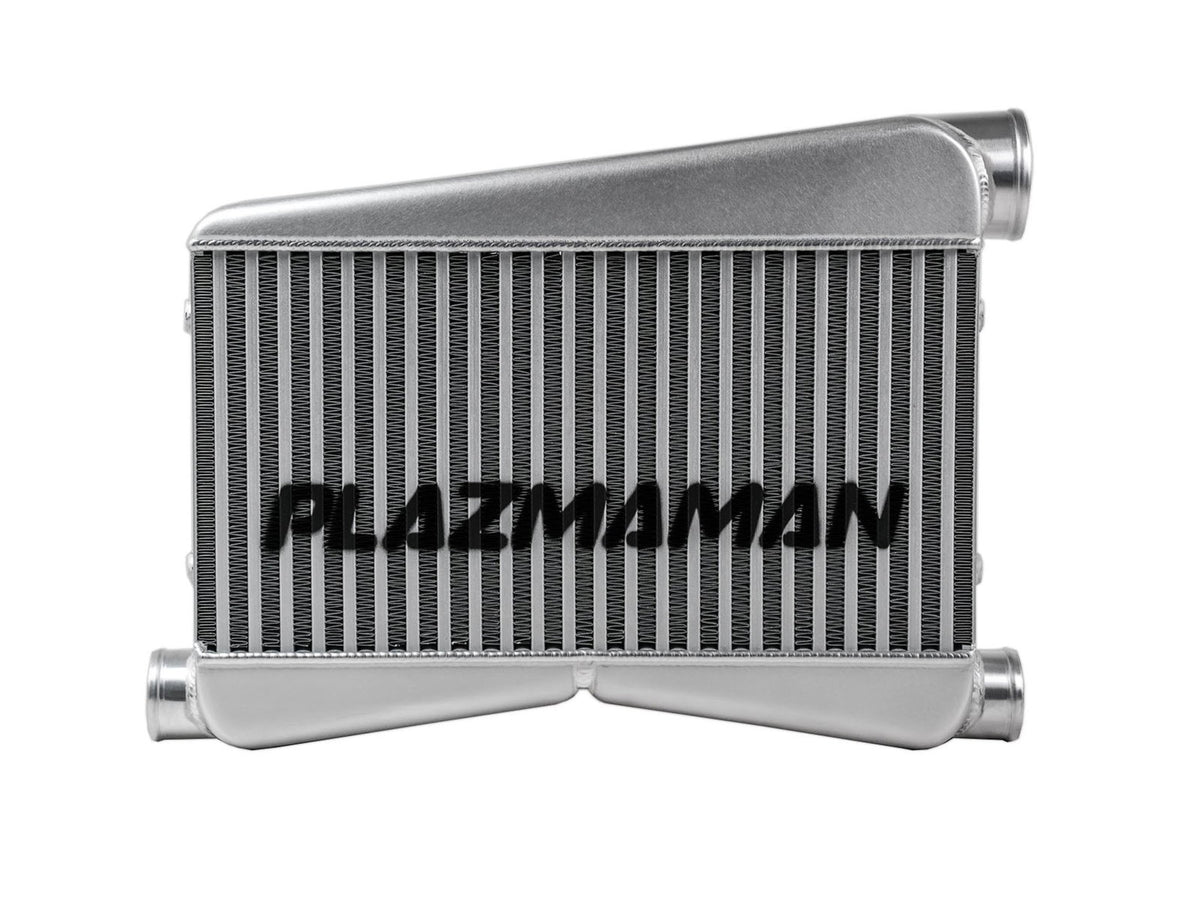

Plazmaman 2015 and newer Mustang S550 twin entry intercooler; photographed finish and end tank options vary

Plazmaman 2015+ Mustang Coyote S550 Twin Entry Intercooler

$2,445.00

Additional build options Inlet, fittings, sensors, piping and other configuration choices

Plazmaman supply / lead time

Made to order — allow approximately 4–6 weeks to manufacture.

I understand the Plazmaman supply / lead-time information shown above is an estimate and may change with supplier workload or availability.

Overview

Plazmaman 2015+ Mustang Coyote S550/FM-FN Twin Entry Intercooler is a vertical-flow package covering boosted street combinations through to high-output race applications.

Current Manufacturer Range

Approximate power capability: 1000–2500 hp depending on selected core/package
Street configuration: lightweight 285 × 550 × 100 mm tube-and-fin race-spec core, approximately 700–1200 hp
Race configuration: 115 mm bar-and-plate race core, approximately 1000–2500+ hp depending on height/specification
Low-pressure-drop architecture
Single- or twin-entry lower tank and single upper outlet configurations available through Plazmaman
Push-on hose or Plazmaclamp connection styles
Raw or black finish currently shown by Plazmaman

Current BBT Configuration

BBT currently exposes Product Finish and Outlet Style only. Plazmaman's current manufacturer configurator includes additional choices for end-tank style, top-tank outlet, hose outlets and core size/application.
