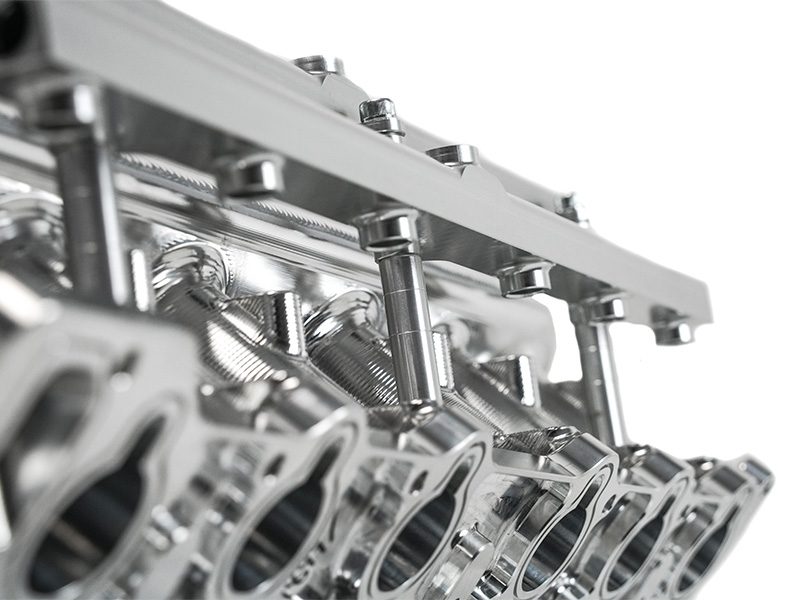

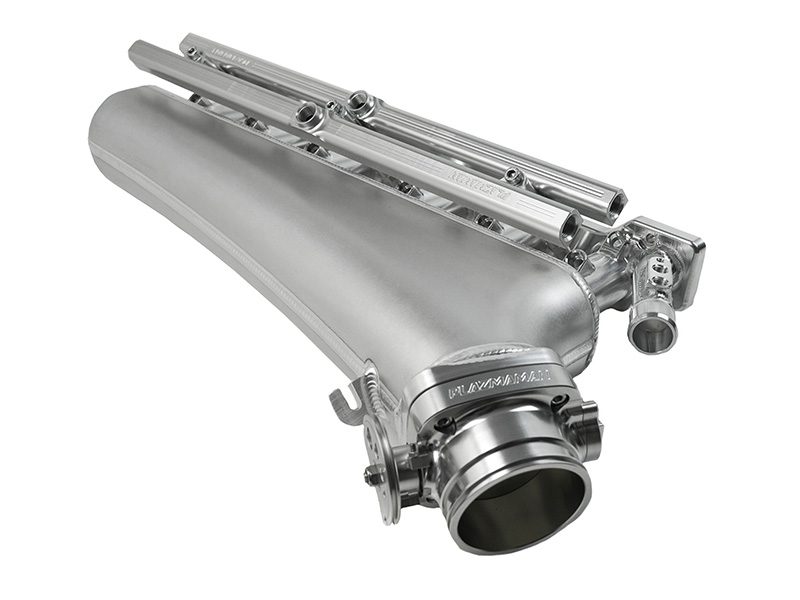

Plazmaman RB30 single cam 12 injector twin rail manifold; photographed configuration and finish are examples

Plazmaman Nissan RB30 Billet Intake Manifold - 12 Injector

Raw / T=I already have a Plazmaman or Bosch throttle body (Please Specify)||I=Hose Style Inlet||P=Existing / OEM TPS (BYO) / V=Bottom of manifold||A=Remotely Mounted RB30||X=Not Required
$3,095.00
Skip to product information
Plazmaman RB30 single cam 12 injector twin rail manifold; photographed configuration and finish are examples
  • Plazmaman RB30 single cam 12 injector twin rail manifold; photographed configuration and finish are examples
  • Plazmaman RB30 single cam 12 injector twin rail manifold; photographed configuration and finish are examples
  • Plazmaman RB30 single cam 12 injector twin rail manifold; photographed configuration and finish are examples
Plazmaman Nissan RB30 Billet Intake Manifold - 12 Injector

Plazmaman Nissan RB30 Billet Intake Manifold - 12 Injector

$3,095.00

PLAZMAMAN BUILT-TO-ORDER CONFIGURATION

Configure your manifold

Choose the main options below. The displayed price updates to match your selected configuration.

Additional build options Inlet, rail, vacuum, piping and other fitment choices
Plazmaman supply / lead time

Made to order — allow approximately 4–6 weeks to manufacture.

Plazmaman Nissan RB30 Single-Cam Billet Intake Manifold — 12 Injector Twin Rail

Race-bred twin-rail intake manifold for Nissan RB30 single-cam applications including Holden VL Commodore and Nissan R31 Skyline builds.

Features

  • 12-injector twin overhead fuel-rail layout
  • Precision CNC-machined billet base
  • Tapered ram-tube runners
  • Formed 3 mm aluminium plenum
  • TIG-welded construction
  • Available in Raw, Black or Polished finish

Configuration

The BBT selector allows compatible Plazmaman mechanical and Bosch Motorsport DBW throttle-body combinations, inlet style, TPS, vacuum-port position, IAC arrangement and optional SFI burst panel.

Supplier-listed weight is approximately 9 kg. Confirm chassis clearance, throttle-body choice, injector and fuel-system requirements before ordering.

Product Details

Product: Plazmaman Nissan RB30 Billet Intake Manifold - 12 Injector
Brand: Plazmaman
Category: Intake

This listing covers the product and application named above. Use the product title, part number where shown, and the existing technical information on this page to confirm it matches the required vehicle or engine combination.

Before Ordering

  • Confirm the listed application matches the vehicle, engine or component being upgraded.
  • Check whether supporting hardware, fabrication, wiring, fluids, gaskets or calibration are required for the installation.
  • If the vehicle has non-standard modifications, confirm compatibility before purchase.

Built by Boost & Tune Support

Built by Boost & Tune can assist with fuel-system specification, installation, plumbing, wiring and calibration where required. Contact us before ordering if you need help confirming suitability or planning the complete upgrade package.

Vehicle Fitment

  • Holden Commodore Vl Rb30E
  • Holden Commodore Vl Rb30Et
  • Nissan Skyline R32 Rb30
  • Nissan Skyline R33 Rb30
  • Nissan Skyline R34 Rb30

Confirm chassis, engine, drivetrain and production-year compatibility before ordering.

Available Options

Product Finish

  • Raw
  • Black
  • Polished

Throttle Package

27 configured selections are available in the product selector. Choose the required combination before adding the product to cart.

Build Package

  • V=Bottom of manifold||A=Remotely Mounted RB30||X=Not Required
  • V=Bottom of manifold||A=Remotely Mounted RB30||X=SFI Spec 23.1 Burst Panel – Welded to top of intake
  • V=Top of manifold||A=Remotely Mounted RB30||X=Not Required
  • V=Top of manifold||A=Remotely Mounted RB30||X=SFI Spec 23.1 Burst Panel – Welded to top of intake
  • V=Bottom of manifold||A=Bosch DBW N/A||X=Not Required
  • V=Bottom of manifold||A=Bosch DBW N/A||X=SFI Spec 23.1 Burst Panel – Welded to top of intake
  • V=Top of manifold||A=Bosch DBW N/A||X=Not Required
  • V=Top of manifold||A=Bosch DBW N/A||X=SFI Spec 23.1 Burst Panel – Welded to top of intake

Lead Time

Plazmaman products are made to order. Allow approximately 2–12 weeks depending on product type and supplier workload; confirm current timing with BBT.
