PPM Ford Barra 3.7L De-Stroker Rotating Kit

PPM Ford Barra 3.7L De-Stroker Rotating Kit is supplied by PPM Racing / Pure Performance Motorsport.

PPM describes this as its high-RPM 3.7L Barra de-stroker rotating assembly for AU/BA/BF/FG applications.

PPM supplier information

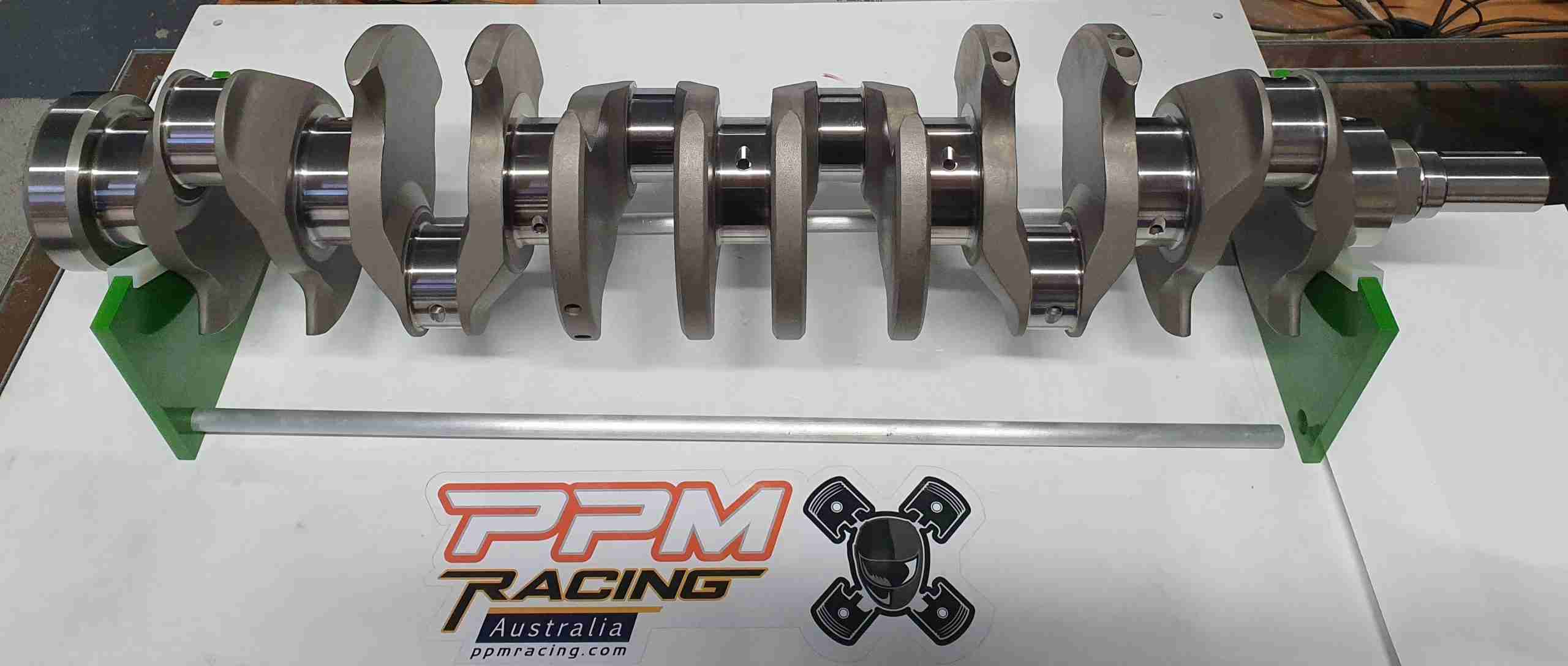

• Custom 12-counterweight EN40B billet crankshaft with 3.62-inch stroke.
• 2618 forged pistons, dual coated, 92.5 mm bore, heavy-duty 9310 0.276-inch-wall wrist pins and rings; supplier lists -8.8 cc or flat-top 9.5:1 configurations.
• 300M Ultimate I-beam connecting rods with 7/16-inch ARP L19 bolts and PPM F1 surface finishing.
• ACL Race Calico-coated connecting-rod and main bearings.
• ARP custom harmonic-damper bolt and ARP Pro Series flywheel bolts.
• PPM advertises the package as 11,000+ RPM capable and its I-beams as proven in 400+ hp-per-cylinder builds.

Ordering and build notes

Supplier states approximately 12–14 weeks when the kit is not in stock. Final compression, piston-to-wall clearance, bearing clearance and balancing must be set for the actual engine build.

BBT fitment note

Confirm the exact engine specification, machining clearances and supporting components before assembly. Professional engine measurement and assembly are recommended.
