PPM Ford Barra 4.0L Rotating Kit

PPM Ford Barra 4.0L Rotating Kit is supplied by PPM Racing / Pure Performance Motorsport.

PPM 4.0L Barra rotating assembly using an OEM-stroke billet crank, forged pistons and Ultimate I-beam rods.

PPM supplier information

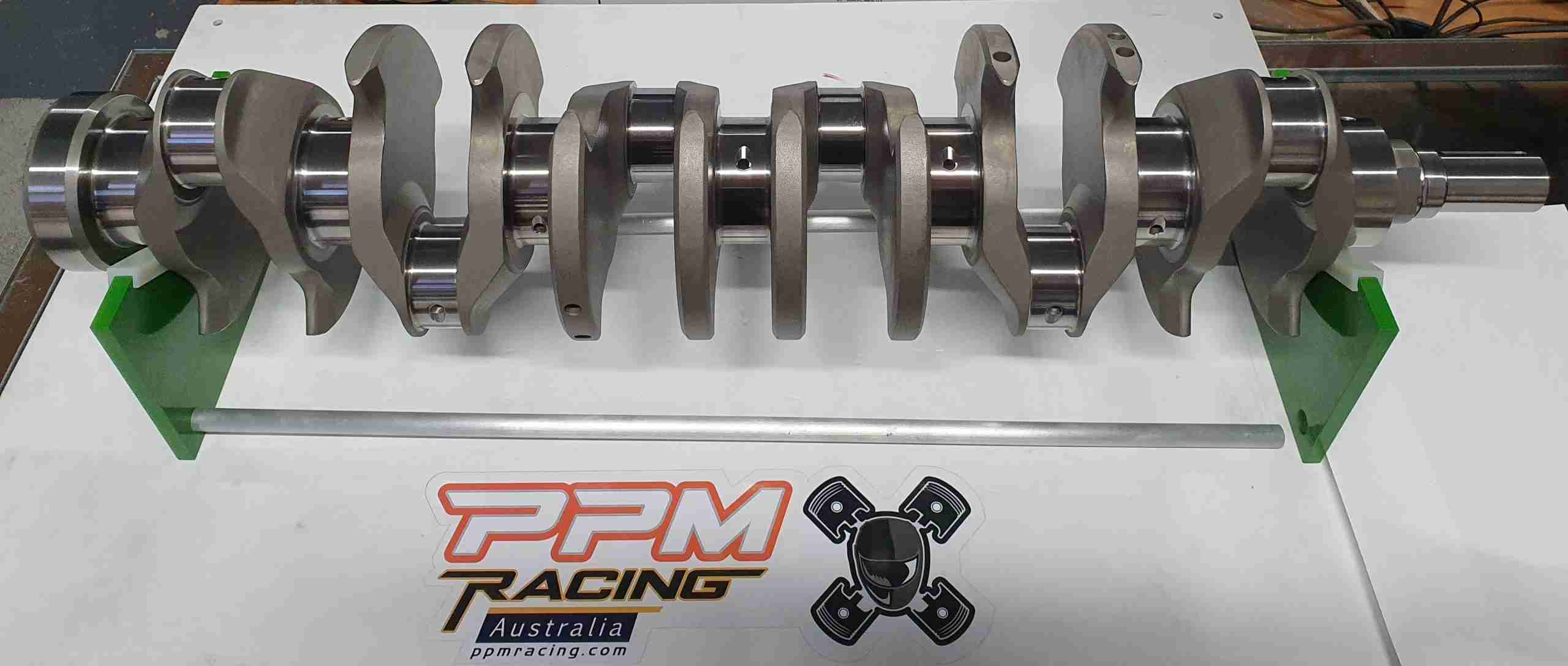

• 12-counterweight custom billet 4340 crankshaft with OEM 3.91-inch stroke.

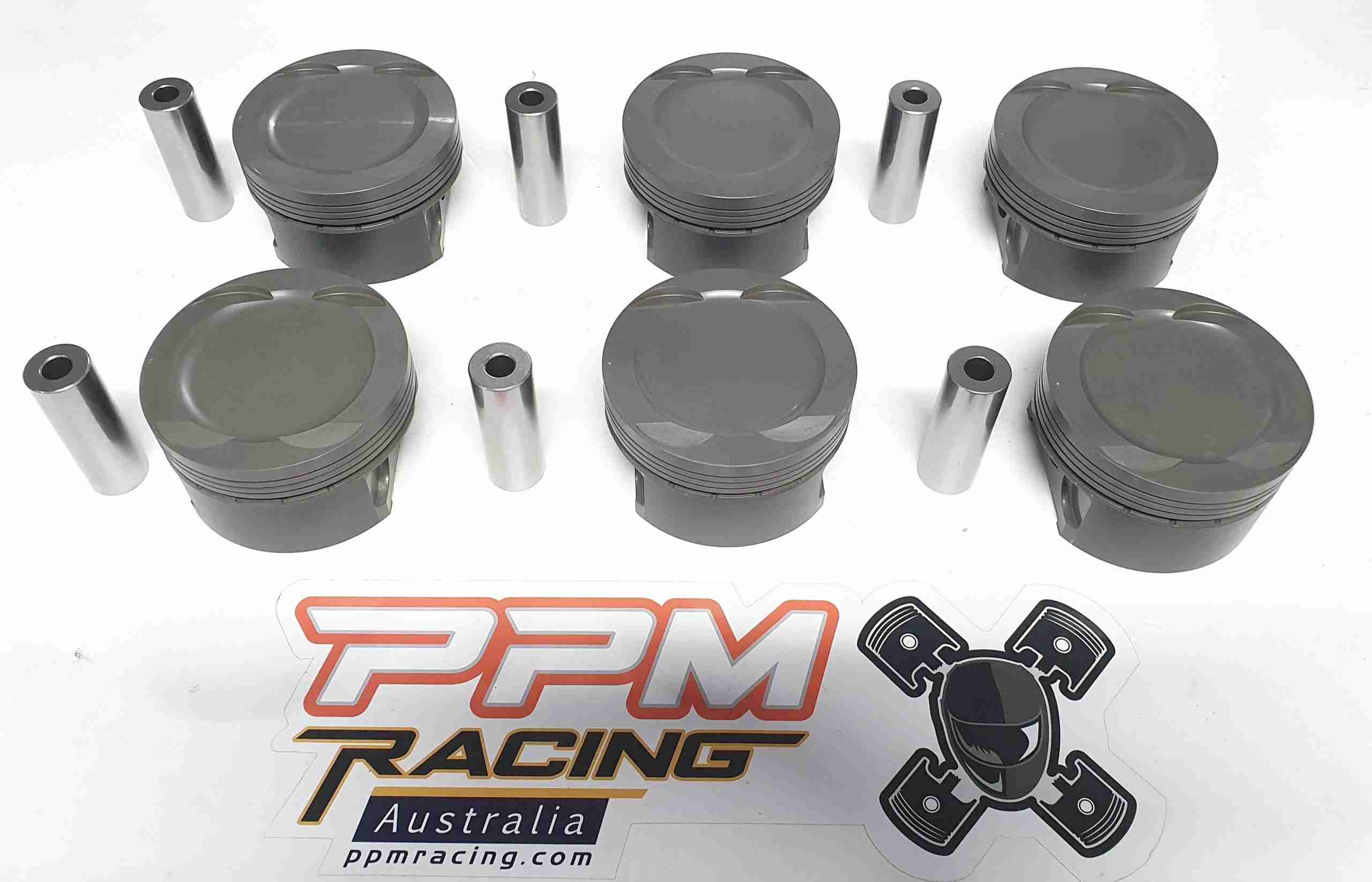

• 2618 or 4032 forged pistons with dual coatings, 92.5 mm bore, H13 6 mm-wall pins and rings; supplier lists -8.8 cc or flat-top 9.5:1 options.

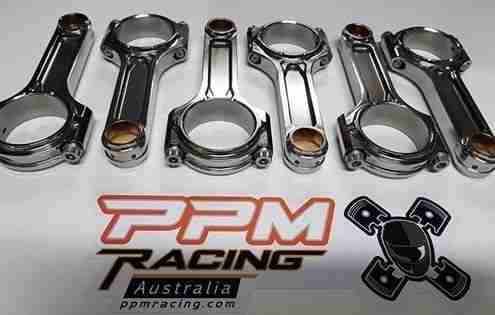

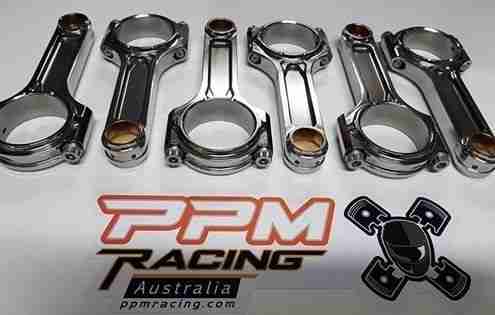

• 4340 Ultimate I-beam rods with 7/16-inch ARP L19 bolts and PPM F1 surface finishing.
• ACL Race Calico-coated connecting-rod and main bearings.
• ARP custom harmonic-damper bolt and ARP Pro Series flywheel bolts.
• PPM advertises the kit as 9,000+ RPM capable.

Ordering and build notes

Supplier states approximately 8–12 weeks if not in stock. Engine clearances, final compression ratio and balancing must be confirmed by the engine builder.

BBT fitment note

Confirm the exact engine specification, machining clearances and supporting components before assembly. Professional engine measurement and assembly are recommended.
