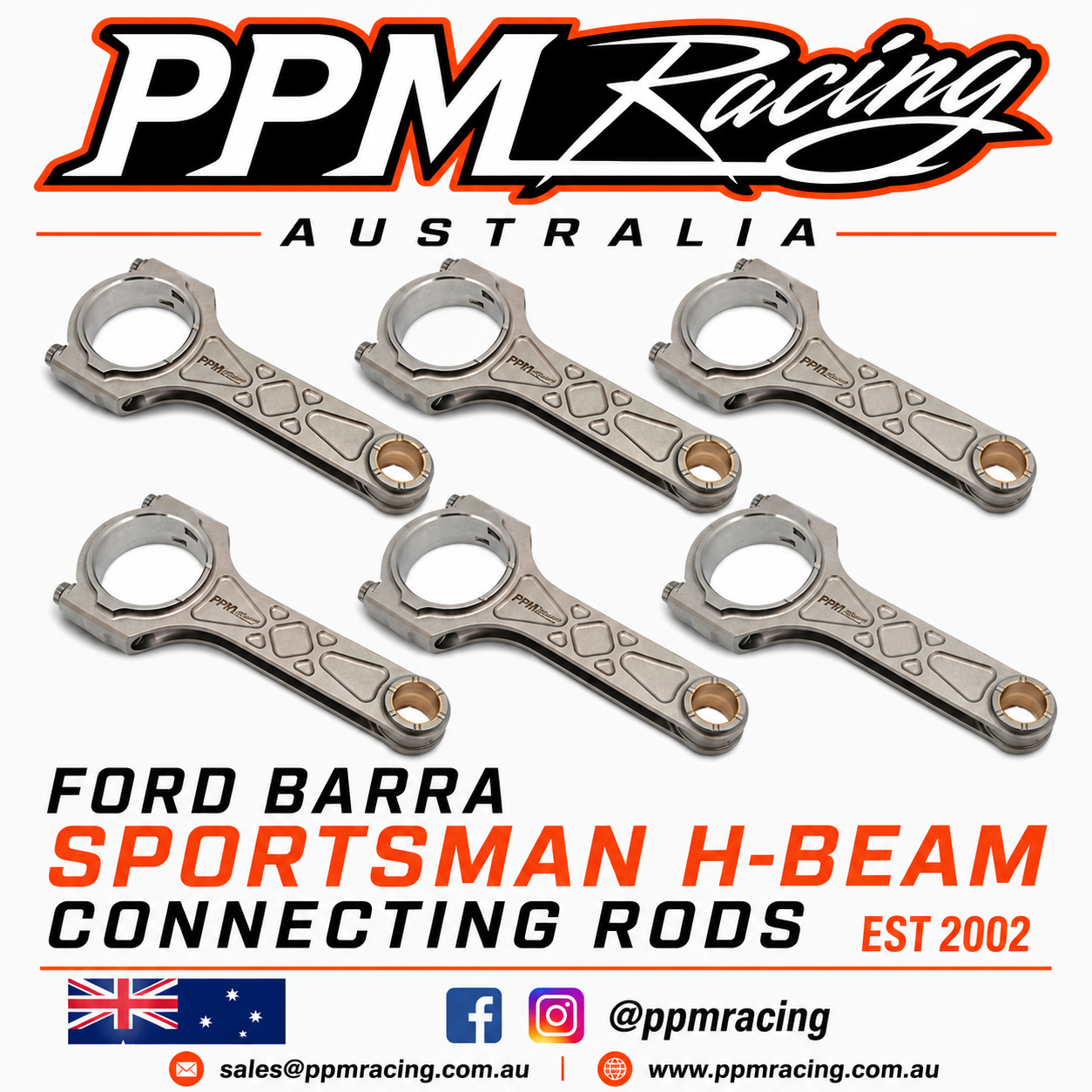

PPM Ford Barra Sportsman H-Beam Connecting Rods

PPM Ford Barra Sportsman H-Beam Connecting Rods

PPM Racing Australia is proud to release “Direct Drop in” No Block Clearancing Needed!  Ford Barra BF FG Sportsman H-Beam Connecting Rods.

As used by TBRE Performance , and Grieci Performance & Race Engines and many Others all over Australia….

PPM Sportsman H-Beam Connecting Rod is designed for around 1000WHP applications…

These Rods have all Factory Standard Sizing….

Rods Weight with ARP2000 7/16″ Bolts: 680g….

1. 100% premium 4340  Material,

2. Strict forge and heat treatment processed forgings, hardness of 38+HR C.

3. Aluminium/Silicon/Bronz alloy bushing

4. 3D software re-designed critical C-bore area, special CNC machining ensure smooth connection and free of sharp edge, significantly improved strength

5. Standard equipped with 7/16″ ARP2000

6. Accurate sized and edge chamfered dowel sleeve for easy and accurate re-assembling.

7. Sunnen hone solution for all big bore and pin bore finishing.

8. Enlarged mating surface increase mating area strength significantly and grinded mating surface makes re-assembling job accurate and easy.

9. Thread-end is blinded to same length as bolt

10. Radial grooved bushing crates an oil reservoir within PE improving pin lubrication.

11. Cap is designed thicker than beam to increase strength

Built by Boost & Tune — authorised PPM Racing dealer, reseller and engine builder. BBT can consult on component selection around power target, RPM, fuel, boost, vehicle use and the complete engine combination.
