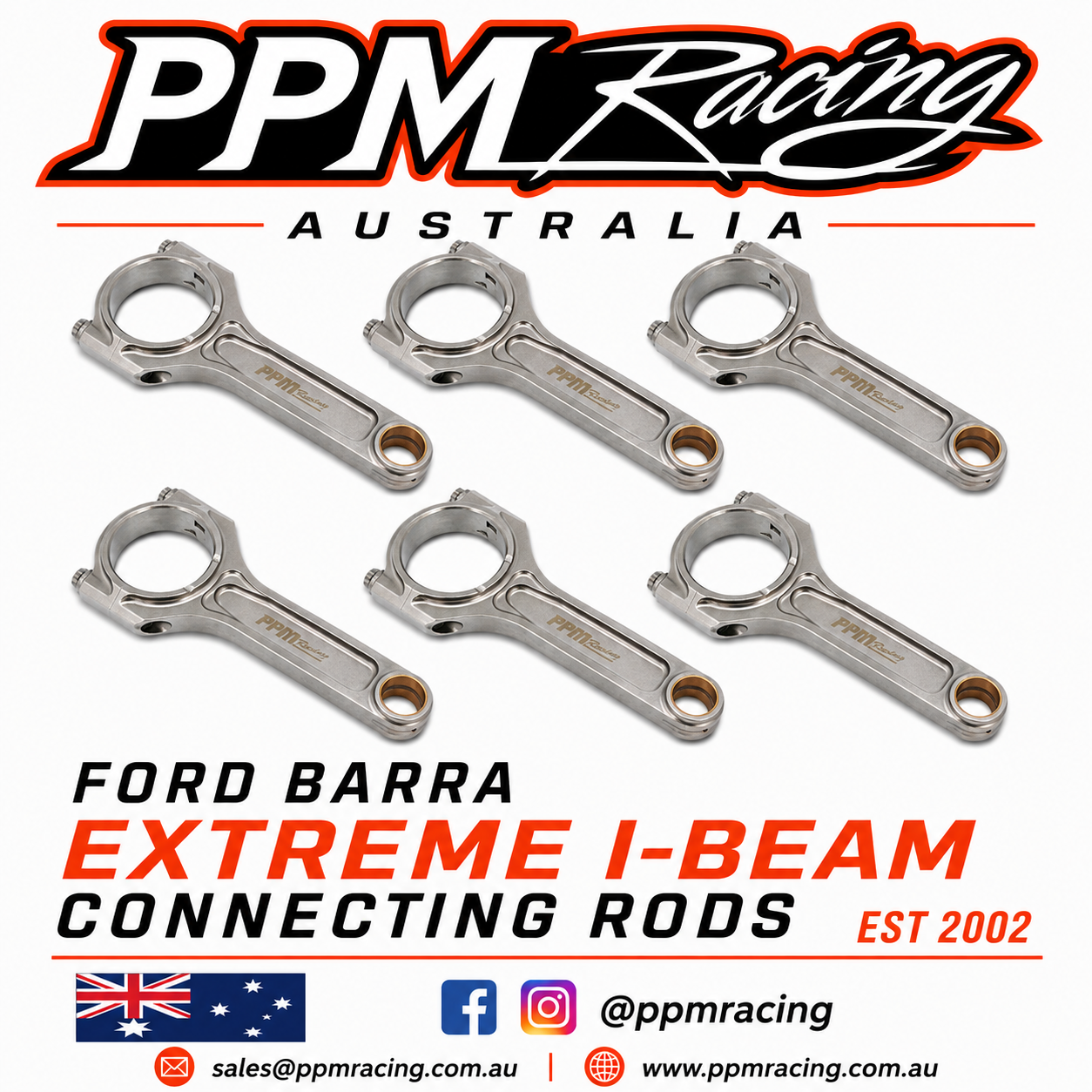

PPM Ford Barra Ultimate I-Beam Connecting Rods

PPM Ford Barra Ultimate I-Beam Connecting Rods

Ford Barra AU BA BF FG Ultimate I-Beam Connecting Rods.

As used by TBRE Performance , and Grieci Performance & Race Engines build @AFAST_1 Street Monster, and many Others all over Australia….

PPM Ultimate I-Beam Connecting Rod is designed for the applications where rod strength is the number one concern rated in excess of 400++HP per cylinder.

These Rods have all Factory Standard Sizing….

1. 100% premium  4340 or 300M Material, (Both Materials Available)

2. Strict forge and heat treatment processed forgings, hardness of 42+HR C.

3. Aluminium/Silicon/Bronz alloy bushing

4. 3D software re-designed critical C-bore area, special CNC machining ensure smooth connection and free of sharp edge, significantly improved strength

5. Standard equipped with 7/16″ ARP2000

6. Accurate sized and edge chamfered dowel sleeve for easy and accurate re-assembling.

7. Sunnen hone solution for all big bore and pin bore finishing.

8. Enlarged mating surface increase mating area strength significantly and grinded mating surface makes re-assembling job accurate and easy.

9. Thread-end is blinded to same length as bolt

10. Radial grooved bushing crates an oil reservoir within PE improving pin lubrication.

11. Cap is designed thicker than beam to increase strength.

Built by Boost & Tune — authorised PPM Racing dealer, reseller and engine builder. BBT can consult on component selection around power target, RPM, fuel, boost, vehicle use and the complete engine combination.
