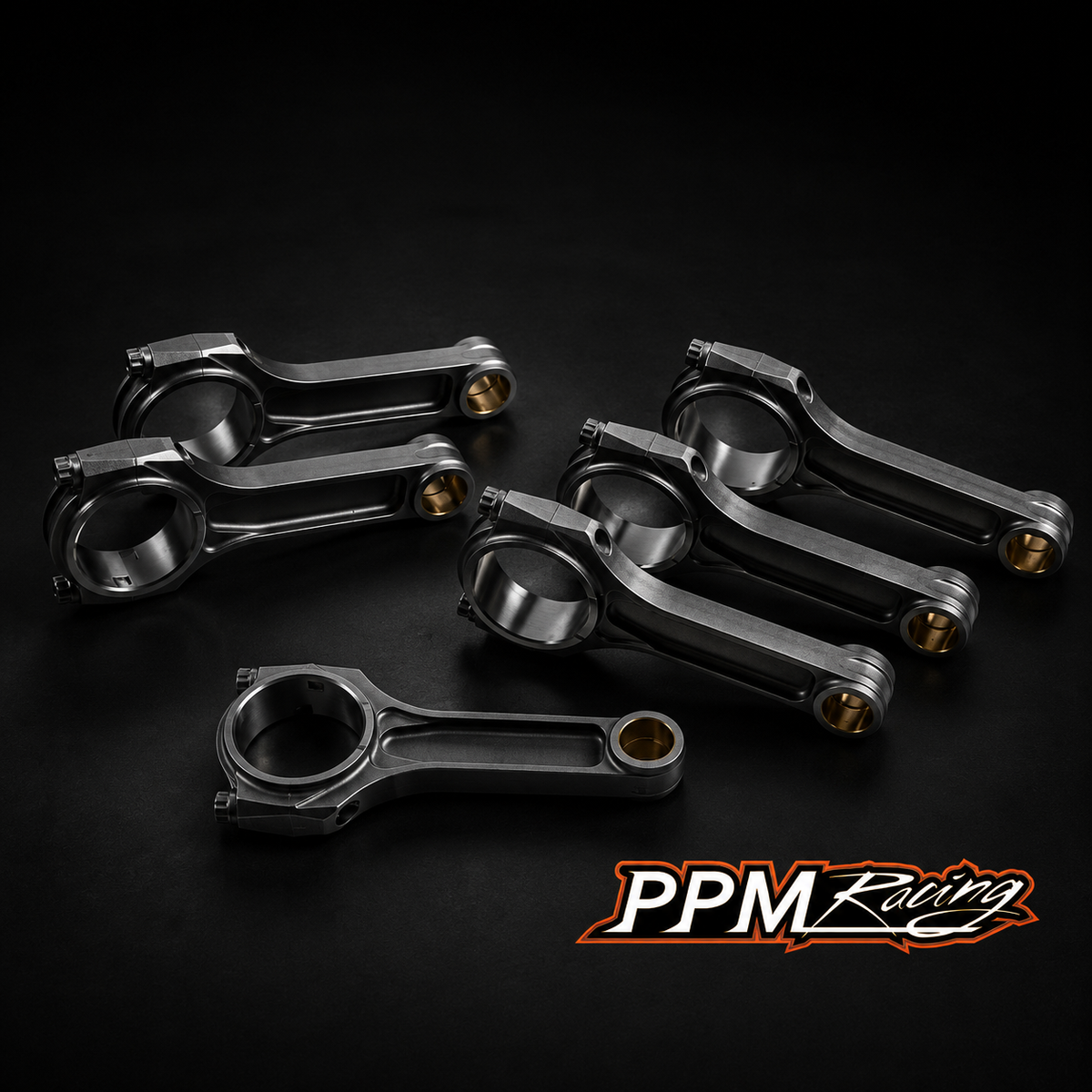

PPM Racing BMW M5 F10 F90 S63B44TU I-BEAM CONNECTING RODS

PPM Racing Ultimate BMW M5 F10 F90 S63B44Tu I-Beam Connecting Rods .

Ultimate I-Beam is designed for the applications where rod strength is the number one concern rated in excess of 300++HP per cylinder.

1. 100% premium 300M forged billet steel

2. Strict forge and heat treatment processed forgings, hardness of 42 HR C.

3. Aluminium/Silicon/Bronze alloy bushing

4. 3D software re-designed critical C-bore area, special CNC machining ensure smooth connection and free of sharp edge, significantly improved strength

5. Standard equipped with ARP2000 bolts (240,000PSI)

6. Accurate sized and edge chamfered dowel sleeve for easy and accurate re-assembling.

7. Sunnen hone solution for all big bore and pin bore finishing.

8. Enlarged mating surface increase mating area strength significantly and grinded mating surface makes re-assembling job accurate and easy.

9. Thread-end is blinded to same length as bolt

10. Radial grooved bushing crates an oil reservoir within PE improving pin lubrication.

11. Cap is designed thicker than beam to increase strength.

Please select your preferred con rod bolt option at check out.

ARP2000

ARP 625+

ARP L19
