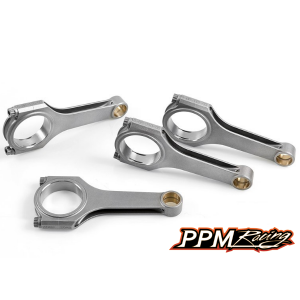

PPM Toyota 4AG / 4AGC H-Beam Connecting Rods

PPM Toyota 4AG / 4AGC H-Beam Connecting Rods

4x H-Beam connecting rods for Toyota 4AG-4AGC engines.

C/C 122mm, B/E 45mm, S/E 20mm

All PPM 4340 con rods feature

Vacuum de-gassed nickel chrome alloy steel (double-air-re melt)

CNC machined

Heat-treated to Rockwell C38-45

Fully shotpeened

Balanced end to end

Supplied with aluminum-bronze wrist pin bushings and ARP 2000 bolts (rated to 220,000psi tensile strength!)

Low sulphur content (less than 0.025%) for fewer inclusions

Known as AS1444-1996-4340 comparable to 4340 AISI/SAE

Rods Weigh starts from 420g.

Our Rods are rated for 800+BHP

Built by Boost & Tune — authorised PPM Racing dealer, reseller and engine builder. BBT can consult on component selection around power target, RPM, fuel, boost, vehicle use and the complete engine combination.
