PSR 0606G Dual Ball Bearing Turbocharger HP Rating 2900 from Pulsar Turbo Systems Australia. Select the exact configuration and view its corresponding price before adding to cart.
- The dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft motion
- 13 Blade PTG-Aero billet compressor wheel 106mm inducer produces up to 2900 hp
- 9 Blade PTG-Aero Inconel 713c turbine wheel with more turbine flow
- Fin cooled aluminum center housing, lighter weight
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

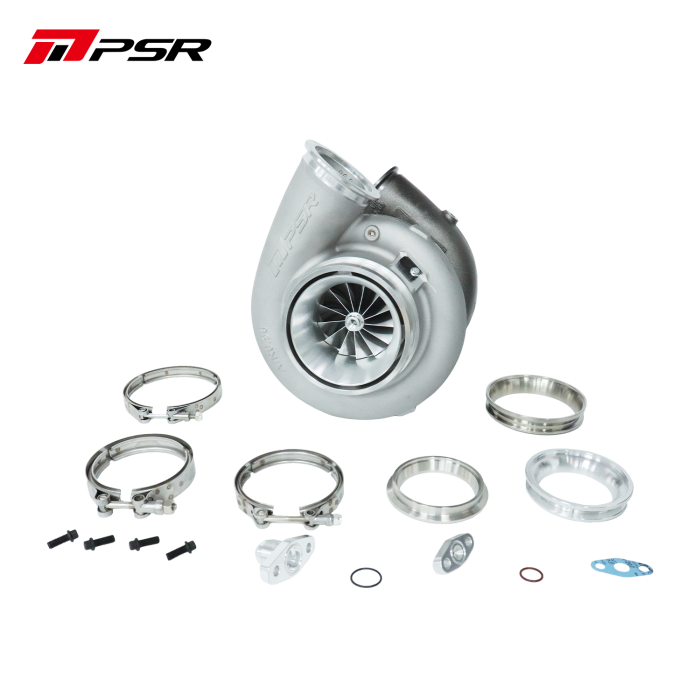

- Installation Hardware: 4-inch flange kit for Comp. Outlet, 3.5-inch flange kit for Turb. Inlet, 5-inch flange kit for Turb. The outlet and oil Drain Fitting kits are included by default
- Oil Feed Fitting(-4AN, 1.65mm (0.065-Inch) Orifice) included
- Max Engine HP: 2900
- Compressor Wheel: 106x144mm
- Turbine Wheel: 112x106mm
Housing Options:
- Dual V Band 1.09 A/R
- Dual V Band 1.24 A/R
Housing Style:
- Standard Housing
- Stainless Steel Wrapped Housing — available at additional cost
- (Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)
The Stainless Steel Wrapped Housing option adds an external stainless steel heat-retaining wrap around the turbine housing to help contain radiant heat around the turbine area.
Where listed, the turbocharger can also be selected without a turbine housing.
Choosing the turbo configuration
This turbocharger is offered for a custom application. Check the selected compressor and turbine housing, inlet and outlet flanges, manifold clearance, oil and water connections and supporting intake and exhaust work for your build.
Current selectable options
- Compressor Housing Option: Standard, T51R
- Turbine Housing Option: Without Turbine Housing, Dual V Band 1.09 A/R, Dual V Band 1.24 A/R
- Housing Style: Standard Housing, Stainless Steel Wrapped Housing
