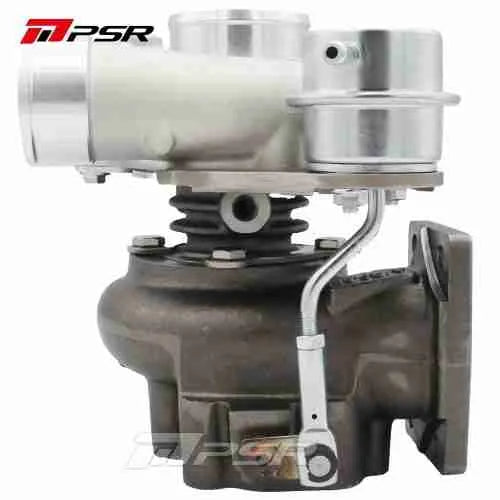

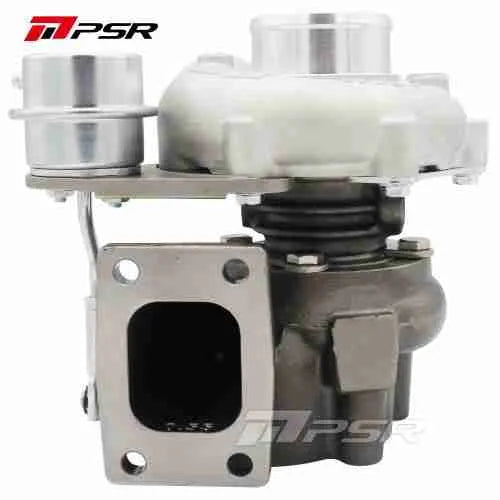

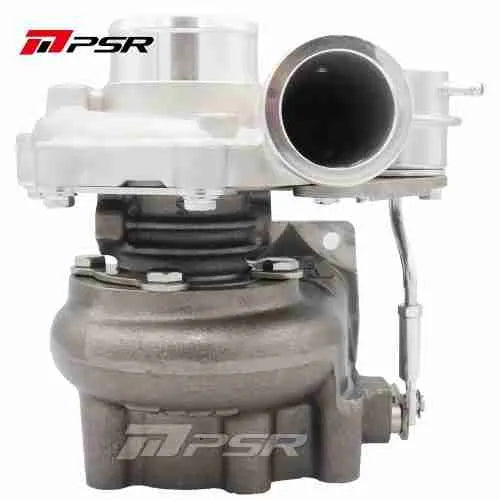

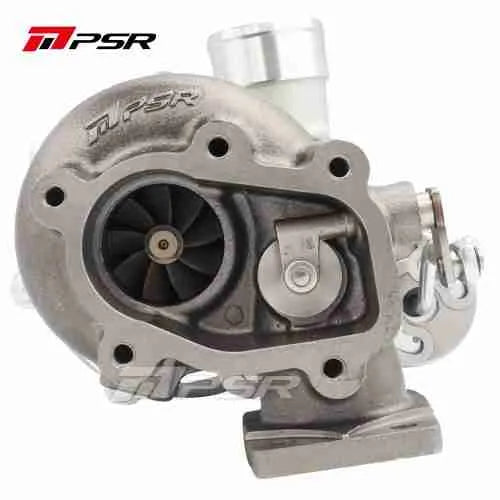

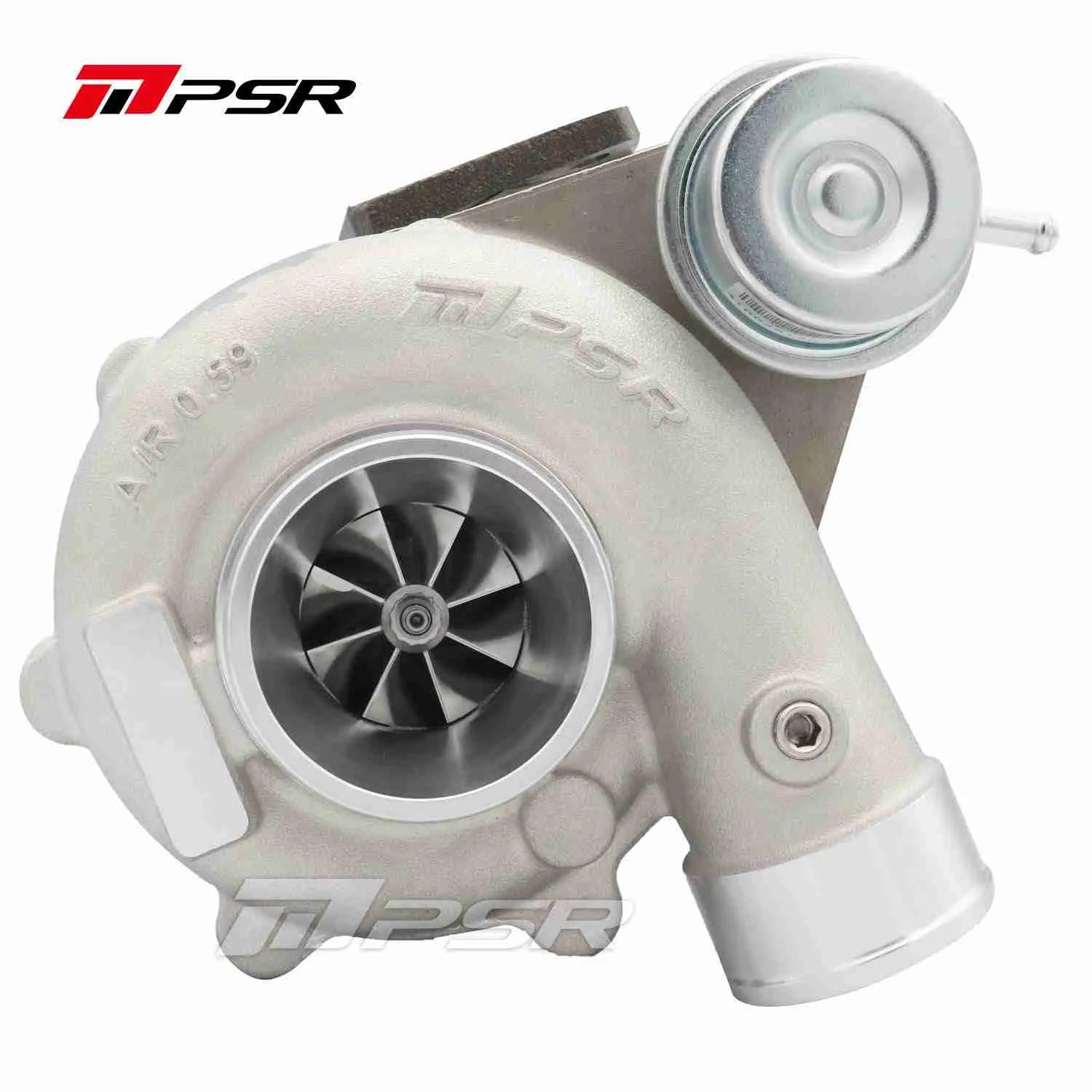

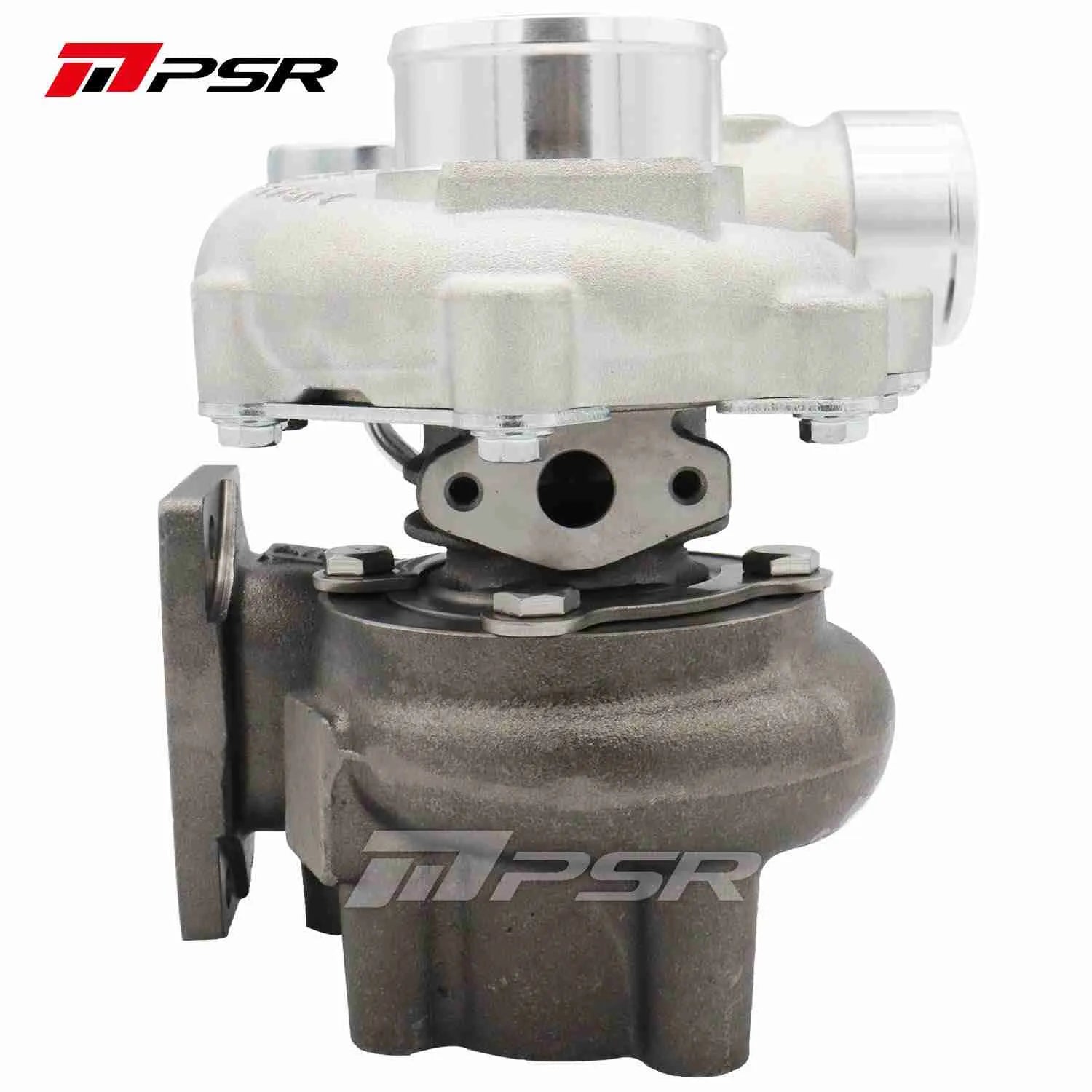

PSR Dual Ball Bearing 3942G Ball Bearing Turbocharger HP Rating 300

• Meeting Requirements of the Smallest Engines
• Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
• Oil-cooled Centre Housing
• Forged Fully-Machined Compressor Wheel with Extended Tip Aerodynamics Design
• 9 Blade 713c Turbine Wheel, 47*42mm
• Internal Wastegate Turbine Housing, 0.55A/R
• HP Rated at 300HP at the flywheel
• Suitable Engine Size: 0.8-2.0L

• PSR 3942G Dual Ceramic Ball Bearing Turbocharger HP Rating 300

  • Bearing Systems: Dual Ceramic Ball Bearing
  • Compressor Wheel: 39*52mm
  • Turbine Wheel: 47*42mm
  • Compressor Inlet: 60mm Hose
  • Compressor Outlet: 50mm Hose
  • Turbine Inlet: T25
  • Turbine Outlet: 5 Bolt
  • Oil Feed(excl’): M10 x 1
  • Internal Wastegate Turbine Housing A/R: 0.55

Stainless steel wrapped housing option

Where the stainless steel wrapped style is selected with a turbine housing, Pulsar adds an external stainless heat-retaining wrap around that housing to help contain radiant heat near the turbine. Standard Housing and Stainless Steel Wrapped Housing are separate selectable styles; the wrapped style costs extra.

Pulsar advises allowing 1–2 weeks for a wrapped housing when it is not in stock. BBT can confirm current availability and dispatch timing for the chosen configuration.

If the turbo is selected without a turbine housing, there is no turbine housing to wrap. Choose an eligible turbine housing together with the wrapped style when a wrapped unit is required.

BBT can help match the selected turbine A/R, flange pattern, wastegate arrangement and wrapped-housing clearance to your manifold, exhaust and turbo setup. Send BBT your vehicle and turbo details for a configuration check.

Current selectable options

• Turbine Housing Options: Without Turbine Housing or Actuator, T25 Inlet 5 Bolt Outlet 0.55A/R
• Housing Style: Standard Housing, Stainless Steel Wrapped Housing
