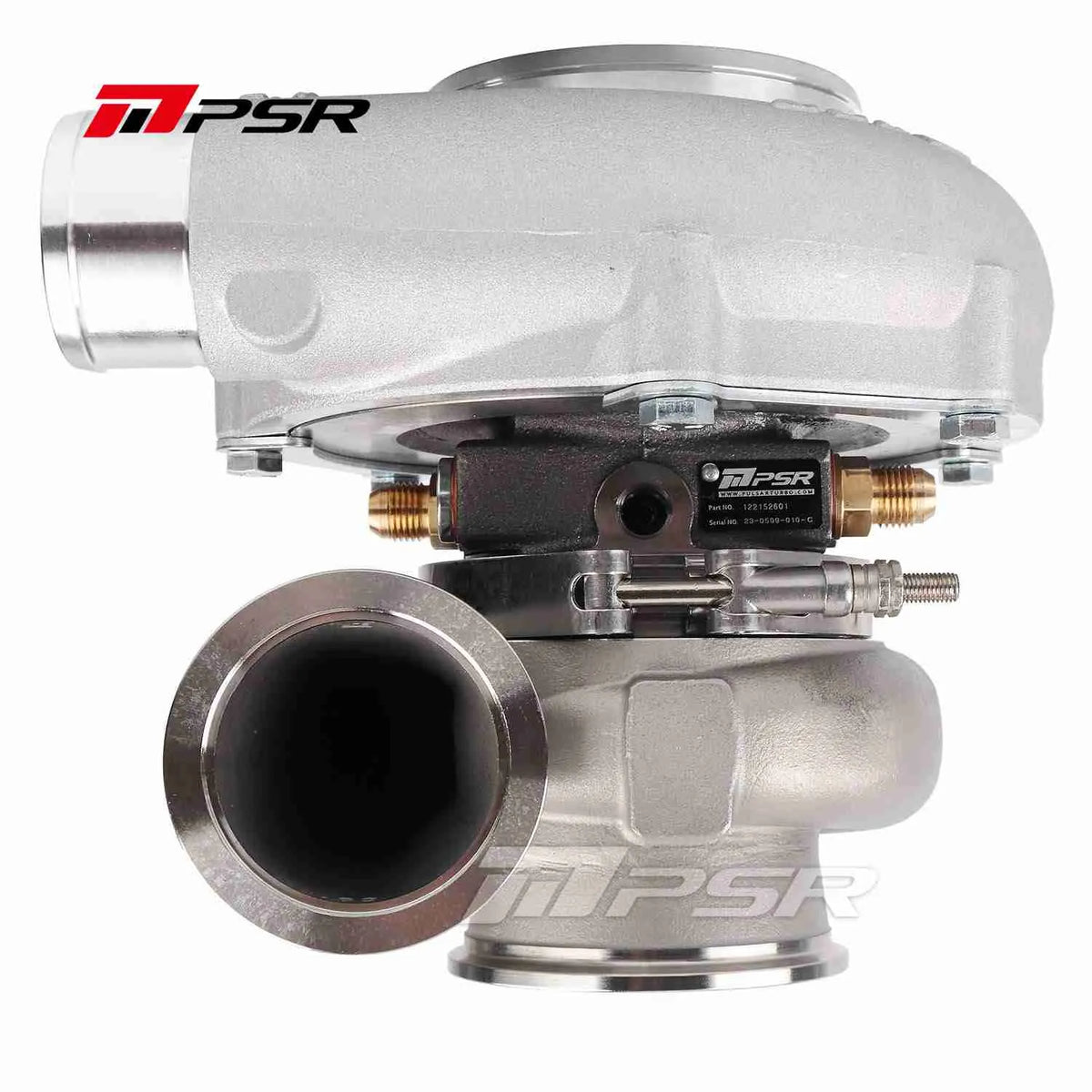

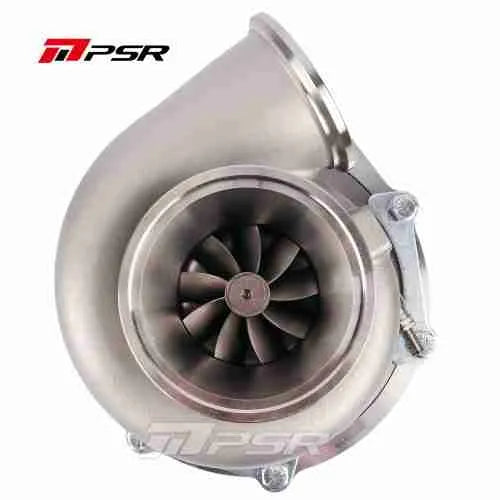

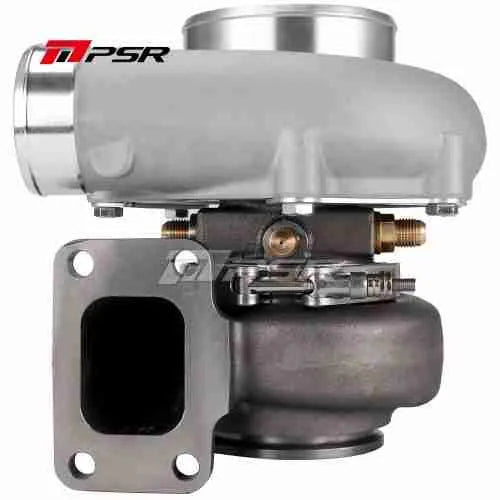

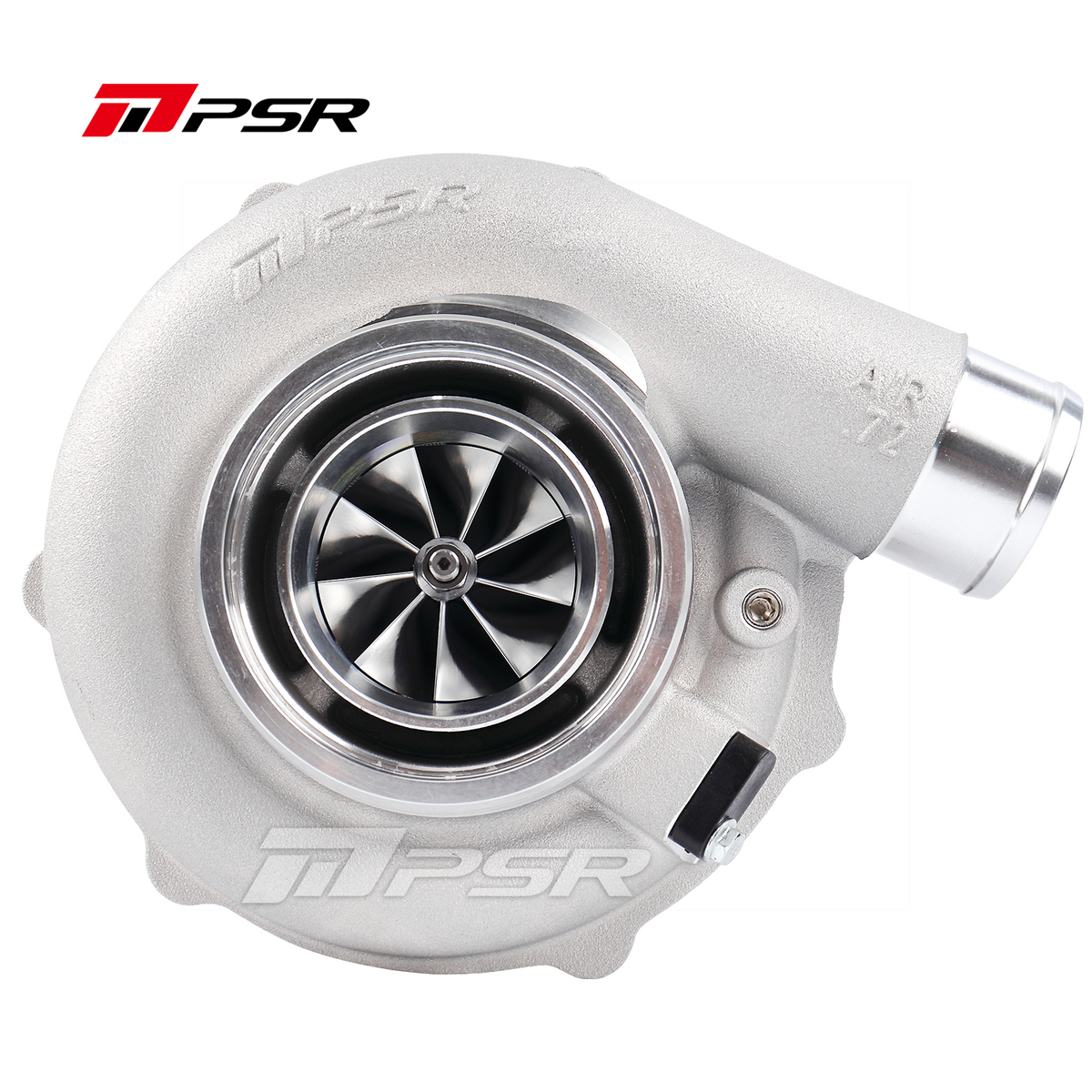

PSR 5862G Dual Ball Bearing Turbocharger HP Rating 770

PSR 5862G Dual Ball Bearing Turbocharger HP Rating 770 from Pulsar Turbo Systems Australia. Select the exact configuration and view its corresponding price before adding to cart.

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion
• 9 Blade G-Aero billet compressor wheel with extended tapered tip technology
• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• Compressor Wheel: 58*71mm
• Turbine Wheel: 68*62mm
• Compressor Inlet: 4” Hose
• Compressor Outlet: 2” Hose
• Turbine Inlet: T3/T4/V-Band
• Turbine Outlet: 3” V-Band
• Water Ports: 2-M14 x 1.5
• Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
• Oil Drain: Std T3

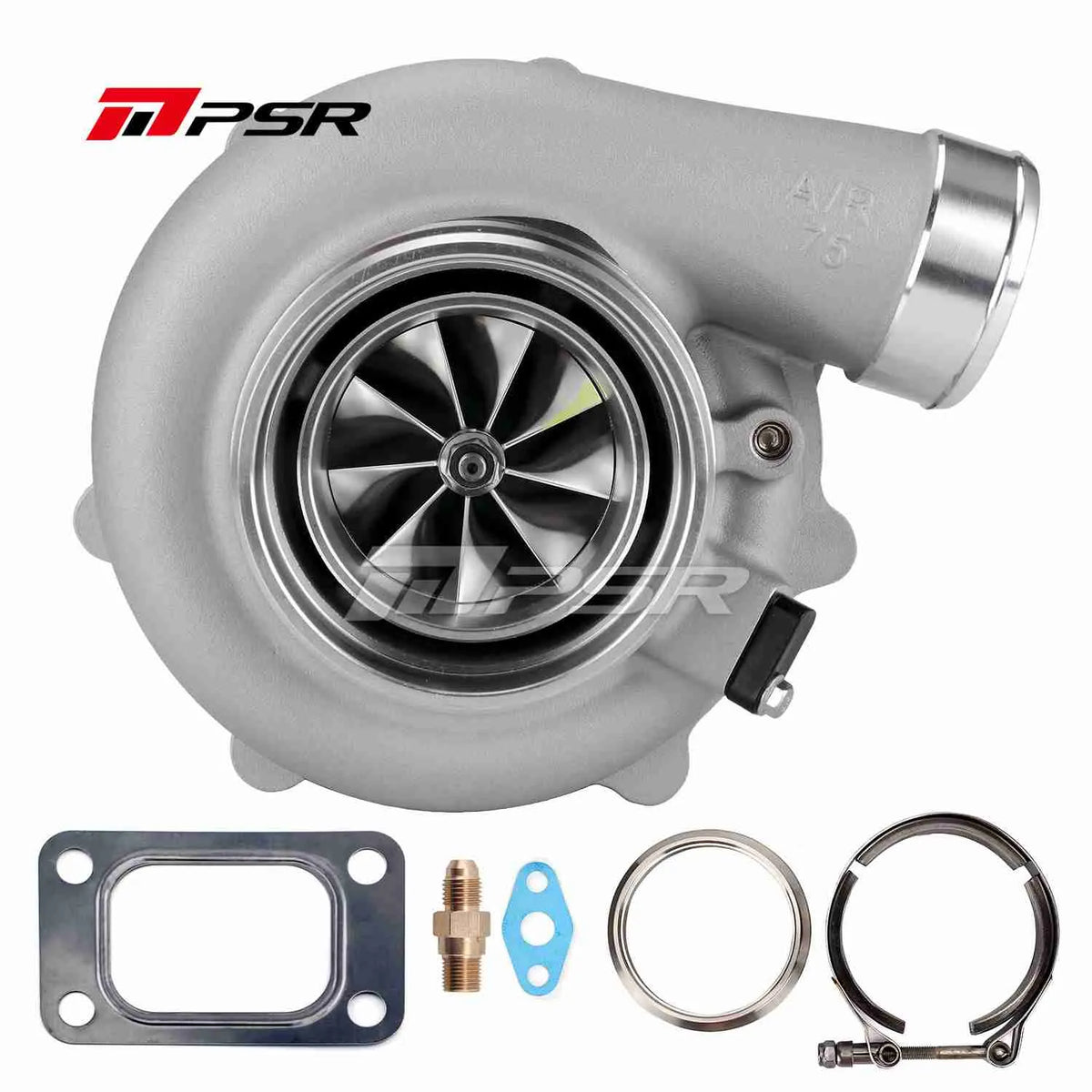

• Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp

Choosing the turbo configuration

This turbocharger is offered for a custom application. Check the selected compressor and turbine housing, inlet and outlet flanges, manifold clearance, oil and water connections and supporting intake and exhaust work for your build.

Current selectable options

• Compressor Housing Options: Without Compressor Cover, Standard, T51R
• Turbine Housing Option: Without Turbine Housing, T3 .83 A/R V Band, T3 Divided .86 A/R V Band, T4 .82 A/R V Band, T4 Divided .85 A/R V Band, T4 Divided 1.06 A/R V Band, Dual V Band .83 A/R, Dual V Band 1.01 A/R, T4 Open .63 Stainless Steel V Band, Dual V Band .82 A/R Stainless Steel
