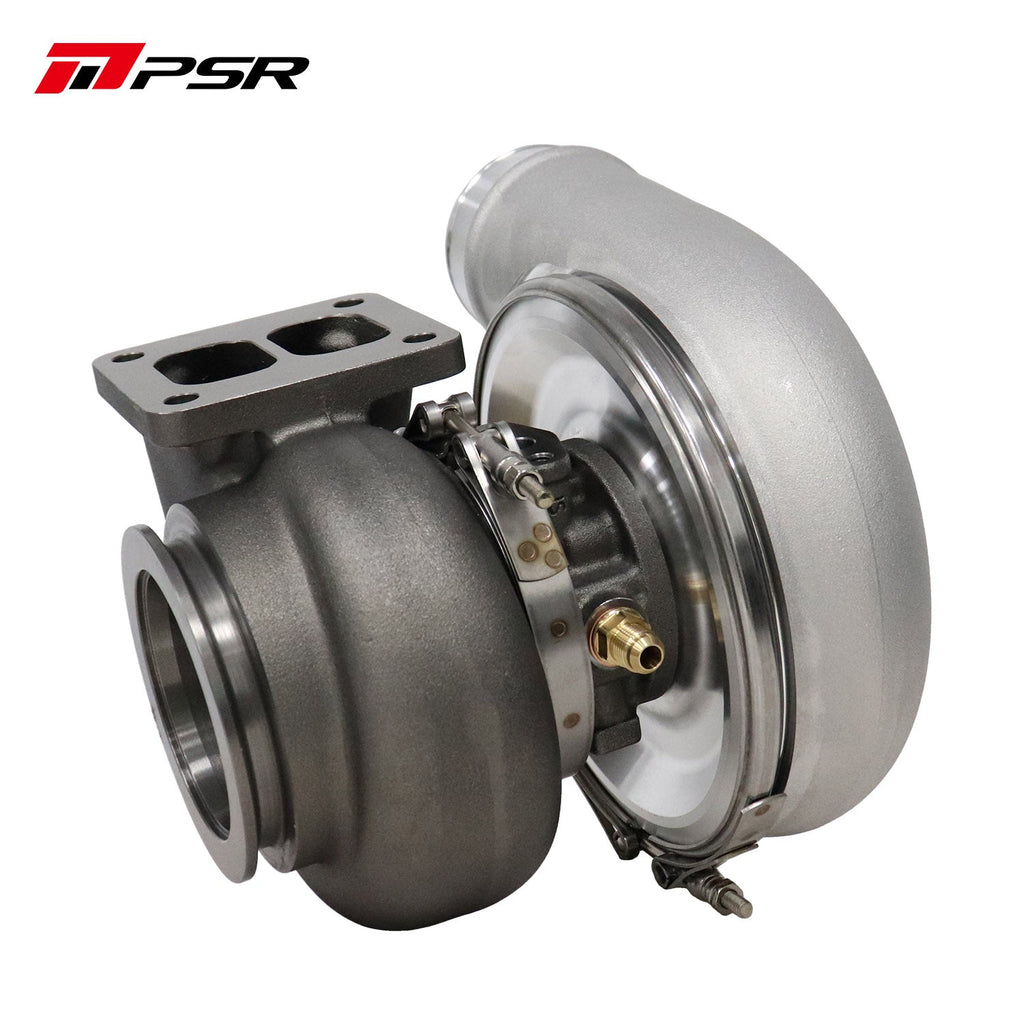

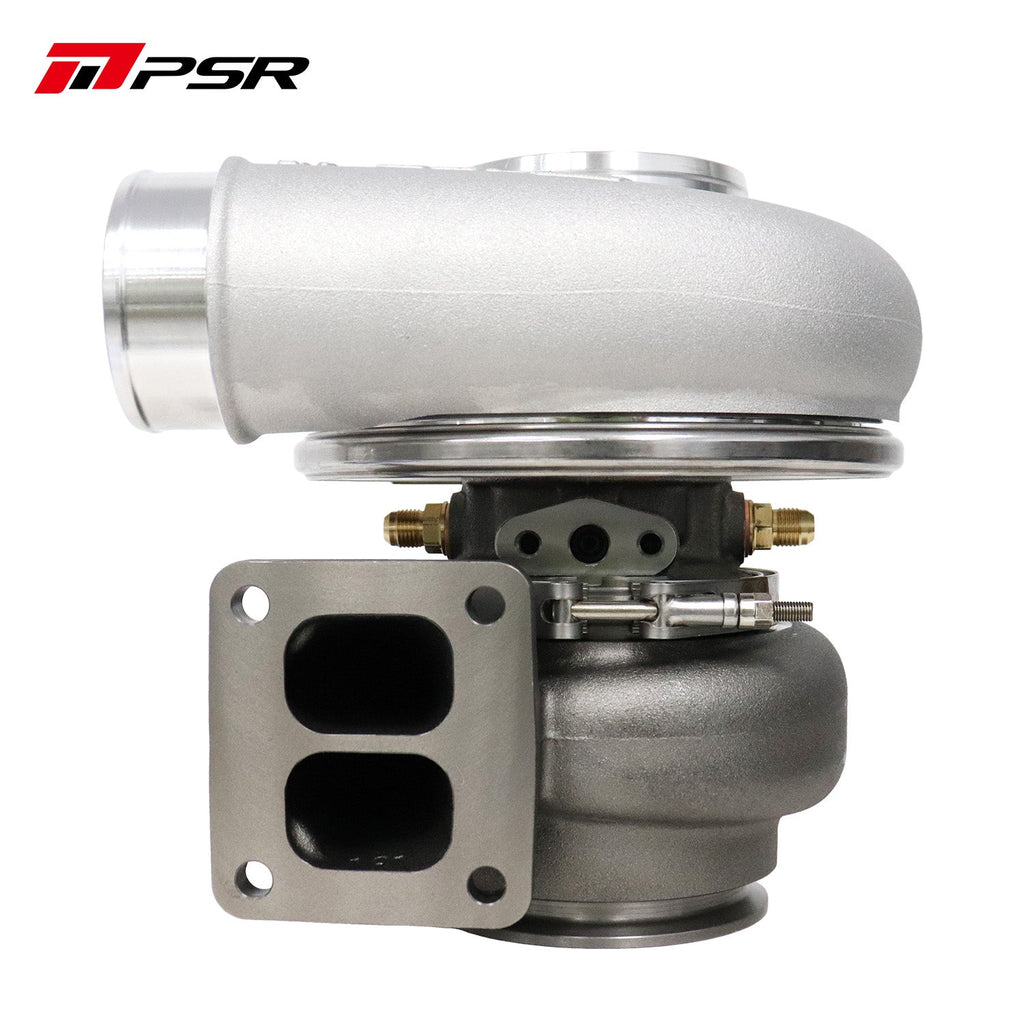

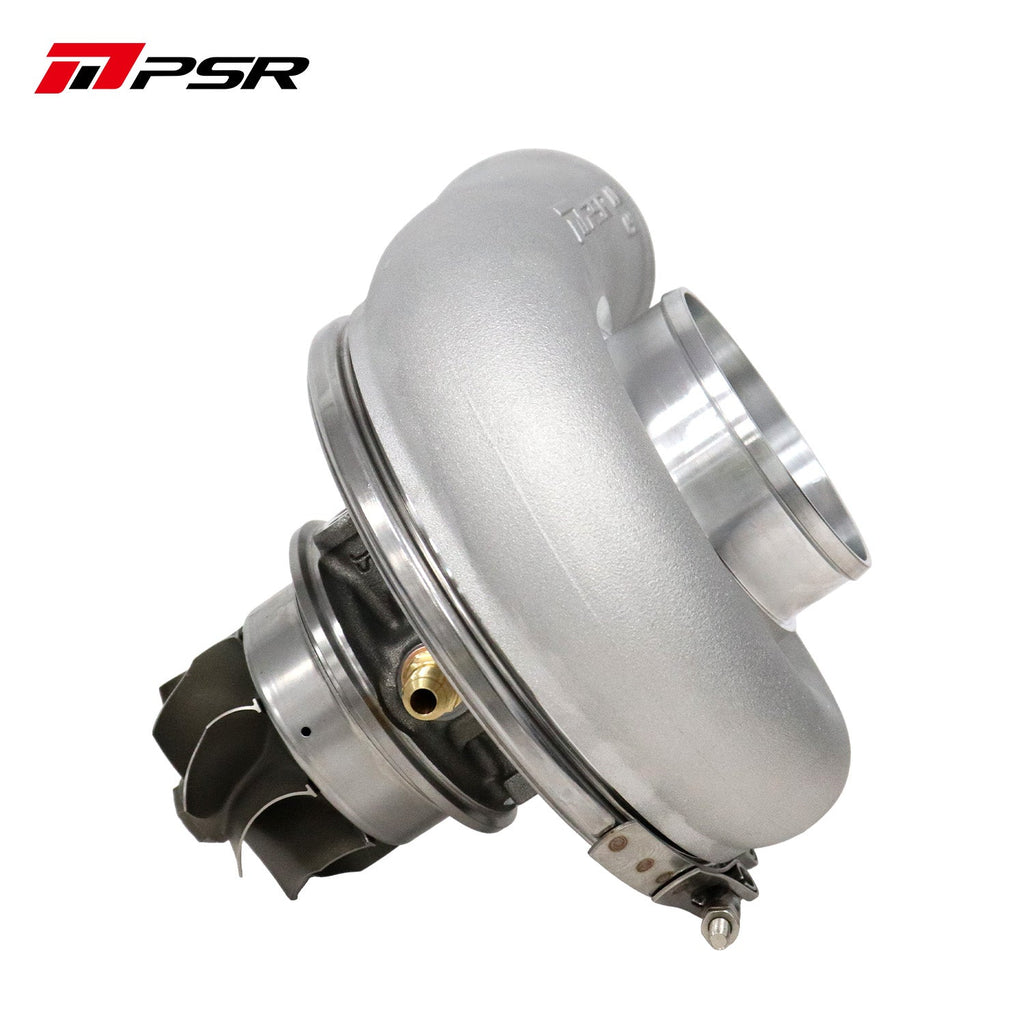

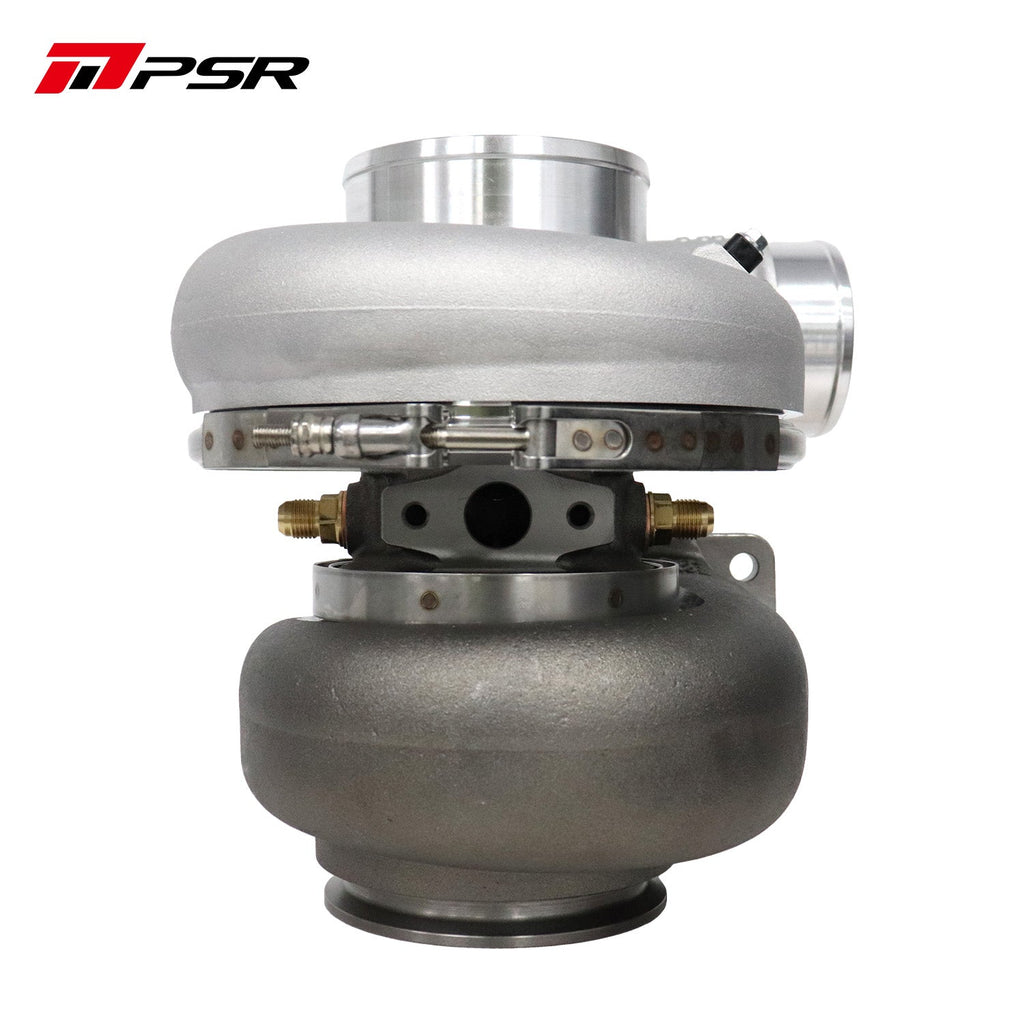

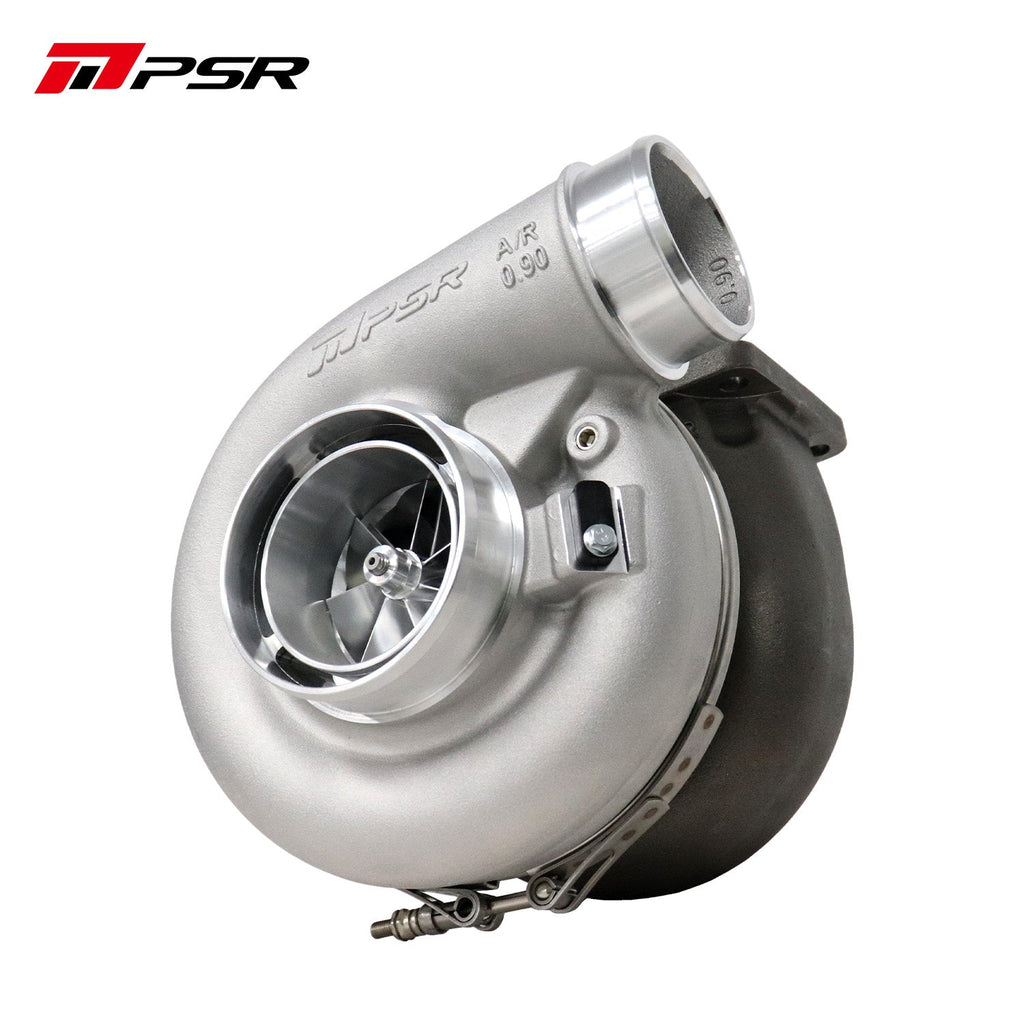

PSR 7382GR Compact Dual Ball Bearing Turbocharger HP Rating for Class Legal Race

• Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
• 7+7 Blade GR compressor wheel will get more air flow
• 9 Blade PTG-Aero Inconel 713c turbine wheel

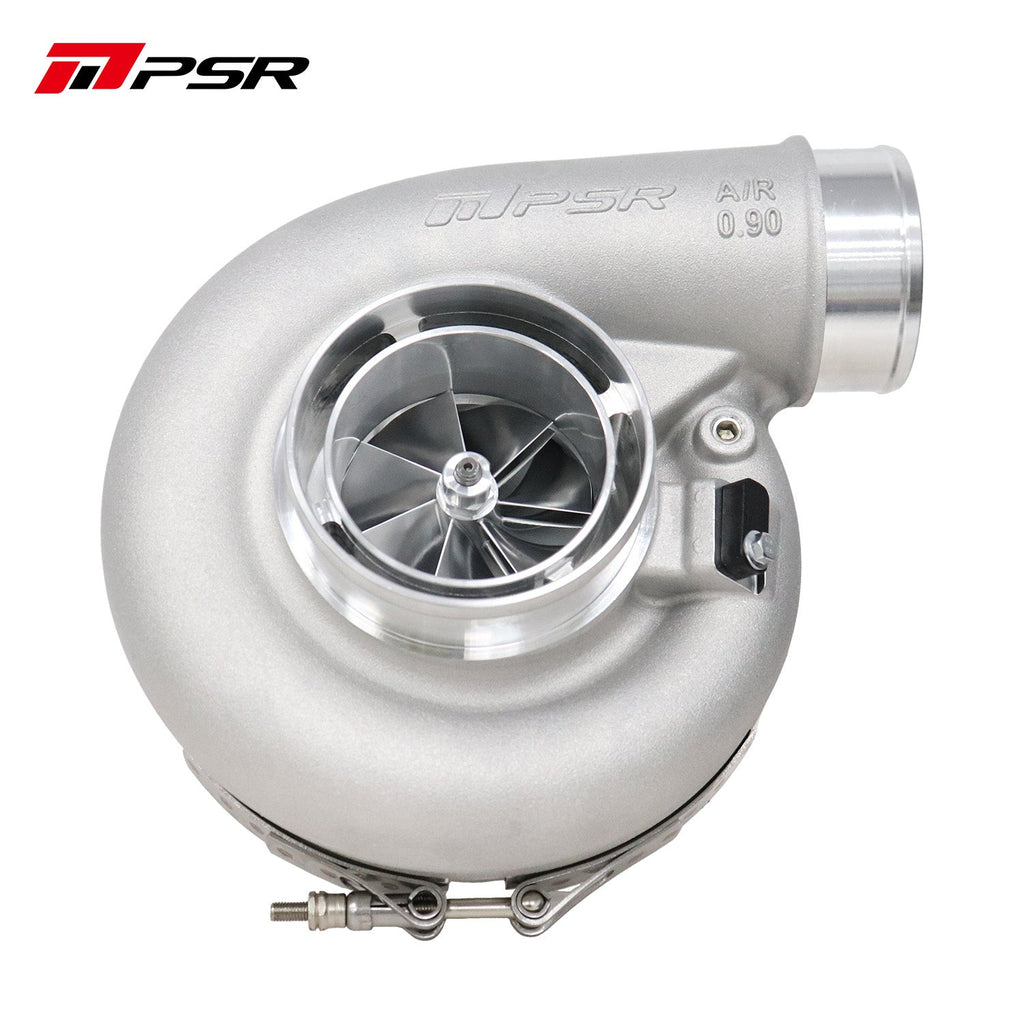

• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports

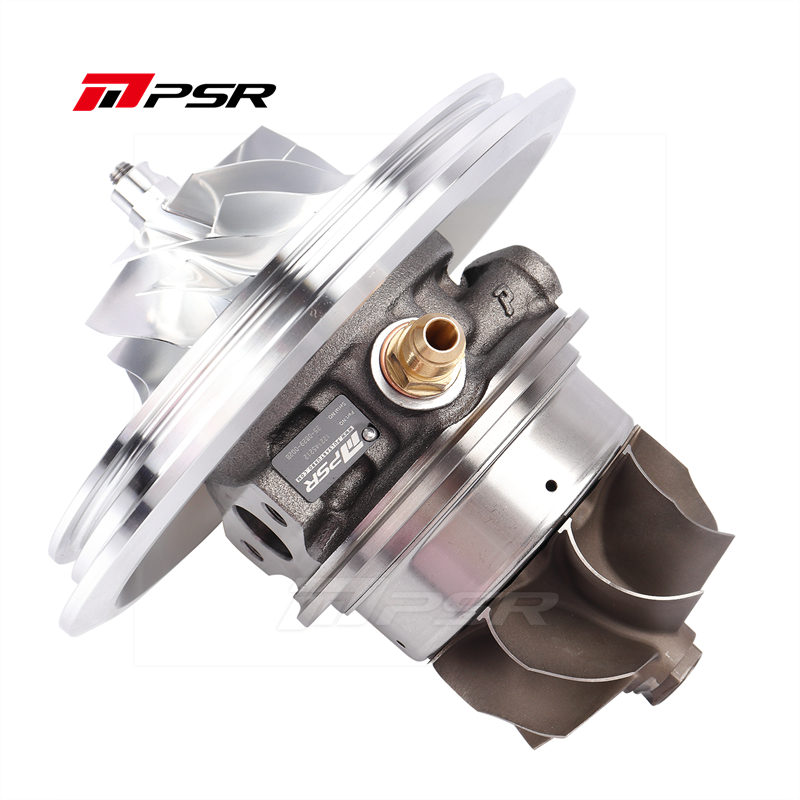

• Water and oil fittings included with the super core
• 9 Options in Turbine Housing
• Installation Hardware: 3″ flange kit for Comp. Outlet, T4 Gasket/3″ flange kit for Turb. Inlet, 3.5″/4″ flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
• Oil Feed Fitting(-4AN 1.65mm (0.065″) Orifice) included

• Compressor Wheel: 73.9*102mm, 7+7 Blade
• Turbine Wheel: 89*81.6mm
• Compact Compressor Inlet: 4” Hose
• Compact Compressor Outlet: 3″ Hose
• Turbine Inlet: 3″ V-Band/T4 open/ T4 divided
• Water Ports: -6AN
• Oil Feed Fitting(-4AN 1.65mm (0.065″) Orifice) included
• Oil Drain: -12AN(O-Ring sealed Flange Kit Included)

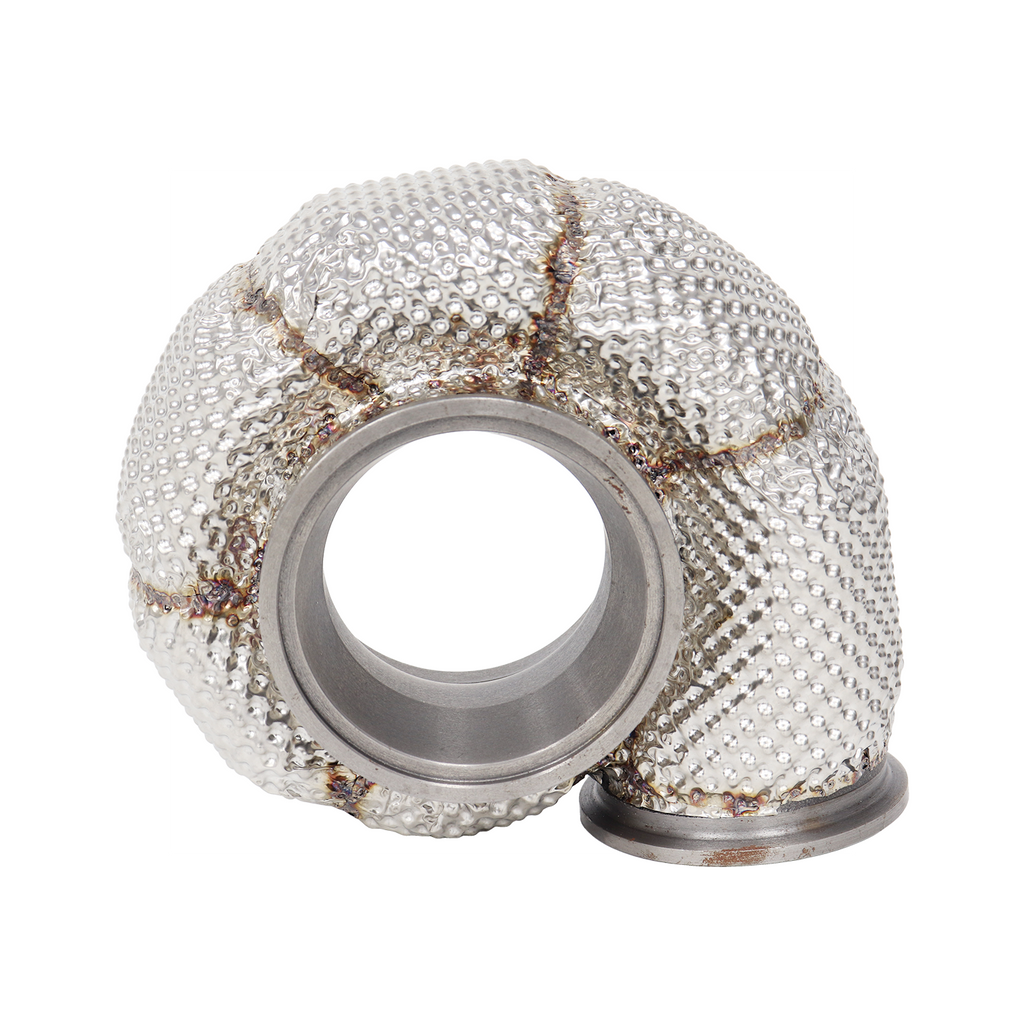

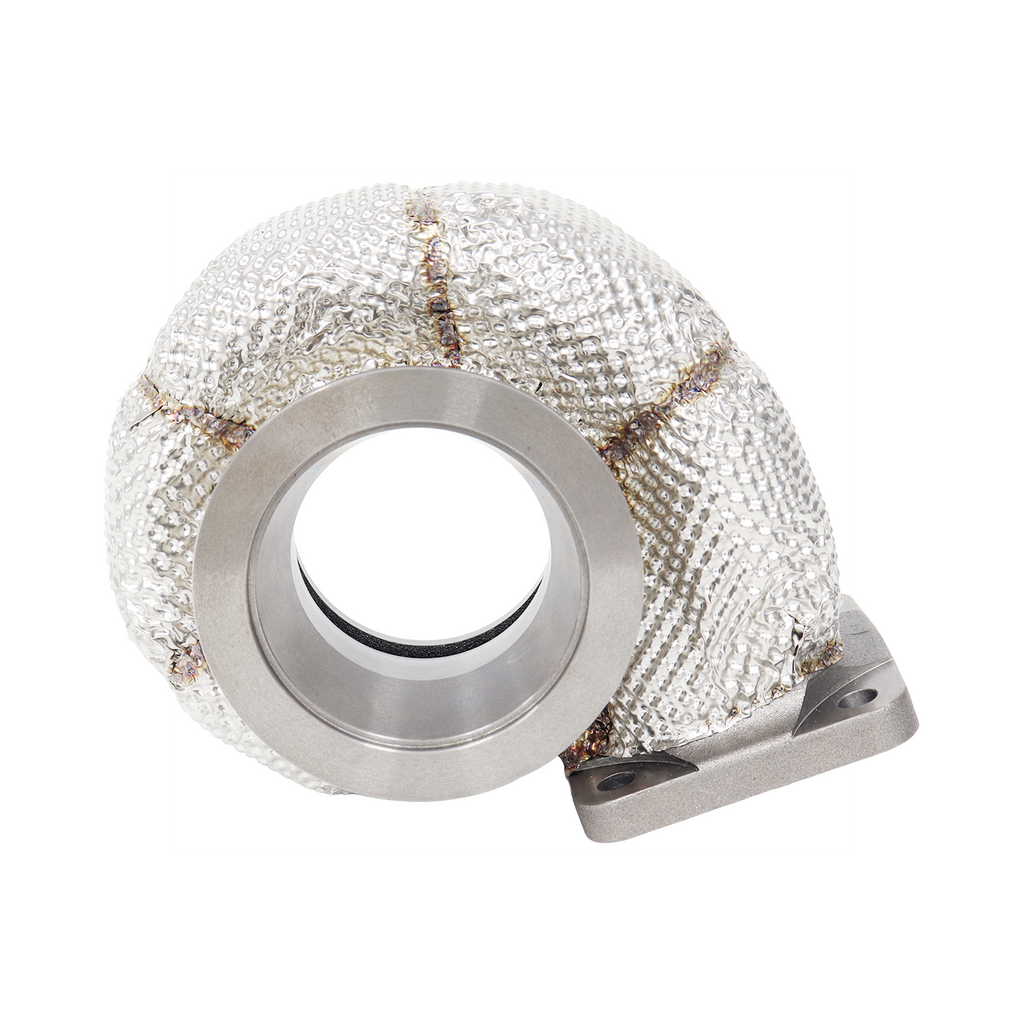

Stainless steel wrapped housing style

Pulsar offers Standard Housing and an extra-cost Stainless Steel Wrapped Housing style where applicable to the selected turbine housing. This external stainless covering is intended to help contain radiant heat at the turbine. The style selection applies to the housing chosen in the turbine housing menu.

Pulsar advises allowing 1–2 weeks for a wrapped housing if it is not available from stock. BBT can confirm availability and dispatch timing for the exact selected configuration.

A turbo selected without a turbine housing has no housing to wrap. Choose an eligible turbine housing with the wrapped style if a wrapped housing is required.

BBT can help confirm compressor-cover and turbine-housing choices, flange compatibility, wastegate arrangement and clearance around the wrapped turbine for your build. Send us your turbo and application details for a configuration review.

Current selectable options

• Compressor Housing Option: Standard
• Turbine Housing Option: With Out Turbine Housing, T4 Divided .95 A/R, T4 Divided 1.01 A/R, T4 Divided 1.15 A/R, T4 Divided 1.28 A/R, T4 Divided 1.44 A/R, Dual V Band 1.01 A/R, Dual V Band 1.15 A/R, Dual V Band 1.28 A/R, T4 Open 1.15 A/R
• Housing Style: Standard Housing, Stainless Steel Wrapped Housing
