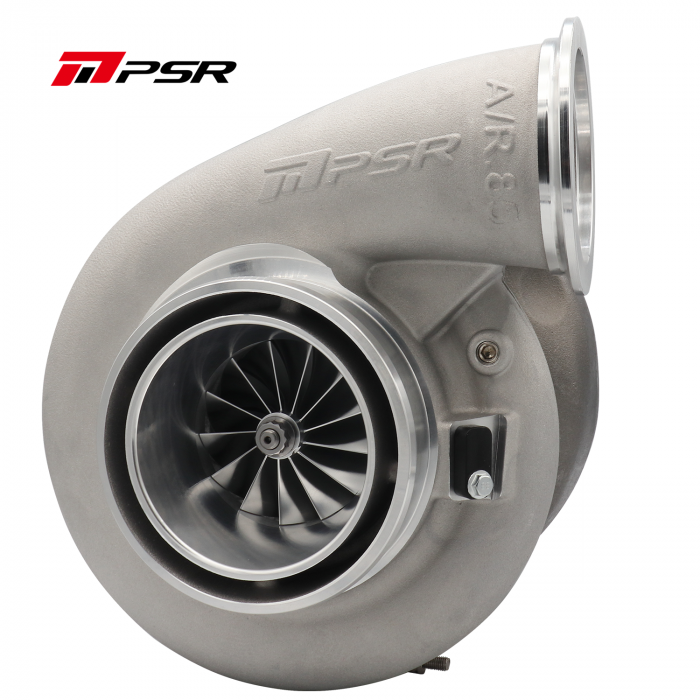

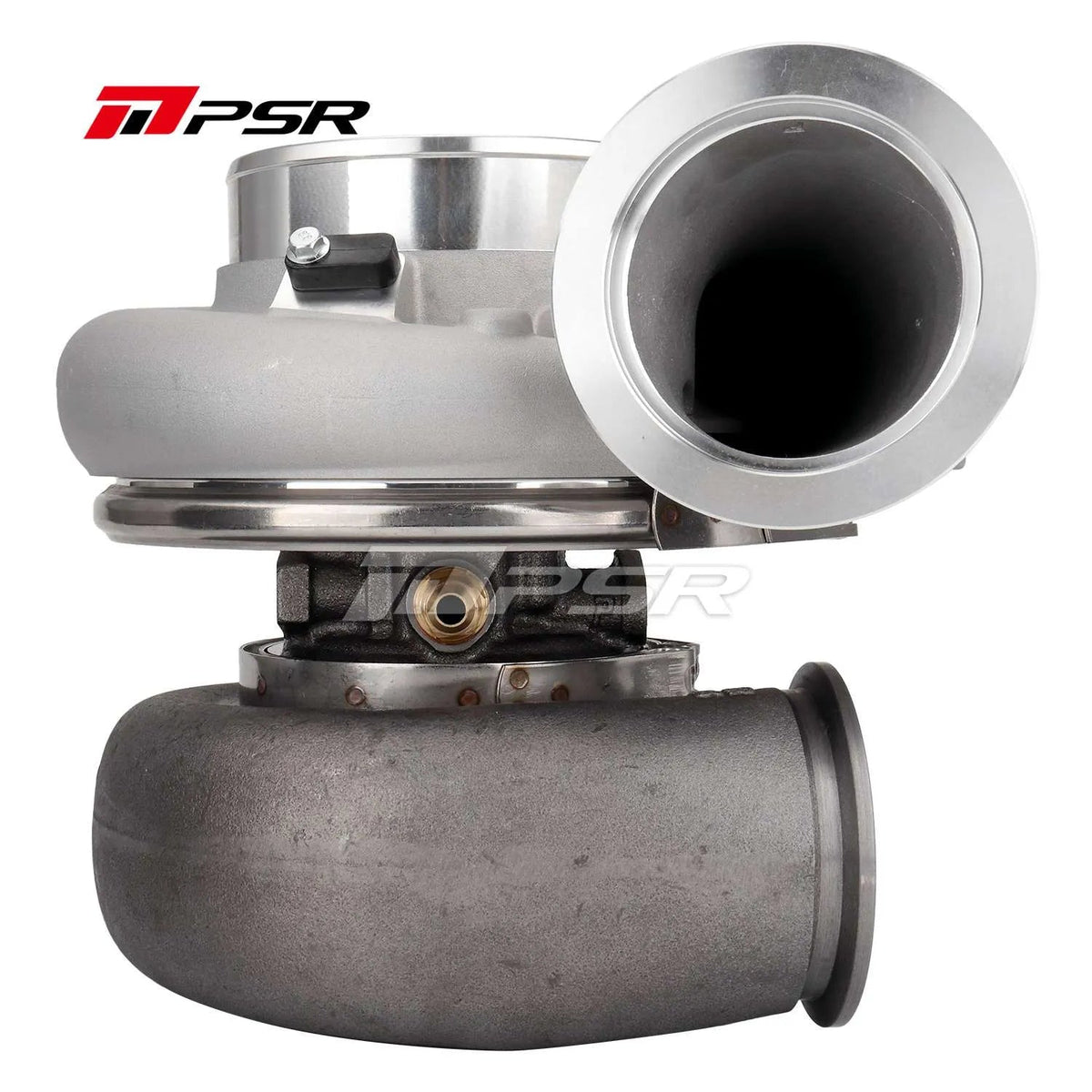

PSR 7782G 1500HP 77mm Dual Ball Bearing Turbo

PSR 7782G 1500HP 77mm Dual Ball Bearing Turbo from Pulsar Turbo Systems Australia. Select the exact configuration and view its corresponding price before adding to cart.

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion
• 13 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
• 9 Blade PTG-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
• Water fittings included with super core
• 8 Options in Turbine Housing

• Compressor Wheel: 76.6*109.2mm
• Turbine Wheel: 89*81.6mm
• Compressor Inlet: 5″ Hose
• Compressor Outlet: 3″ V-Band
• Turbine Inlet: 3″ V-Band/T4 open/ T4 divided
• Turbine Outlet: 3.5″ V-Band
• Water Ports: -6AN
• Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Restricted)
• Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
• Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp
• 8 Options in Turbine Housing: T4(Open) 1.15 A/R; T4(Divided) 1.01 A/R, 1.15 A/R, 1.28 A/R, 1.44 A/R; Dual v-band 1.01 A/R, 1.15 A/R and 1.28 A/R

Choosing the turbo configuration

This turbocharger is offered for a custom application. Check the selected compressor and turbine housing, inlet and outlet flanges, manifold clearance, oil and water connections and supporting intake and exhaust work for your build.

Current selectable options

• Turbine Housing Option: Without Turbine Housing, T4 1.15 Open, T4 1.01 Divided, T4 1.15 Divided, T4 1.28 Divided, T4 1.44 Divided, 1.01 Dual V Band, 1.15 Dual V band, 1.28 Dual V band
• Compressor Housing: Without Compressor Housing, Standard, T51 MOD
